How to Configure PDF Documents in e-addons PDF

This guide to e-addons PDF will help you choose the right generation mode, prepare a document template, configure PDF delivery after a visitor action, and verify the output before going live. We will look at two distinct plugin workflows: a button that exports a page and a form action that builds a personalized document from submission data.

e-addons PDF is useful when a site needs to generate a document from published content or from a visitor's response, rather than simply host a ready-made file. The focus is therefore not a decorative button, but the complete chain: the data source, a dedicated template, conversion rules, storage location, and a clear way to deliver the file to a user or staff member.

The product has two independent capabilities. Button PDF creates a file on click for the current page or a selected Elementor template. PDF Pro-Form Generator is added as an Elementor Pro form action and fills a document with field values. The two modes share only the final file extension: their source data, configuration order, risks, and validation steps are different.

When PDF Generation Actually Solves a Website Need

Before enabling a module, determine what document needs to be created and who will receive it. That may sound obvious, but this is where a common mistake happens: trying to use one setting for printing an article, sending a proposal, archiving a submission, and delivering an agreement. The result is a PDF filled with unnecessary page blocks, empty form fields, or links that lead somewhere other than the visitor expects.

The first workflow is exporting existing content. It works well for an instruction guide, event program, property listing, price list, article, report from a dynamic post, or a proposal prepared by an editor in Elementor. Clicking the button becomes an explicit user action: the file opens in the browser or downloads. The document should have its own layout. A full website page often includes navigation, pop-ups, forms, widgets, and promotional blocks that do not belong in a print-ready document.

The second workflow is a personalized document generated from a form. Use it when an applicant enters a name, requested service, order details, selected option, comment, or uploads a file, and the site must create a confirmation, estimate, questionnaire, record, or internal processing sheet. In this case, the PDF does not exist in advance: it is created after the form is submitted. Its contents must use the values from that specific submission rather than fixed page text.

Use Cases Where Button PDF Is Enough

The button mode is appropriate when many people need the same layout, but a standalone file is more convenient than a web page. For example, an education center may publish a course program, a manufacturer may provide a technical product specification, an agency may offer a service overview, or an editorial team may publish a print-friendly article. Elementor lets you create a dedicated template, add dynamic post fields, and avoid making users print the browser interface.

A separate template makes the output predictable. It has a defined width, a familiar sequence of blocks, a title, main content, tables, contact details, and, when needed, repeating headers and footers. The template does not have to look like the website's main page. In fact, PDFs usually work better with a calm layout free of animation, complex overlaps, and elements that depend on browser behavior.

Use Cases That Require PDF Pro-Form Generator

A form action is necessary when the document must be individual. In e-addons PDF, it is built from an Elementor template and can use dynamic values from a submitted form. The plugin supports its own dynamic tags for form fields and native form shortcodes, so the template author first creates the document structure and then places data in clear locations: a name, request number, selected plan, comment, uploaded-file image, or a list of completed fields.

In practice, the workflow looks like this: a visitor fills out a quote request, the form performs its normal required-field validation, the selected action creates a PDF, and the file can then be stored as a media item, attached to an email notification, or delivered to the visitor through a redirect. You do not need all of these methods at once. If the document is intended only for a manager, attaching it to a notification and testing email delivery is usually the better choice. If the visitor should receive a copy immediately, separately test how the browser opens or downloads the file.

The key difference: a button starts conversion of published content, while a form action uses a specific submission. Do not substitute one mode for the other: a button has no context for fields that were just completed, and a form has no reason to print the entire site.

Who the Plugin Suits and When to Choose Another Approach

e-addons PDF suits a WordPress site owner who already works in Elementor and is ready to build a PDF layout using the same visual tools. It is especially useful when the layout must use dynamic data from the current post or values from an Elementor Pro Form. A content manager can edit the document's text and structure in the editor rather than in a separate file-production system.

For developers and agencies, this approach is useful when documents need to be standardized across several sections of a site. Instead of duplicating the same design in a PDF editor, you can maintain a dedicated Elementor template and use dynamic fields. Before implementing it, however, review the actual data set, file access permissions, and requirements for storing personal information. Generating a PDF does not replace submission-handling rules.

The plugin is a weak choice if you need legally binding electronic signatures, complex interactive fields inside an existing PDF, intensive calculations based on external systems, or an exact reproduction of a highly animated page. The official documentation specifically warns that HTML-to-PDF conversion does not execute JavaScript, does not reproduce all browser CSS, and may not support some fonts and icons. In such cases, simplify the layout first or choose a specialized document-production workflow.

A Quick Decision Map Before You Start

How to match your task to an e-addons PDF mode

Required output	Main mode	Source	First check
Print version of a post or page	Button PDF	Current page or a dedicated template	Open the document from the public site
Catalog item with data from the current product or post	Button PDF	Elementor template with dynamic fields	Compare page data with the PDF
Confirmation for a personalized submission	PDF Pro-Form Generator	A template and values from a specific form	Submit a test request
Document for a staff member with a notification	PDF Pro-Form Generator	Form, email action, and PDF	Check the attachment in the mailbox

This decision point saves time in the next stage. Once the answer is clear, you can prepare the correct source material in advance instead of trying to fix the generator's behavior with styles alone. Next, we will look at what must be ready in WordPress and Elementor before enabling a specific mode.

What Makes Up a Finished Document

It helps to think of e-addons PDF not as a page printer, but as a combination of several components. The input is either a site post or a form submission. The plugin then selects the document body: the current page, simple HTML, or a dedicated Elementor template. It then applies page settings, styles, background, headers and footers, and the delivery method. At the end, the user sees a file, while the site can save it to the Media Library or attach it to a message if needed.

The most reliable part of this setup is a dedicated template. It separates the public page from the print version. A service page may include an interactive calculator, video, and a form, while the PDF needs only business details, a description, a work table, and terms. For a form, the template may retain the title, a customer-data block, a list of selected items, and an explanation of what happens next.

The next component is form-field identifiers. Elementor lets you assign custom IDs to fields, and the e-addons dynamic tag uses that technical name rather than the visitor-facing label. Therefore, finalize field IDs before designing the PDF template. If a field is named client_name today and renamed to name tomorrow, the document will stop inserting the expected value even though the form may still appear to work.

The final component is validation. A document is not ready simply because it looks good inside Elementor. You need to make a real test submission, open the resulting PDF in a standard viewer, check the filename, line wrapping, fields with long content, Cyrillic text, repeated headers and footers, and the actual delivery method. The following sections build this validation into every step rather than leaving it until the end of the project.

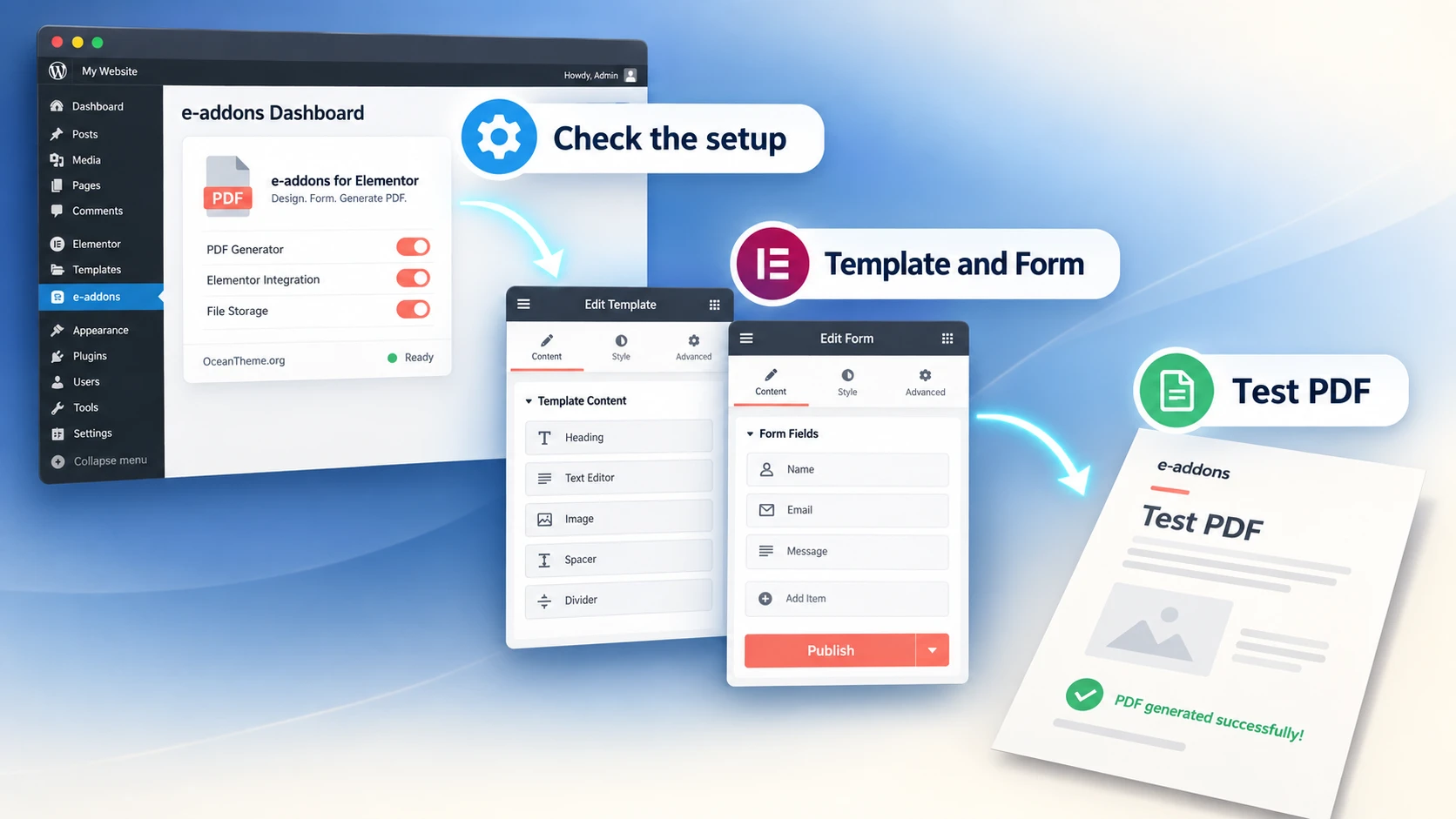

Preparing WordPress, Elementor, and a Test Environment

Preparing e-addons PDF involves more than installing a ZIP archive. The generator relies on WordPress, Elementor, and, for form workflows, Elementor Pro Form. Start by separating the technical minimum from editorial preparation. The technical minimum answers whether the module can be enabled and generate a file. Editorial preparation answers a different question: whether the file will contain the required data and look the way the recipient expects.

Start with a site copy or at least a test page. These changes affect files in the uploads directory, templates, and form actions. If you test everything on a live form, a staff member may receive several training attachments and a user may receive a link to a document containing placeholder data. It is safer to create a separate page, a test template, and a form with a neutral recipient address, then move the verified setup to the live section after confirmation.

What to Check Before Installation

• WordPress and Elementor availability. Both modes are designed to work with Elementor, and the official documentation identifies the form generator as an extension for Elementor Pro Form.
• The standard form workflow. Before adding PDF generation, make sure required fields are validated, success and error messages are visible, and the normal email action reaches a test mailbox.
• Write access to uploads. A PDF may be saved in the uploads directory or as a Media Library item, so the hosting environment and WordPress must be able to create the file and make it available through a link.
• The role of caching. If the form page uses aggressive caching, test submission in a real public browser window. The cache must not show users an old link or a stale output state.
• A filename plan. The name should be understandable, free of questionable characters, and should not attempt to contain the entire submission text. The documentation separately notes valid file-system characters.
• A realistic data set. Prepare two test submissions: one short and one long. The second helps reveal line overflow, wrapping in long comments, and table breaks.

Do not disable plugins or security mechanisms simply because the first test produces an error. Record the symptom first. For example, a form may show success while the attachment never arrives. That is different from a page returning an error on submission or a document failing to open through its link. Each situation has its own area to inspect: the form action, email delivery, uploads permissions, the template, or the conversion output.

Installing and Enabling the Module

After creating a restore point, install the available distribution in WordPress as usual and open the e-addons panel. The developer describes e-addons as a framework with a unified management area and separately enabled capabilities. This matters for maintenance: if the site needs only PDF functionality, there is no reason to activate other features in the suite. Fewer enabled modules mean clearer diagnostics and fewer places for site authors to search for a setting.

1. Open the e-addons item in the admin panel and locate the PDF capability status.
2. Enable the required module and save the panel state.
3. Open Elementor on a test page and confirm that the relevant widget or element is available for the button workflow, and that the PDF capability appears in the action list for a form workflow.
4. Create one temporary Elementor template with a title and a regular paragraph. Do not begin with a large branded letterhead.
5. Create your first PDF without dynamic fields. Its purpose is to confirm that the environment can generate a file before you make the template more complex.

If the element does not appear in Elementor, do not move on to styling or manually add technical snippets. First return to the e-addons panel, confirm that the required capability is enabled, and verify that the editor is open with the dependency set expected by the selected workflow.

The form mode requires an especially careful sequence. First build and save the form without PDF generation. Then assign every field a meaningful technical ID. Next create the PDF template. Only then add the generation action to Actions After Submit. This order preserves cause and effect: if the PDF is empty, it is easy to inspect the IDs and template; if the form does not submit, the issue is not hidden behind an additional action.

Your First Layout: Making a PDF Reliable During Conversion

The most common mistake when working with HTML-to-PDF is carrying the entire design language of a page into the document: animated blocks, complex carousels, layered background effects, custom-font icons, and scripts. The official e-addons documentation warns that JavaScript is unsupported, CSS is not fully reproduced, and some fonts and icons may behave differently. This is not a defect in a particular page; it is a characteristic of converting HTML into a print format.

A good PDF layout should therefore be designed as an independent document. Give it one clear title, a short subtitle, logical sections, tables with a sensible number of columns, and fields that remain visible when printed. Use images where they truly carry information, not as backgrounds behind text that may become unreadable. A limited palette and predictable spacing usually produce more reliable output than trying to recreate a complex website view pixel for pixel.

The Three Layers of a Template

It is useful to divide the layout into the body, repeating elements, and page settings. The body contains individual data: post content, an order line, form values, a table, and a comment. Headers and footers repeat on every page only when genuinely necessary: the page number, document title, or brief contact details. Page settings control size, orientation, margins, resolution, and text direction.

e-addons PDF provides placeholders for the total number of pages and the current page number in headers and footers. Use them only after the content has been split into pages consistently. If you build the design around page numbers first and then add long form fields, the headers and footers may remain in place while the document itself becomes difficult to use.

Text and Fonts

If the document needs Cyrillic text, verify it in the opened PDF rather than judging it by the editor preview. The documentation notes RTL support and support for custom Elementor fonts when TTF fonts are placed in the special mPDF directory structure. The practical conclusion is straightforward: use an available font, test with Cyrillic names, long words, and symbols, and add a custom font only when its necessity has been verified in the actual file.

Do not name font folders with arbitrary phrases or assume that spaces in a family name will be handled exactly as they are in a browser. The documentation recommends a lowercase name without spaces because of converter limitations. A test site copy makes this quick to verify: one paragraph, one table, one heading, and two languages provide more information than a finished multipage letterhead.

Long Data and Tables

A form template must handle more than "Jane" and "New York." It needs to accommodate a full company name, a multi-sentence comment, a list of items, an uploaded signature, or an address. Do not give an important text block a fixed visual height. Leave room in tables and do not place too many fields on one row. When a line needs to wrap, it is better to provide room in the document body than to reduce the font until it becomes unreadable.

At this stage, you do not need a finished branded version. The goal is to create a resilient training layout and confirm that the plugin produces the correct PDF. Only then does it make sense to add a background, watermark, password, dedicated filename, or a specific delivery option. This sequence significantly reduces the number of unclear errors.

Basic Validation Before Advanced Settings

Save the test template, open the page where you will trigger PDF generation, and perform a simple generation. At this early stage, focus not on appearance but on six observable signs: the file is created, opens without an error, has the expected name, matches the template, displays Cyrillic text correctly, and a second run does not break the first output.

If everything works at this step, save a short record of the initial configuration: which template is selected, which conversion mode is used, what the file is called, and where the action is triggered. This is your rollback point. If a setting becomes questionable, such as adding global CSS or changing the storage location, you can return to a working state without rebuilding the entire document.

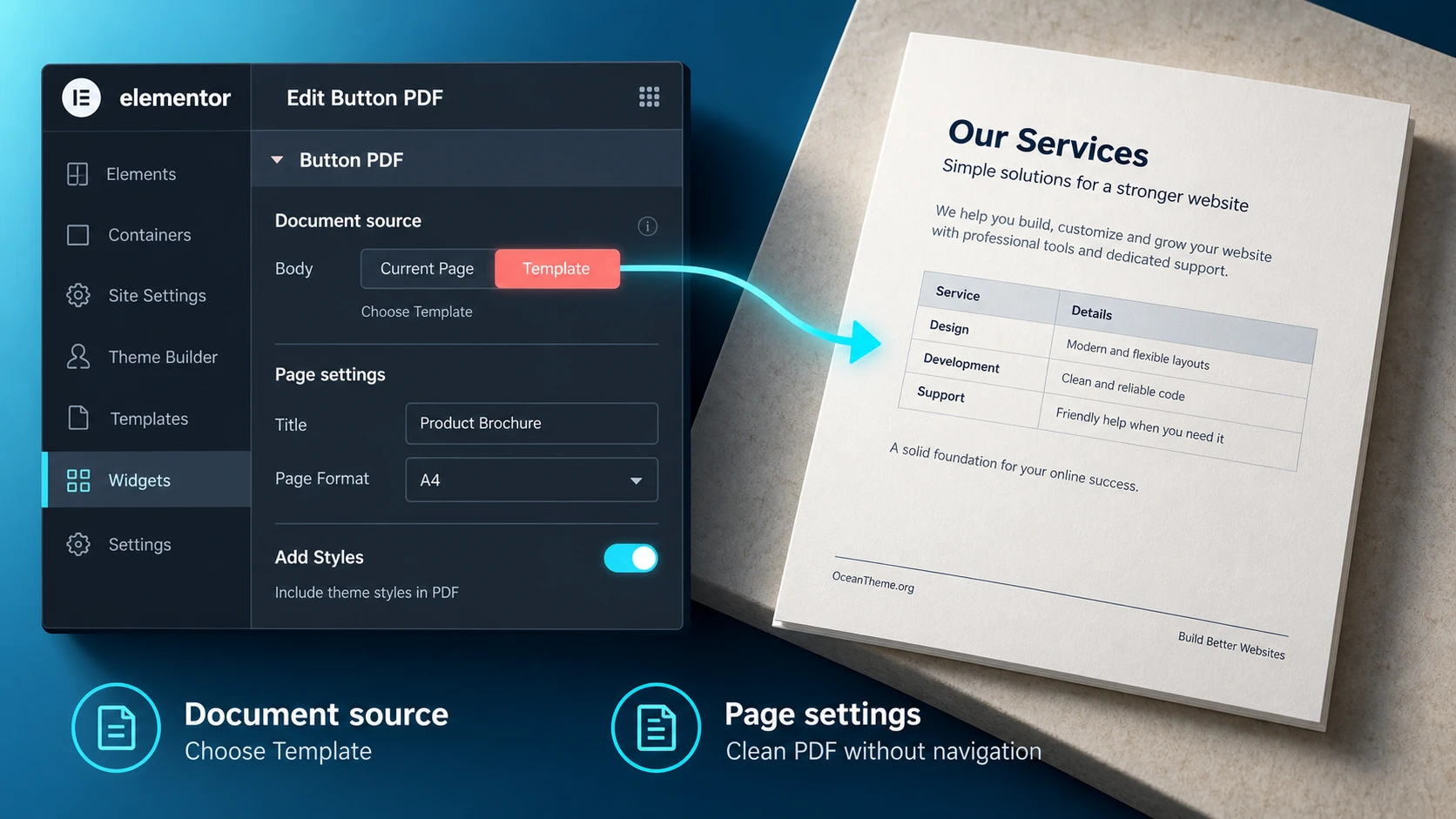

Configuring Button PDF for a Page, Post, or Dedicated Template

Button PDF solves a task that is simple for the visitor but not entirely simple for the site author: a click should produce a clear print-ready version, not a random snapshot of the current browser window. Add the PDF button to a test page in Elementor and first configure it as a normal interface element: text, alignment, size, and, if needed, an icon. This affects only how the user triggers the action. The settings below determine what document is created.

Do not hide the button in the footer or give it an ambiguous name such as "Get." The user should understand the outcome before clicking: "Download Course Program PDF," "Open Print Version," or "Get Specification." The label does not need to repeat the internal template name. Its job is to explain the action and format, not the plugin's internal setup.

Choose the Document Body Source

In PDF Options, the key choice is the Body setting. You can use Current Page or Template. The current page is convenient for a quick test and simple informational material. However, the official documentation identifies a dedicated Elementor template as the preferred solution when you need a controlled layout with dynamic post data. In practical terms, use the current page only when the public page is already close to a print-ready document.

For most real-world workflows, choosing Template is the more sensible option. Create a dedicated template with one column, a prominent heading, logically ordered data, and as few decorative dependencies as possible. If the PDF must display the current post's content, insert Elementor dynamic fields into this template. This lets one layout serve a catalog, knowledge base, or list of services without copying text into dozens of documents.

Do not combine sales-page functions and document functions in one template. Does the PDF need a subscription pop-up, animated gallery, testimonial slider, or interactive calculator? Usually not. A print version benefits from selectivity: less external noise, more structured content, and easier validation.

Configure the Filename and Opening Behavior

The Title field sets the generated filename. It can be static or dynamic through a Dynamic Tag. A good name briefly answers two questions: what it is and what it relates to. For example, "course-program" for a general file or "specification-[current-title]" for a printable item page. Do not use data in the name that may contain prohibited characters, lengthy phrases, or personal details if the file will be available through a link.

Next, choose the expected browser behavior. Opening in a new window is useful when the visitor wants to review the document first. Force Download is appropriate when the output should be saved as a file rather than opened in an embedded viewer. This is not a cosmetic detail: different browsers can display the same PDF differently, and forced downloading reduces ambiguity in workflows where the user needs to keep the file.

The Add nofollow setting applies to the link and may be appropriate when the PDF should not become a separate target for search crawling. Do not enable it by habit. First determine whether the document itself has independent search and publishing value. For personal or supporting files, predictable delivery is usually more important than indexing.

Choose the Converter Deliberately

e-addons PDF offers two options: mPDF and Browser. The documentation describes mPDF as an option with strong CSS compatibility and language support, while Browser uses the visitor's browser, such as Chrome or Firefox. This is not a setting that is simply "faster" or "better" for every site. The choice affects where conversion actually occurs and what differences the user may see.

For a controlled server-generated document, start with mPDF and a simple template. It suits a situation where the site must deliver the same document without relying on a visitor's particular browser. Browser may work for output intended for printing from a client browser, but it should be tested in at least two real browsers. Do not draw conclusions from the editor preview: open the public page, trigger the button, and compare the generated file.

If one converter produces an unsatisfactory output, do not change every setting at once. First save a copy of the template and test using the same source content. Otherwise, you cannot tell whether the improvement came from changing the converter, editing CSS, or accidentally shortening the text. The diagnostic order should always be the same: a constant template, one changed setting, a new file, and comparison.

Page Settings, Background, and Page Breaks

The Page Format section sets paper size, orientation, margins, DPI, and RTL mode if the document uses a right-to-left language. Start with the most familiar paper size, portrait orientation, and moderate margins. Landscape orientation makes sense for wide tables, technical specifications, or schedules, but not for regular text. If the table still does not fit, rebuild it rather than trying to compensate by shrinking the page.

The Sections as Pages option places each section on a new page. It is useful when the Elementor structure genuinely maps to document pages: a cover page, terms block, or appendix. Do not enable it on a long page without testing. Small sections can turn into empty or nearly empty pages. Review the PDF with real content first, then decide whether forced page breaks are needed.

A background color or image applies across the page. A background can support a branded letterhead, but it should not reduce print quality or readability. Keep text contrast sufficient, use light graphics, and check not only the screen but also a printout or viewing on a typical laptop. A full-page background image makes sense only when it does not compete with the document data.

Headers and Footers Without Surprises

e-addons PDF headers and footers can contain repeated content. In a multipage document, add a short title, the current page number, and total page count using the available placeholders {PAGENO} and {nb}. Do not turn the header or footer into a second promotional page: its role is to help people navigate after printing or forwarding the file.

Create a separate test in which the PDF body spans two or three pages. Check whether the utility line repeats, whether it overlaps the text, and whether the number changes correctly. Only a multipage version exposes errors that cannot be seen in the first short file.

Styles, Fonts, and Layout Details

The Add Styles setting lets you include Elementor styles alone or Elementor together with the theme. Start with the narrower option. It reduces the chance that theme rules will alter spacing, colors, or dimensions in the print file. If an essential element depends on theme styles, enable the broader option and compare the result again. Your goal is not to include the maximum amount of styling, but to provide the specific layout with exactly the rules it needs to remain correct.

Custom Elementor fonts can be used in PDFs when necessary, but only after verifying the actual TTF file and the correct font-directory structure described by the developer. Treat icons, decorative symbols, and script-rendered elements as candidates for simplification. Sometimes replacing them with a plain text label is more reliable than spending time diagnosing an empty rectangle in a PDF.

File Availability and Secure Links

The documentation offers Secure Link mode for cases where hosting blocks direct access to plugin files. Enable it only for a confirmed symptom: generation succeeds, but the direct file link returns an access error or does not open from the public site. After enabling it, repeat the test in a browser window without authentication. An administrator may see the file because of their session while a visitor cannot, so testing in a normal private window is essential.

For a project where users need a printable version of general material, also consider the link lifetime and whether the URL exposes unnecessary internal information. e-addons PDF handles document delivery, but access rules, backups, and retention policy remain the responsibility of the site and its owner.

Example: A Printable Service Sheet Without Page Elements

Imagine a service page with several sections, testimonials, video, and an inquiry form. A visitor needs a compact specification. The goal is to provide a PDF with the service name, description, scope of work, timeline table, and contact block, without copying the page's interactive parts into the file.

1. Create an Elementor template called "Service Specification" with a heading, the current post's dynamic title, a description field, and a table.
2. Add static headings to the template and dynamic fields wherever information changes from one service to another.
3. On the public page, add Button PDF and select Template in Body, choosing the template you created.
4. Set a clear dynamic filename, portrait orientation, appropriate margins, and initially disable unnecessary theme styles.
5. Open the page as a regular visitor, click the button, check the filename, and compare four key lines with the site post.

The expected outcome is a PDF containing information for the current service only, with no form, menu, or animation. If the file instead displays fixed text from the test template, check the dynamic field bindings. If too much unnecessary content is carried over, make sure Template is selected instead of Current Page. If a table overflows its boundaries, correct the table structure and template spacing rather than hiding the issue by shrinking the entire document.

PDF Pro-Form Generator: A Document Built From Elementor Form Data

The form mode revolves around the moment of submission. A visitor completes a form, Elementor collects field values, and PDF Pro-Form Generator accesses those values to create a document according to the configured rules. This makes the mode useful for confirmations, applications, estimate sheets, questionnaires, agreement drafts, and internal assignments. For that reason, a good-looking template alone is not enough: define in advance which data is required, what happens when a field is empty, and who will see the output.

The official documentation describes PDF Pro-Form Generator as a custom e-addons action for Elementor forms. It works with an Elementor Template and dynamic form data, while the generated PDF can be saved as a Media item or used as an email attachment. Read this literally: the generator extends the Actions After Submit chain; it does not replace the form itself, its validation, or basic email actions.

Design the Data Before the Appearance

Open the form and create a short field map. For every field, record the visible label, technical ID, value type, whether it is required, and its location in the PDF. For example: "Name" - client_name - text - required - recipient heading; "Service Type" - service_type - select - specification line; "Comment" - brief - multiline text - separate block. This map may seem bureaucratic only until the first form revision. After that, it prevents guesswork about why the document inserts the wrong data.

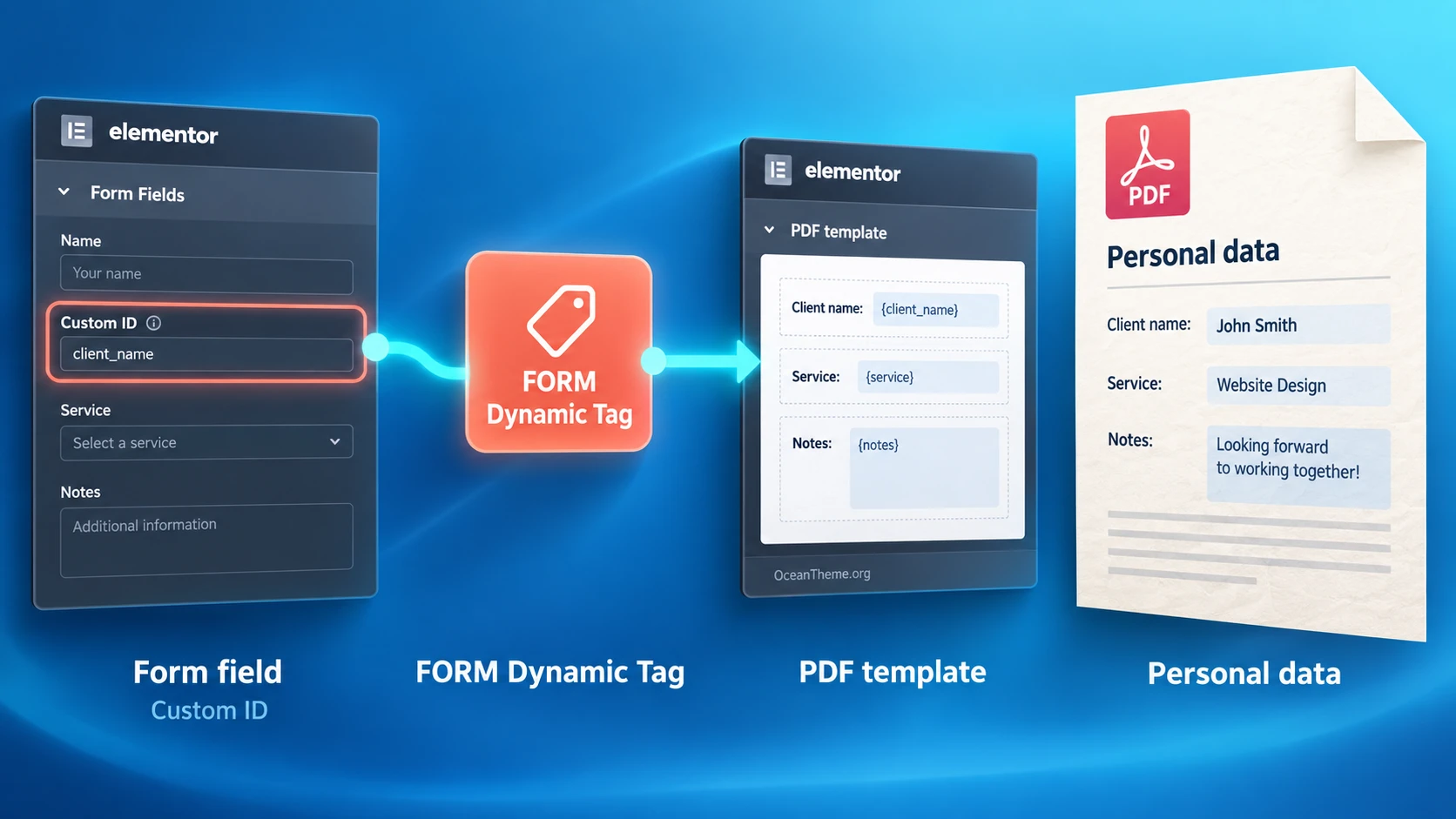

An Elementor Form field has an ID, and the e-addons FORM Dynamic Tag gets its value through the Custom ID in the field's advanced settings. That means the visible label is not the only thing that matters. If two fields are both called "Phone" in different form steps but have different IDs, the PDF must retrieve each value from the correct technical source. Do not use spaces, arbitrary renaming, or duplicate IDs for different meanings.

Decide immediately how the document should handle an optional field. An empty line after the label "Comment:" looks worse than omitting the block or showing a clear message such as "Not provided." If the current template version does not use conditional blocks, at least place infrequently used data near the end and do not make it a critical part of the PDF's top section.

Create a Template With Dynamic Fields

In Template mode, the PDF takes its document body from the selected Elementor template. First create the document structure: a confirmation heading, a short purpose line, a table with primary data, a comment block, and an informational footer. Then add the FORM Dynamic Tag to the appropriate widget. The documentation describes multiple return options for a field: its value, the selected option label, field label, raw value, placeholder, type, and, for an uploaded image, Media. Choose the option that makes sense for the document.

For example, a visitor may see a polished service label such as "Express Review," while the technical option value is express. A commercial document usually needs the label rather than the internal code. For a phone number and name, the standard value is generally sufficient. For an image or signature uploaded through a form, verify that the PDF inserts the media object itself rather than a text path.

If the document needs to display nearly all completed fields without manual markup, you can use the supported full-field-list shortcodes. The documentation distinguishes [all-fields], a version without empty fields, and [e-fields] along with its no-empty-values version, which outputs labels and values in a correct format. This is a useful fallback for an internal processing sheet, but for a document received by a client, manually building a clear structure is usually better.

Add the Action in the Right Order

In the form editor, open Content and the Actions After Submit section. Elementor creates separate configuration panels for selected actions, so add the PDF action first, then confirm that the form still includes the required basic actions. If you send a notification to a staff member, retain or add Email. If the visitor should go to a thank-you page, configure Redirect after confirming that the PDF is generated correctly.

e-addons lets you extend this chain with PDF generation. Do not treat action order as a minor detail: it affects which parts of the workflow you can trace when an error occurs. For testing, begin with PDF and one clear email action. Once the file is created reliably and reaches the intended destination, add a second email, redirect, or other Elementor actions only when they are justified.

In PDF Pro-Form Generator settings, specify Name, Folder, and Body. Name is the generated filename. Folder is set relative to the uploads directory, which is convenient for organization but requires discipline: the folder should not become a way to hide documents from maintenance. Decide in advance whether you will need the files later, and do not keep test documents containing personal data longer than necessary.

HTML or Template

Body can be simple HTML entered through the visual editor or a separate template. HTML works for a quick confirmation with just a few fields. It is easier for the first technical test because it has fewer nested elements. For a multipage, branded, or reusable document, however, choose Template. The content author can then see the actual structure in Elementor rather than maintaining a long markup fragment in one action setting.

Start with a minimal document: "Request Received," name, email, and selected service. Submit it. Then add the comment, table, logo, header or footer, and remaining fields. Adding one element at a time makes quick diagnostics possible if the converter handles a specific block incorrectly.

Where the Finished PDF Should Go

The form generator has three separate output paths that should not be confused. The first is Save PDF on media. The file is saved as an item in the WordPress Media Library, where it can receive a title and description. This is useful if a staff member needs to find the document later, but you must assess retention and access permissions. The second is Email PDF Attachment. When Email or Advanced Email is present in form actions, the created PDF is automatically added as an attachment to outgoing messages. The third is Redirect to PDF, where the visitor is taken to the file URL after submission and the browser opens or downloads the document.

Choose one primary path first, and consider combinations only afterward. For an internal request sent to a manager, an attachment is often enough. For visitor confirmation, emailing a copy may be appropriate, but then email delivery and personal-data content need additional testing. Redirecting to a PDF is convenient for immediate delivery, but it must be tested as a regular visitor rather than only in an admin session.

Do not automatically save PDFs to the Media Library just because the option exists. If the site processes customer data, discuss retention periods, editor access, and a process for deleting test files with the site owner in advance. The plugin helps create a document, but it does not define the policy for handling it.

Page Settings for a Form

In the PDF Page block, set size, orientation, margins, and DPI as deliberately as you would for button mode. Forms introduce one more factor: data length is unpredictable. Larger margins are usually safer than decorative density. If an application may span two pages, add a header or footer with the document title and page number, but do not overload it with personal data.

Backgrounds, text watermarks, background images, and passwords are available as separate features. A watermark can indicate "Draft" or an internal document status, but it must not obscure field values. A password should not be treated as a universal security solution: you still need to decide how to provide it to the recipient and whether that protection is needed at all. Enable it for a clear requirement, not as a default settings decoration.

Real Example: A Request for a Personalized Proposal

The goal is for a visitor to receive confirmation after completing a form, while a manager receives an email with a PDF containing the name, selected service, budget range, and comment. Preparation: the Elementor Pro Form already sends a simple email, and the test template has room for four values. The fields use the IDs client_name, service_type, budget_range, and brief.

1. In the template, create an "Inquiry Details" block and insert a value for each technical ID through the FORM Dynamic Tag.
2. For the service option, output the clear label if the internal value differs from the text selected by the visitor.
3. In the form, add PDF Pro-Form Generator to Actions After Submit, select Template, and specify a filename without personal information in the URL.
4. Keep Email among the actions, enable the PDF attachment, and specify a staff test address.
5. Submit a short test request, then a long request with a multi-paragraph comment.

Verification has two parts. The browser should display the normal form success message without an error. The mailbox should contain an email with an attachment, and the file should contain values from the submitted request, not data from the previous test or empty spaces instead of fields. If the file is generated but the email does not arrive, first compare its presence in the selected storage location and the Email settings instead of rewriting the PDF template.

Key takeaway: a form-generated PDF is reliable when the data order is known before the design work begins. Technical IDs are the bridge between the form and the template, while the chosen delivery method is tested separately from the visual output.

How Templates, Data, and Settings Become the Final Output

This section helps you avoid treating a PDF as a black box. When a file differs from the browser page, it is useful to understand where the difference occurred. e-addons PDF has an observable chain: the source provides content, the selected document body defines its structure, conversion settings define pages and presentation, and the chosen delivery action makes the file available to a user or staff member.

In the button workflow, the input is the current page or a dedicated Elementor template. If Template is selected, it receives the context of the current post and can display dynamic fields. The selected converter then turns HTML into a PDF. At the end, the button opens the file in a new window or starts a download. In the form workflow, the input is a specific Elementor Form submission. A dynamic tag or shortcode retrieves field values by ID, the template places them in the document, and the action can save the file, attach it to an email, or deliver it through a redirect.

This model explains many symptoms. An empty value in a form PDF should usually be investigated in the "field - ID - dynamic tag" part of the chain, not in page settings. An extra menu in a button PDF indicates that Current Page is selected or that the template includes the wrong block. Incorrect text wrapping is often related to the template HTML and CSS or converter capabilities, not to the button label.

The Button Mode Chain

1. Source: a visitor opens the page or post containing Button PDF.
2. Rule: Body uses Current Page or the selected Template; when a template is used, dynamic fields retrieve information from the current context.
3. Conversion: mPDF or Browser creates a PDF using the configured page size, margins, styles, and other settings.
4. Output: the browser opens a new document or saves it as a download, depending on button settings.
5. Check: compare the title, two dynamic lines, table, and page breaks with the public post.

The limitation of this chain is that an HTML converter does not become a full browser engine that supports every interactive feature. Script-based animation, carousels, and some complex CSS effects cannot be guaranteed to produce the same output. The best change at this point is not always technical. It is often editorial: replace an interactive visualization with a table, prepare a simple image-and-caption block, or move essential text into a standard widget.

The Form Generation Chain

1. Source: a visitor completes fields and submits an Elementor Form.
2. Rule: PDF Pro-Form Generator receives the form event, and the FORM Dynamic Tag retrieves the required Custom ID.
3. State change: the template inserts values, creates the document, and applies the page format, background, headers and footers, and other enabled settings.
4. Output: the file is saved as Media, attached to Email, or becomes the Redirect target, depending on the selected options.
5. Check: compare the test form, generated PDF, and email for one submission without mixing data from separate tests.

The most important limitation here involves accuracy and access. The PDF reflects what the form received at the moment it was submitted. An optional field may be empty. If a user enters a long text, the document must allow it to wrap. If a file is saved in a public location, do not include more personal data than the workflow requires. These questions should be resolved before choosing a background or watermark.

A Form Layout That Handles Long Responses

A personalized document is almost always more complex than a printable page because the site author does not control all of its content. A person may enter a long company name, write several paragraphs, or upload an image. A form template should therefore be designed not as an attractive business card, but as a readable document across varying data lengths.

Build a Clear Visual Hierarchy

Place the information that quickly explains the purpose in the first part of the document: inquiry type, recipient name, creation date if it is genuinely required by the business process, and a short status. Then place the main fields. A two-column table works well for short values: label and value. A separate full-width block is better for a comment, task description, or free-form text. Reserve the end for supporting information: who will respond, what happens next, and which data is used only for contact purposes.

Do not format every field as a prominent card. In a PDF, cards can create unnecessary borders and gaps, especially on the second page. Section headings, subtle dividers, and clear labels are more resilient. If you need to emphasize a required fact, use more prominent text or a separate line rather than trying to place it over a background image.

Working With Images and Uploads

FORM Dynamic Tag can return an uploaded image file as Media, which may be useful for a signature, scan, or sketch. Before enabling such a block, check the image size and an appropriate scale in the PDF. Do not insert the original at full size, do not expect a landscape photo to become portrait automatically, and do not make an image the only carrier of important information. If a file is attached to the form but is not intended for display in the document, it is better to keep it in the processing workflow and show only a note that an attachment exists in the PDF.

For select fields, preserve the human-readable value. The internal code may be useful for integration, but staff members and clients generally need the option label. Test multiple selections separately: the list must remain readable rather than becoming a long technical string.

A Test Case for Long Text

Create a test request where the company name has several words, the comment spans several paragraphs, and the selected option has a long label. Submit it, then inspect three areas: the document does not cut off the beginning or end of the text, a page break does not leave an orphaned heading without content, and the header or footer does not overlap the comment. If any of these signs fails, first reduce the block's design complexity and give it more room, then test again.

Practical Workflow: Submission Confirmation and a Document for the Manager

Consider a complete workflow for a studio that receives project inquiries. A visitor selects a task type, provides contact details, an estimated budget, and a description of the request. The visitor needs to see that the inquiry was received. The manager needs a document that can quickly be attached to an internal task card and discussed without retyping data from the email.

Goal and Preparation

The goal is to create one PDF for every submission. The document must contain the inquiry title, contact person, email, selected service type, budget range, and full comment. Before starting, the form's Email action has already been tested, a simple one- or two-page Elementor Template has been created as needed, and fields have stable IDs. A separate test mailbox receives notifications, so the work does not affect staff.

Build It Step by Step

1. Assign meaningful IDs in the form. For example: contact_name, contact_email, project_type, budget, project_notes.
2. In the template, create a "New Inquiry" heading and a primary data block. Use a dynamic tag for each value that references the correct ID.
3. Below the primary data, add a separate "Project Description" block. It must remain correct for both empty and long comments.
4. Add PDF Pro-Form Generator to Actions After Submit in the form, select the prepared Template, and set a safe filename and appropriate page margins.
5. Keep Email in the actions and enable the PDF attachment. If only the manager needs the document, do not configure automatic file delivery to the visitor.
6. Make two test submissions with different values. Open both PDFs and confirm that each document contains its own data.

Validation and a Common Pitfall

A successful form page does not yet prove successful generation. Open the attachment, compare values with the submitted form, check the filename, completeness of long text, page sequence, and font readability. Then submit the form again in a normal browser window where you are not signed in to WordPress. This separates administrator permissions from the visitor experience.

The key detail is the coexistence of Email and PDF. If the email arrives without an attachment but the PDF is saved in Media, the generator completed its part and the problem is more likely in the attachment option or email configuration. If the attachment exists but its fields are empty, analyze IDs and dynamic tags. This separated approach prevents hours of changes to a layer that is already working.

Practical principle: first prove with a test submission that form data reaches the template, then prove that the finished file reaches the recipient. These are two separate checks.

Safe Improvements Without Editing the Core

For e-addons PDF, the most useful improvement is not custom code but template and workflow discipline. The documentation does not justify inventing custom hooks or changing plugin files, so do not edit the WordPress, Elementor, or e-addons core for cosmetic reasons. Use the template's own settings, standard dynamic tags, and form action instead.

If you need to make a print document easier to read, create a dedicated Template and apply its styles through Elementor. This approach is reversible: you can return to the previous template version without touching the public page. For the first change, choose one clear goal: increase table spacing, align a heading, add a subtle background, or remove a decorative block. Save PDFs before and after, compare them in the same viewer, and roll back the change if it worsens wrapping or contrast.

If cache compatibility matters, begin with observation rather than guessing at exclusions. Open the public page in a private window, submit a test form, repeat the action with changed data, and confirm that the new document does not contain old values. Only when cache influence on a specific URL or action is confirmed should you configure an exclusion in the caching solution you use, following its documentation.

Verifying the Output: File, Data, Delivery, and Access

PDF validation should be part of configuration, not a final formality. A document may be created successfully but receive the wrong name. A template may look good but lose a long comment. An email may arrive without an attachment. A button may open a file for an administrator but return an error for a visitor. If everything is checked with a single statement such as "it works," these differences will remain unnoticed until the first real submission.

For e-addons PDF, it helps to divide validation into four layers: content, layout, delivery, and maintenance. The first layer checks whether the correct data reached the PDF. The second checks whether wrapping, fonts, pages, and background remain intact. The third checks whether the intended recipient receives the file. The fourth checks whether the setup leaves behind unnecessary documents, unclear names, or unmanaged access.

Checking a Button-Generated Document

Open the page configured with Button PDF in a public browser window. Click the button and note exactly what happens: the file opens in a new window, a download begins, or nothing changes. Then save the file locally and compare it with the source using predefined points. Do not try to inspect the entire document visually in one pass. Select the title, one dynamic block, table, image, header or footer, and last page.

If you use Current Page, separately confirm that unwanted public-site elements are not included in the PDF. If you use Template, verify that the document takes data from the current post. When working with a catalog, open two different items one after another. This rules out the error where a template looks good but always displays one test post.

Checking a Document After Form Submission

For a form, prepare a set of three submissions. The first includes only required fields. The second includes a long comment and a long selected-option label. The third checks an optional field, image upload, or another special data type used in your workflow. Submit them one at a time, save the resulting PDFs under neutral names, and compare them with the source values.

After every submission, check the form state, the email, and the file. Ideally, maintain a small verification table: test number, field name, expected value, actual value, delivery method, and outcome. This record is more useful than an impressive screenshot because you can repeat the test a week later after updating Elementor, the theme, or the PDF module.

Pre-Publication Checklist

What to verify before enabling PDF on a live page

Area	Specific check	Expected sign	What to do if it differs
Data source	Compare form fields or the current post with the PDF	The document contains only values from the current test	Check field IDs, Dynamic Tag, and the selected Template
Layout	Open a short and a long document	Text is not cut off; pages and headers and footers are readable	Simplify the block, give text more room, review CSS
Font	Check Cyrillic text, symbols, and numbers	No empty rectangles or substituted characters	Check the applied font and converter support
Delivery	Trigger the action without authentication	The button opens or downloads the file according to settings	Check Secure Link, file permissions, and cache
Email	Open the test recipient's email	The attachment exists and matches the current request	Check Email in Actions After Submit and the attachment option
Storage	Check Media and the uploads folder	Files are located only where the workflow expects them	Review Media saving, filename, and test-cleanup process

After completing the checklist, run a final test on a copy of the real page. Do not use only a technical test form if the live page has a different style set, cache, or display conditions. At the same time, do not send dozens of training documents to live addresses. One agreed test recipient and a predefined testing period are sufficient.

Performance, Indexing, and Storage Without False Promises

PDF generation adds processing when a user clicks a button or submits a form. How noticeable this is depends on template size, images, fonts, hosting load, and the selected converter. Instead of promising that it "does not affect speed," measure your own workflow. Open the page before enabling the feature, perform several test generations, observe response time, and repeat after adding a heavy background or large image.

The most accessible way to reduce risk is to simplify the document. Remove unnecessary animation, avoid duplicating large images, and do not use dozens of nested containers for a single background. This benefits more than the converter: recipients will find it easier to open and forward a compact document. If a print-version PDF is publicly available, confirm that it does not contain data missing from the public page.

What to Do About Search Visibility

A PDF can be a valuable standalone resource, but that does not make every automatically generated copy useful for search. Button PDF includes the Add nofollow option, which applies to the link. Make the decision based on the document's purpose. For a separate guide or specification, making the file accessible and giving it a clear name may be useful. For a supporting document, personal submission, or near-duplicate page version, avoiding an unnecessary public path is more important.

Do not try to solve SEO with one button. First determine whether people need the file, whether it has independent content, whether it creates a duplicate, and whether it will be updated when the page changes. If the answer is unclear, it is better to keep the PDF as a visitor tool rather than build a separate indexing strategy around it.

Personal Data and Passwords

Password protection is available in both modes described here, but by itself it does not answer every security question. The password must be delivered to the recipient through a separate channel or through a secure access process. If the file arrives as an attachment, consider who can access the mailbox. If it is saved in Media, check who can access the links and whether training documents containing real data remain there.

Minimum safe practice consists of three actions: use test data on a test page, do not place unnecessary personal details in the filename, and establish a process for deleting test materials in advance. For live submissions, agree whether the document should be stored on the site and for how long. This part is not configured through a single e-addons PDF checkbox, but it affects how safely the solution is operated.

Combining It With Standard Elementor Form Actions

The plugin is particularly useful when combined with standard Elementor Form actions. In Actions After Submit, Elementor can collect submissions, send Email, perform Redirect, and trigger other available actions. A practical author workflow for an inquiry looks like this: the form validates fields, e-addons creates a personalized PDF, Email sends the attachment to a staff member, and Redirect takes the visitor to a standard thank-you page. This is not a claim of a separate official integration among all services, but a sequential use of actions visible in the form settings.

The implementation order matters. Configure the form and Email first, then add PDF, then add Redirect if needed. During validation, confirm that the thank-you message does not hide a generation error and that the redirect does not begin before the file is available. If diagnostics become more difficult after adding Redirect, temporarily leave only PDF and Email, confirm that they work, and then restore the redirect.

Rolling Back a Questionable Change

Any change in a PDF workflow should be reversible. Before adding a background image, header or footer, password, or Media saving, make a working copy of the template. After the change, repeat the same test. If an error appears, restore the previous version of one element rather than deleting the entire PDF module or changing the cache, theme, and form at the same time. This keeps the cause of the problem visible.

Application Ideas Without Replacing Your Business Process

e-addons PDF does not create sales, agreements, or a record-keeping system by itself. It is useful as the final document step where the website has already collected meaningful data. The clearer the boundary, the more reliable the configuration: the form accepts information, the PDF records it in a readable format, and the subsequent work continues in email, a CRM, or an internal workflow the organization already uses.

A Program Available for Download From a Page

The button mode is well suited for a course program, schedule, technical description, or catalog item. The source is a post or a dedicated Template; the output is a document for offline reading. The check is to open the PDF on two devices and compare it with the page content. The limitation is that animated and interactive elements must not be the only carrier of important material.

Consultation Confirmation

The form mode works for an inquiry where a visitor selects a service and describes a task. The PDF remains with the manager as an email attachment or as a Media item when needed. The check is to compare field values and attachment data. The limitation is that you should not send a visitor a document containing internal notes if the template is also used by the team.

An Internal Processing Sheet

If a staff member needs to quickly view all completed fields, you can create a concise internal PDF with technically clear labels and a full list of non-empty values. This option does not replace a submission database, but it reduces the risk of losing context in a long email thread. The check is to submit a form with both completed and empty fields and confirm that the document has no inappropriate blank lines.

These ideas share one thing: the document supports a verifiable action. Do not add PDF simply because the format is familiar. First confirm that the recipient truly needs a separate version, then choose the appropriate generation point.

Diagnosing e-addons PDF by Observable Symptoms

When a PDF does not match expectations, do not begin with a full reinstall or change every setting at once. e-addons PDF has several independent parts: capability activation, data source, template, converter, file delivery, Media, and Email. A symptom usually indicates the order in which these areas should be checked. First save the test data and the generated file itself, then repeat one step using a minimal template.

The Button Exists, but the PDF Is Not Generated

Symptom: a user clicks the button but sees no new window and receives no file. Likely cause: the PDF capability is not enabled in the e-addons panel, the selected source is unavailable, or link delivery is blocked by access permissions. What to check: return to the e-addons panel, confirm the module state, then create a minimal Template with a heading and one paragraph and connect it to Button PDF.

If the minimal option works but the live one does not, the issue is in the source page or template. If the file is created but the public link does not open, check access in a browser window without authentication and only then test Secure Link. Fix: restore elements one at a time: Template first, then file settings, then styles. Rollback: preserve the working minimal configuration so you do not lose the ability to compare output.

The PDF Includes Navigation, a Form, or Other Unwanted Page Blocks

Symptom: the document resembles a long website screenshot and includes navigation, footer content, banners, or an interactive form. Likely cause: Body is set to Current Page even though the task needs a dedicated Template. What to check: compare the current Body setting with the source that should appear in the print version.

Fix: create a separate Elementor template for the PDF, place only the required blocks in it, and switch Body to Template. Then test the document on two posts. When to roll back: if the dedicated template loses important dynamic data, return to its simple version and restore fields one at a time rather than permanently returning to Current Page.

A Form PDF Contains Empty or Incorrect Values

Symptom: the template is generated, but the name, selected service, or comment is blank, or the wrong label appears. Likely cause: the FORM Dynamic Tag points to the wrong Custom ID, the field has been renamed, the document outputs the internal value rather than the option label, or the test submission did not complete an optional field.

What to check: open the specific form field and compare its ID with the dynamic tag setting. Then make a new submission with a unique test value, such as "Check-481" rather than "Test." This eliminates confusion with an old file. Fix: align the IDs, choose the needed Value or Option return type, and save the Template. Rollback: if complex markup makes the issue hard to find, temporarily output one value in a separate text block and confirm that the bridge between the form and template works again.

The File Exists, but the Email Arrives Without an Attachment

Symptom: the form reports success, the PDF may be saved in Media, but no file is attached to Email. Likely cause: Email is missing from Actions After Submit, the PDF attachment is not enabled for the action, or the site's email delivery has not been verified. What to check: first confirm that a plain form email without PDF reaches the test mailbox. Then check that the action includes Email or Advanced Email and that attaching the generated file is enabled.

Fix: restore the minimal "PDF + Email" chain, perform one submission, and open the message in the destination mailbox. Rollback: if the result became unclear after adding extra actions, temporarily remove Redirect and the second email, but do not delete the verified PDF template. After restoring the basic chain, return actions one at a time.

The Layout Differs From Elementor or Breaks on the Second Page

Symptom: an icon disappears in the PDF, spacing changes, the background covers text, a table runs off the page, or a long comment overlaps the header or footer. Likely cause: HTML-to-PDF conversion limitations, complex theme styles, an unsupported font, a fixed block height, or an overly dense table.

What to check: open PDFs from short and long tests, disable unnecessary global styling, replace the problematic decorative element with plain text, and try a clean Template. Fix: simplify the document, give long text a natural height, reduce the number of columns, rely less on animation, and confirm that the font actually displays Cyrillic text. Rollback: return to the last Template version that produced a readable file rather than trying to compensate with arbitrary page margins.

The File Is Available to an Administrator but Does Not Open for a Visitor

Symptom: the PDF opens in an admin session, but a regular user receives an error, blank page, or broken link. Likely cause: a hosting restriction on direct access, the file path, or delivery caching. What to check: repeat the action in a private window and on another device if possible. Confirm that the output does not rely on your authentication.

Fix: test Secure Link mode, which the documentation recommends when direct links to plugin files are blocked. Then run the public test again. Rollback: if the change does not solve the issue, restore the previous state and provide hosting support with the exact symptom and test-document URL without publishing a personal file.

Questions That Come Up When Configuring PDFs

Do I Need Elementor Pro for e-addons PDF?

For the button workflow, use the e-addons and Elementor elements available in your installation. For PDF Pro-Form Generator, the official documentation specifically states that it works with Elementor PRO and its FORM. If you need to generate a PDF from a form, first confirm that the Form widget is available and working in your environment.

Why Is a Dedicated Template More Reliable Than Current Page?

A dedicated Template gives you control over which blocks appear in the document. It reduces dependence on menus, animation, pop-ups, and theme styles. Current Page is useful for a simple quick export, but it should be tested especially carefully.

Can I Insert All Form Fields Into a PDF Without Creating a Manual Template?

Yes. The documentation describes shortcodes for outputting all fields and versions that exclude empty values. This is convenient for an internal processing sheet. For a client-facing document, a dedicated Template with a clear structure is usually better because important values appear in the intended order.

Why Does the PDF Not Match the Elementor Page Exactly?

HTML-to-PDF conversion has limitations: JavaScript is not executed, not all CSS is reproduced, and some fonts and icons may work differently. Simplify the layout, move important content into standard blocks, and test the output in a real PDF rather than only in the editor.

Should I Always Save the Document in the Media Library?

No. Saving is convenient when the document needs to be found later, but it adds questions about retention and access. For one-time internal processing, an email attachment may be enough. The choice should match the document's purpose and the data-handling rules of the specific site.

When Should I Enable Force Download?

Enable it when the visitor must save the file rather than simply open it in a browser viewer. If it is more useful for the user to review the document first, test the new-window workflow. Test both behaviors in the browsers used by your audience.

Can I Protect a PDF With a Password?

Password protection is available in the settings, but it does not replace a complete secure-delivery process. Before enabling it, determine who needs access, how the password will be delivered, and whether it could appear in an unprotected email or instruction.

When e-addons PDF Is a Good Choice

e-addons PDF is a good choice when a site already uses Elementor and a document should naturally extend its content or form. For a printable page version, configure Button PDF through a dedicated Template and verify dynamic data across multiple posts. For a personalized document, begin with the form, stable field IDs, and a minimal Template, then choose one clear file-delivery method.

Do not try to make the PDF a mirror of a complex page. It is far more useful to create an independent, calm, and verifiable document. Test it with real data, in a public browser window, and in the recipient's mailbox. Once the basic chain works, add headers and footers, background, a custom font, Media saving, or password protection one change at a time.

If your workflow matches these conditions, you can download the ZIP archive, deploy it first on a test page, and repeat the validation described here with your own template and form.
