How to Configure E2Pdf for WordPress

This guide to E2Pdf will help you understand where the plugin gets PDF data, prepare an integration with a form or WordPress records, configure a document template, and verify that the finished file can be downloaded or sent. Rather than covering the product's promotional features, we will follow a practical path: from selecting a data source and mapping fields to running a repeatable test that confirms visitors receive exactly the document they expect.

E2Pdf is useful when web data needs to become a formatted document: an application, questionnaire, certificate, contract form, order summary, specification, or personalized page export. Its strength is not simply creating PDFs, but connecting a data source, a template, and a delivery method. So start not with the download button, but with three questions: which data may be included, which form it should appear on, and at what point in the user journey the recipient receives the document.

In this guide, a "form" means an external plugin that collects data. E2Pdf itself does not replace an application collection system: it uses data from WordPress or a supported extension, maps it to elements in its own template, and creates the final file. Understanding this distinction prevents a common mistake: trying to build an interactive web form in the PDF editor instead of preparing a source for the fields first.

What You Can Do with Templates and Data Sources

Every practical E2Pdf workflow has two layers. The first contains a WordPress record, submitted form, page, product, or other object. The second contains a document template that specifies where each text fragment, date, image, signature, or table block should appear. The plugin joins these layers during generation. If no source is selected or a field is mapped to the wrong identifier, even a polished layout will remain blank. When the connection is configured correctly, the same template can produce different personalized documents without manual copying.

This is convenient for site owners whenever the output depends on a specific visitor. For example, after submitting an event application, a person can receive a completed confirmation while a staff member receives an email with an attachment. A content site can provide a link to a personalized PDF version of a page or post. A store can build a document from order data and use it as a supporting print form. The exact set of available fields depends on the selected extension, so do not transfer settings from one source type to another without checking the mapping.

Three Ways to Start a Template

When creating a template, E2Pdf provides different starting points, and the choice has a significant effect on later work. A blank document is appropriate when you need to create a page from scratch and define the size, margins, text areas, and graphics yourself. Uploading an existing PDF works well for an established form: you can place new fields and elements on it, but the original PDF remains the foundation rather than becoming an automatically editable layout. The automatic option can create a draft template with mapped fields for the selected integration, but treat it as a starting point to review rather than a final document that requires no revision.

Before choosing, prepare a realistic sample of the intended output. If the organization already uses an approved form, request the final version and verify its page size. If the form has not yet been approved, begin with a simple test version containing several large fields. This makes it easier to verify the data flow without spending time aligning decorative elements. Once the test succeeds, you can transfer the structure to the final layout.

When to Use an Existing PDF Form

An uploaded form is a sensible choice when a document has a precise branded grid, static details, signatures, or graphic areas that cannot be recreated without risking inconsistencies. In this case, E2Pdf serves as a fill-in layer: text fields, checkboxes, images, and dynamic blocks are placed over the prepared page. Confirm that the form is already designed for printing and leaves enough room for changing values. A long name, several address lines, or a free-form comment may not fit inside a fixed cell even if a short demo value looked fine in testing.

Do not confuse a fillable PDF in a desktop application with a website form. If visitors need to enter information in a browser, that information is normally collected by a supported WordPress form. E2Pdf then places it in the document. Whether the finished PDF remains editable depends on the PDF generation settings and the viewer application, so for a final official document, decide in advance whether recipients should only read the file or continue editing its fields.

Data Sources to Distinguish Before Setup

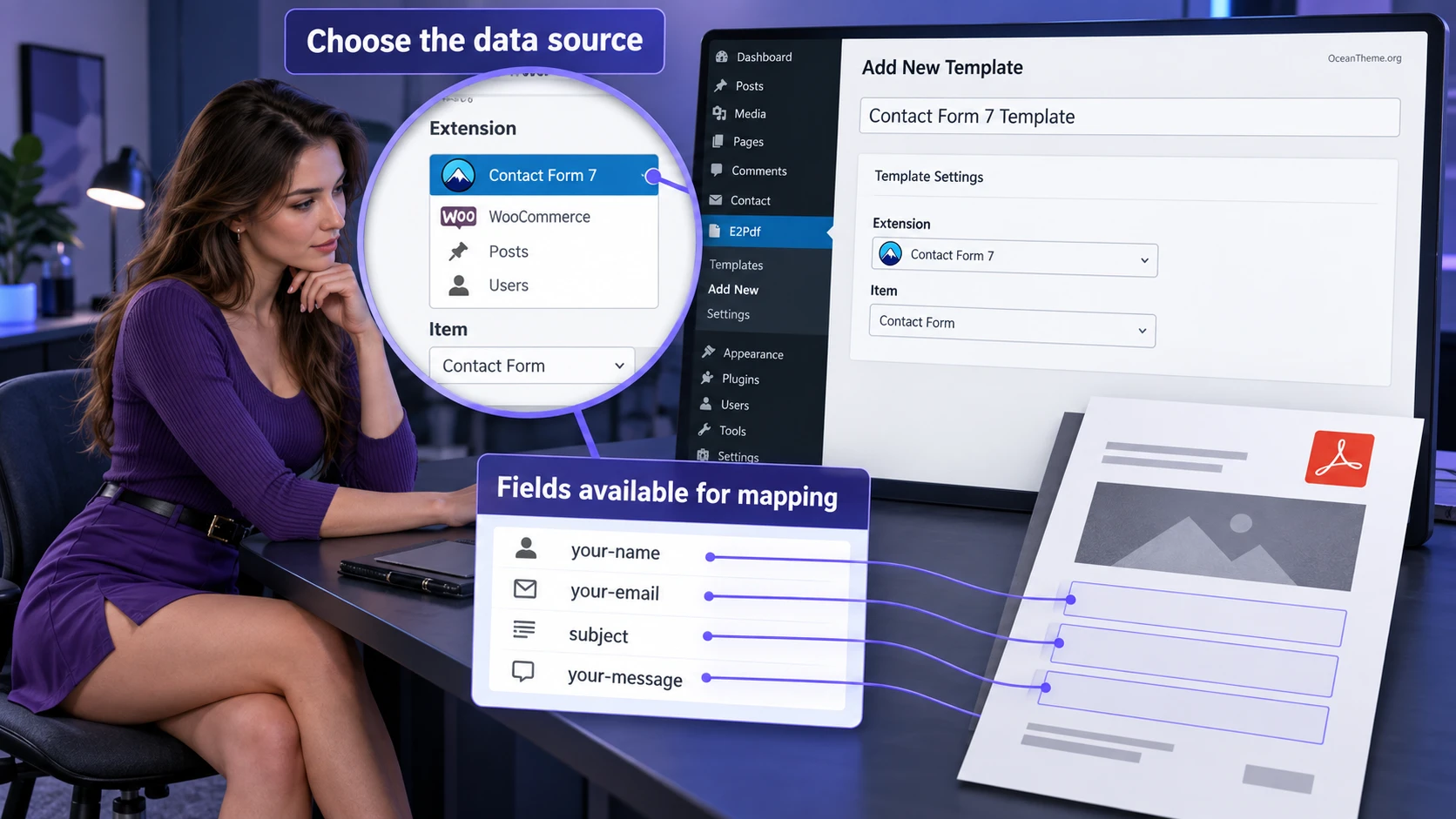

In the template creation window, the key settings are Extension and Item. The first specifies the environment from which E2Pdf should retrieve data. The second identifies a particular form, post type, or other selected object. For a form, Item normally means the exact form whose submissions will be processed. For WordPress or WooCommerce, it relates to the type of object whose details will appear in the document. These settings define the shortcode context and the list of fields available for visual mapping.

The safest approach is to give a template a clear internal name, but not to rely on that name as the connection mechanism. Create a short map: "application form" - "confirmation template" - "visitor button" - "staff attachment." For each link, state who sees the output and what happens if generation fails. This map helps not only during the initial setup, but also when handing the site over to another specialist.

Check before designing the layout: submit one test record to the data source and make sure it contains every value you need. Until you have a real record, you cannot reliably test dates, toggles, file uploads, and empty fields.

Who E2Pdf Is For and When Another Approach Is Better

E2Pdf is a good fit for site editors, application administrators, stores, and agencies that need repeatable documents based on existing data. For this kind of team, the most important things are a consistent template, controlled generation, and the ability to test output using copies of records. The plugin is especially useful when one layout is used repeatedly and manually transferring details into PDFs would be inconvenient or risky.

It is less suitable as the only tool when the task is collecting data without an installed form that can be integrated, or allowing visitors to edit a complex PDF directly in the browser. In these cases, first choose a form system or specialized document service, then determine whether export is needed. It is also not worth starting with a heavy multi-page design when a short email or a simple print page would be enough: PDF support adds another checkpoint that must be maintained whenever fields change.

For a team without technical experience, a sensible starting point is one document, one form, and one clear delivery method. Do not enable every option immediately: downloading, page viewing, server storage, attachments, and external workflows. Each method has its own trigger point and consequences for visitors. First achieve a predictable file from a test submission, then add the next channel.

Preparing WordPress Before Your First Template

Installing E2Pdf is technically straightforward, but a reliable outcome depends on the surrounding environment. Before you begin, make sure you have a test copy of the site or at least a way to create a draft form and draft post. Documents often contain personal information, so avoid experimenting with real submissions. Prepare one test data set that includes not only normal text, but also a long string, an empty field, a date, a toggle, and a file if that kind of object will be used.

Decide separately where the original layout will be stored. If you upload a finished PDF, keep its source file in the team's working archive and record the version name outside the public part of the site. The site should use a tested form, not a random file from an email thread. If you are designing the layout yourself, document the page size, margins, and permitted length of variable strings. This prevents a situation where the document looks good only with one test name.

Minimum Checklist

• Data source: A form, record, or other object exists and is available to pass values into the PDF.
• Test material: A separate record or test submission has been created without real personal data.
• Layout: It is clear whether you need a blank page, an uploaded form, or an automatically generated draft.
• Delivery channel: It has been decided whether the user will see a button, a viewer page, an email attachment, or only an administrator-facing result.
• Access review: The team knows who may edit the template, source PDF, and shortcode placement.

Pay particular attention to form field labels and identifiers. The visible label "Phone" does not always match the technical name available for passing data. E2Pdf uses the syntax of the specific integration, so when a form changes or its fields are copied, previous references may no longer be valid. Do not try to guess them from the visible label. Open the test submission data and use visual mapping or the documented syntax of the selected extension.

Installation and Your First Menu Check

In the WordPress admin area, open Plugins, then Add New, find E2Pdf, install it, and activate the extension. After activation, an E2Pdf entry point should appear in the menu. Do not move straight to a complex form: first open the templates section and make sure the new template interface is available. If the menu does not appear, check the current account's permissions, the WordPress activation message, and whether there is an error on the plugins page.

The next step is not visual styling, but creating one deliberately simple template. Select E2Pdf - Templates - Add New. In the creation dialog, enter a clear name, page size, primary font, and data source. If the selected extension supports visual mapping, choosing Extension and Item should give the editor access to the relevant form or object context. If the required form is not listed, do not continue placing elements: resolve the connection issue first.

What a Successful First Launch Looks Like

A successful first launch is not simply seeing the editor. The minimum sign is that you can create a template, save it, reopen it, and see the selected settings without them being reset. The second sign is having a test source that is recognized in the template context. The third is knowing where one of the global shortcodes will be used. Until these three conditions are met, complex graphics and dozens of elements only increase the cost of fixing issues later.

If you are working with a form integration, make sure the form itself is published or available for test submissions. Some forms use asynchronous submissions and their own success messages. Place an E2Pdf shortcode only where the specific integration supports it, not in an arbitrary text widget. For Contact Form 7, E2Pdf documentation points to using its codes in messages or the email body, and the available field set follows the form's syntax.

Configuring a Template: From a Page to a Readable Document

After creating a draft, open it in the editor and start with the page size and structure. An error at this level affects every element: if the wrong format is selected, manually aligning fields will produce a fragile layout. Choose a size that matches the real form or printing method, then add only three elements: a heading, one short dynamic field, and one field with a potentially long value. Save the template and test generation before proceeding.

The editor lets you add elements from the builder panel and position them with the mouse. Treat coordinates as part of the layout, not as cosmetic detail. Leave room for every variable area: a customer name may expand, an address may wrap, and a product description may be empty. If a value is missing, the document should not look like a damaged form. Decide in advance whether an empty line should remain blank, be hidden by a condition, or be replaced with neutral wording.

Visual Mapping and Manual Entry

Visual mapping is available for a selected element through the Map contextual action. It displays the available values based on the selected Extension and Item; after you select the required field, the connection is added to the element. This is more convenient than manual entry for simple fields and reduces the risk of typos. However, visual mapping does not eliminate the need for testing: make sure not only the field label, but the actual submitted value appears in the expected PDF area.

Manual entry is needed when the workflow uses documented integration syntax, helper shortcodes, or formatting. Use it carefully. First create a separate copy of the element or a test template, insert one shortcode, and generate a file. Only after confirmation should you transfer the configuration to the main layout. This order is especially important for dates, numbers, repeating fields, and file uploads, where the difference between a displayed label and a technical value is more likely to appear.

Basic Settings in the Metabox

In the template settings, review the global font, size, line spacing, alignment, and text color. Global values provide a sensible baseline for elements, but important content can still be styled separately. For Russian-language text, do not limit testing to Latin characters: upload and assign a font that includes the required characters, then test surnames, addresses, and long strings. E2Pdf font settings are available under E2Pdf - Settings - Fonts.

If the document is intended for a right-to-left language, the RTL setting and selected font processor require separate testing. Do not enable it on a standard Russian-language form "just in case": text direction applies to the content and can change the output. It is best to settle the font choice before final layout work, because changing typefaces alters line widths and wrapping height.

Required intermediate test: after every significant template change, open generation through E2Pdf - Export. This is faster than submitting the form again every time and helps isolate a layout issue from a form issue.

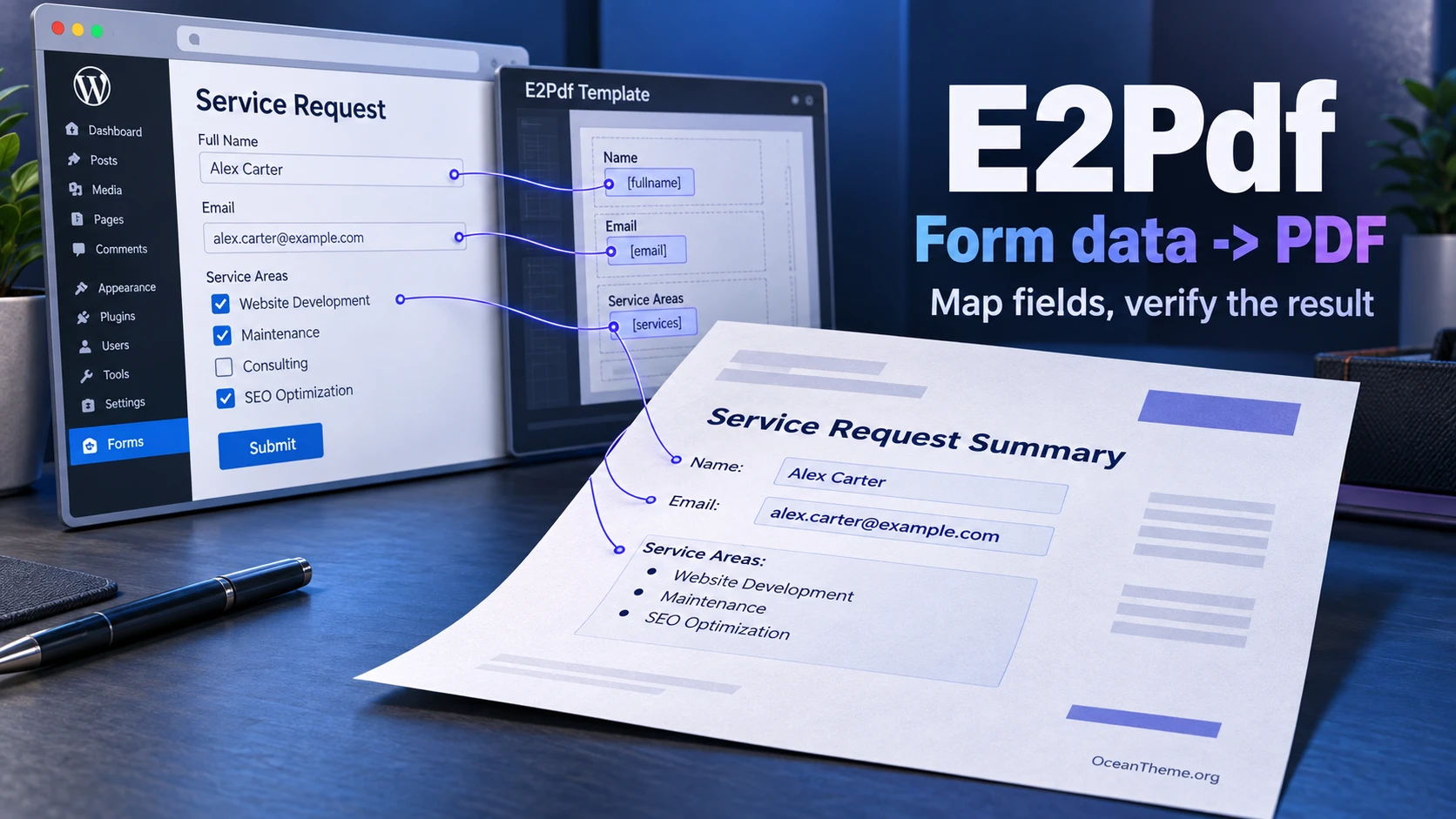

How E2Pdf Turns a Form Submission into a Document

A useful characteristic of E2Pdf is that a template does not store finished user data. It stores rules that tell elements how to receive values when a specific context becomes available. For a form, that context is a submission; for a WordPress post, it is the current page or post object; for a store, it is the data available in the selected workflow. This leads to a simple rule: one template can be used repeatedly, but it must be connected to the exact type of data for which its mappings were written.

The sequence works like this: a visitor submits a form or opens a page with a suitable object, the source passes values, E2Pdf applies mappings and element settings, and the selected global shortcode determines what happens to the output. This order explains two common situations. A blank PDF means that data is missing or not recognized at one of the early stages. A missing button with a completed template means the final stage - shortcode placement or execution - has not been completed or is in the wrong context.

Five Roles of Global Shortcodes

E2Pdf documentation identifies several global shortcodes. [e2pdf-download] outputs a way for users to obtain a PDF. [e2pdf-view] is intended to display a document on a page through a viewer. [e2pdf-attachment] is used to add a generated PDF to an email. [e2pdf-save] saves a file on the server within a supported workflow. There are also specialized options for external automation and individual integrations, but you should not include them in the initial setup unless they are needed.

Choose the role based on the workflow, not on a desire to use every feature. If an applicant should immediately receive a confirmation, start with [e2pdf-download]. If a staff member needs a PDF with an email notification, test [e2pdf-attachment] in the email workflow. If a public page should display the document, test [e2pdf-view] separately. Server-side storage requires particular care: define the file lifecycle, staff access, and whether data must be deleted under the project's rules in advance.

Each shortcode includes a template ID attribute, for example [e2pdf-download id="1"]. In a working configuration, replace the demo value with the ID of the required template. Do not copy code between a test and production document without checking the identifier. One incorrect number can produce a button that appears to work while opening a different form, and the error may only be discovered by examining the PDF content.

Where to Place the Delivery Method

For forms, placement depends on the specific extension. Contact Form 7 documentation describes using E2Pdf codes in form messages or the email body. Other supported forms may provide different placement options. Therefore, do not insert code into a random page block and expect it to receive data from the latest submission automatically. Find the point in the integration documentation where the submission context actually exists, and test it with one form.

For a WordPress source, the approach is different: a PDF can be built from page or post data, meta fields, terms, and supported custom fields. Here, it is important to confirm which object is available when the shortcode runs. An archive, widget, preview, and single page may have different contexts. If you want to provide a document for a post, test the link on that post itself rather than on an arbitrary admin page.

When to Use Conditions and Actions

The actions and conditions mechanism is designed for documents that change according to submitted data. According to E2Pdf documentation, conditions can change element properties, show or hide elements and pages, and affect template and shortcode behavior. It is a powerful tool, but it requires a stable baseline version first. If a simple version of a questionnaire cannot generate a document, conditional rules will not help and will only make diagnosis more difficult.

A good reason to use a condition is a single question that genuinely determines part of the form. For example, selecting an additional service displays the related block, while no selection leaves that space unused. A poor reason is trying to hide the consequences of an incorrect mapping or compensate for an area that is too small for text. Conditions should reflect a business rule that is clear without code. Write it as a plain sentence before configuring it: "if option X is selected, show block Y in the document."

Create rules one at a time. After each save, submit two tests: one that meets the condition and one that does not. Compare not only whether the block appears, but also neighboring elements. A hidden element can leave an unwanted gap in a poorly designed form, and wrapped text can shift a lower block. If the document is critical, keep a pair of reference PDFs as a visual checkpoint.

PDF Settings That Affect the Output

The advanced template settings include options that affect delivery, file naming, editability, and document appearance. You do not need to enable them all at once. Start with a PDF name that helps both staff and visitors distinguish the file from an arbitrary download. Then choose whether the file should open in a separate tab or start downloading. This choice should match user expectations and the shortcode's intended behavior.

The Inline option controls opening behavior, while Auto Download enables automatic downloading in download workflows. On a site where users need time to read a document, automatic downloading may be inappropriate. On an internal form that returns a receipt, it can sometimes be convenient. In either case, test not only in the administrator's main browser, but also in a regular user browser without saved authentication.

Editable and Final PDFs

The PDF Flatten setting determines how fields are handled in the final file. Without flattening, fields may remain editable, and different viewers may display them differently. The Yes option makes the PDF read-only, and the documentation recommends it for final documents. Full flattening converts pages into images inside the PDF; it may be resource-intensive for long documents, so do not choose it automatically for every application.

The practical choice depends on the document's purpose. For internal review, where a staff member needs to continue working with fields, preserve editability and test the required viewer. When sending an official copy to a recipient, it is better to verify the flattened output: there is less risk that fields will be highlighted or appear differently in another application. Do not describe this as absolute document protection: read-only mode does not replace access policies, secure data transfer, or organizational procedures.

Appearance and File Size

The Generate Appearance option can help achieve a consistent appearance across different viewers and normally requires separate testing on the final form. Image optimization and PDF compression can reduce output size, but they also affect graphic quality. If the document includes signatures, scans, or small text in an image, compare a test before and after the change. Do not judge by file size alone: open the PDF on screen and, if required, print one page.

Metadata - title, subject, author, and keywords - is useful for internal organization, but does not replace a clear filename. Do not include personal data in a name unless necessary. For server storage, create a neutral naming scheme and limit access. If an exact retention policy has not been defined, start with downloading or attachments and discuss with the site owner whether a long-term copy needs to be created at all.

Quick configuration summary: a correct PDF is not just one with populated fields. It opens as expected, has a clear name, remains readable after the chosen processing, and does not reveal more data than the recipient needs.

Practical Example: Contact Form 7 Application Confirmation

Let us look at a specific but safely generalized task: a website has a preliminary service inquiry form where a visitor enters a name, email address, selected option, and comment. After a successful submission, the visitor should see a link to a personalized PDF confirmation, while a staff member should receive an email containing the same document. This example is useful because it covers every key E2Pdf component: external data collection, uploading or creating a form, mapping, shortcodes, email testing, and output review.

The goal is not to create a legally binding agreement or store sensitive data. We are creating a clear application confirmation. It only needs a date, a test record number if needed, a name, the selected service, and a note about next steps. If your project requires special legal wording, have the text reviewed by the responsible specialist before embedding it in a PDF.

Preparing the Form and Document Layout

In Contact Form 7, create a separate test form. Give the fields clear technical names, do not change them after mapping begins, and record them alongside the layout. Add at least a name text field, email address, service selection dropdown, and comment text area. Submit the form once and save control values: a short name, a long name, an empty comment, and a multi-line phrase. These examples will show how real input behaves on the page.

Next, create a template in E2Pdf through Templates - Add New. Select Contact Form 7 as the Extension and the exact test form as the Item. For the document layout, you can upload a prepared PDF or begin with a blank page. In this example, one page with the heading "Application Confirmation," two static explanatory lines, and areas for dynamic values is convenient. Place static text separately from fields so that a change in name length does not shift the explanatory content.

Create Three Essential Fields First

1. Applicant name: Add a text element with enough width and map it to the technical name tag from the form.
2. Selected service: Place it beside its label, but not in a narrow cell if options may be long.
3. Comment: Reserve a multi-line area below, leaving room for text wrapping and an empty state.

In each element's contextual menu, use Map and select the corresponding field from the available list. Do not combine visual mapping and a manually written tag in one element unless you understand how they work together. After the three fields are configured, save the template with Save or Update, open E2Pdf export, and generate a PDF using the test data. The output should show only these three values. If one field is blank, resolve that before adding dates, graphics, or additional conditions.

For Contact Form 7, E2Pdf supports the form's native tag syntax. The extension also provides helper shortcodes for formatting dates, numbers, and output. However, do not complicate the template with formatting on the first pass. First prove that the original value arrives. After that, when you need to change its presentation, add one helper and repeat the test only for it.

Providing a Link to the User

Once the template is populated, activate it and open the successful-submission message settings in the test form. Insert a download shortcode with the ID of the template you created, for example [e2pdf-download id="1"], replacing 1 with the actual identifier. Do not insert the demo code as ordinary page text: it must run in the supported form message context. Save the form, clear the page cache if one exists, and submit test data from the public part of the site.

A successful sign is that after submission, the user sees an available download element and the opened file contains the values from that exact submission. Compare them to the form fields, not to what you expect to see mentally. The most common subtle error is checking a previously submitted form: when testing again, change the name and service so the new PDF cannot be confused with the old one.

Attachment for a Staff Member

If the form email should contain a PDF, configure it separately in the Contact Form 7 mail section by using [e2pdf-attachment id="1"] in a supported mail body field according to the integration documentation. Do not treat the appearance of a user-facing link as proof that attachments work: these are two different channels. Send a submission to a controlled email address, check the inbox and spam folder, open the attached file, and make sure it is not empty.

If the email does not arrive, first check delivery of the form notification itself. E2Pdf may create the attachment, but the site can still fail to deliver email because of WordPress sending settings. If the email arrives without a file, verify the template ID, activation, shortcode placement, and form context. Avoid changing mail settings, the template, delivery plugins, and the layout at the same time: after such a change, it is impossible to know exactly what fixed or broke the workflow.

Testing Long and Empty Values

After the primary test, run four short checks. First use a long name, then a long comment, then leave the comment empty, and finally select another service option. Confirm that text does not overlap neighboring elements, no extra page appears, and no internal technical tag remains in the document. If a field is too small, solve the issue in the layout: enlarge the area, change wrapping, limit allowed input on the form side, or show only the required part of the data. Do not hide overflow behind a white rectangle.

For toggles and checkboxes, always test both values. Visual mapping may display a technical "on," an empty string, or the option's actual label, depending on the form. If the document must display understandable text, first determine which value actually arrives, then configure a condition or formatting using confirmed syntax. Never place unverified technical values in a public document.

What to Do After a Successful Test

Once one workflow works reliably, document its components in the project's internal documentation: the form name, template ID, shortcode location, final filename, and date of the latest test submission. Then make a backup of the template using E2Pdf's available tools. The documentation notes that when moving a template between sites, its connection to an object may need to be restored, especially when different forms are imported. A backup helps restore the design, but does not eliminate the need to verify the final connection to Item.

Only after this point should you add a second document, conditions, images, or an alternative delivery channel. This incremental approach makes the workflow maintainable: if something stops working after a form update, you have a minimal reference version from which to restore the configuration.

Output check: a completed workflow is confirmed only when a new test submission creates a new button or attachment, the PDF opens, contains current values, and does not break the form email.

Workflows Without Forms: Pages, Posts, and Store Data

E2Pdf is not limited to forms. The documentation for its WordPress extension describes creating and populating PDFs from page and post data, including object details, meta fields, terms, and supported custom fields. This enables a different class of tasks: users do not necessarily submit anything, but receive a document assembled from already published or saved content. For example, a service page can generate a printable description, an account area can provide a personalized statement, or a catalog can offer a specification sheet.

These workflows require more discipline when selecting the context. A post listing page, an individual post, and a page builder template may pass different current data. Before creating a complex PDF, run a minimal test using one specific post. Add the title, one content fragment, and one known meta value to the document. Open the link on that post's public page. If the output is correct, add the remaining fields gradually.

A Post Card as a Printable Document

Imagine a service card where an editor maintains a title, short description, topical category, and several additional fields. An E2Pdf template can turn it into a separate PDF, but it is important to decide which content should be transferred. Not every page block is appropriate for printing: banners, pop-up offers, navigation, and widgets are rarely needed in the document. Make the layout independent from the external WordPress theme: E2Pdf receives the data, while the template itself defines the placement on the page.

Start by identifying required data. This is usually the title, short text, details, and a date if one is genuinely needed. Then determine the acceptable length for each fragment. Long content may span several pages, so establish rules: either the document supports continuation, or the page displays a prepared summary field. Trying to fit an entire article into a fixed area almost always results in clipping or unexpected blank pages.

In a WordPress workflow, the [e2pdf-content] shortcode is useful because it lets you define a content fragment that should appear inside the PDF. It works well when an editor needs to control a specific document block rather than simply repeat the entire page. However, use it only after testing it on one post: make sure the editor contains no unnecessary markup and that PDF line breaks behave predictably. If the site uses page builders or complex blocks, testing an ordinary post first is especially important.

Working with Custom Fields

If the project stores data in custom fields, first agree on a stable structure. E2Pdf can use WordPress data and supported fields, but document portability depends on technical keys remaining unchanged. An editor can rename a visible label without issue, but changing a key or value type requires a template review. Create an internal mapping table: on-screen field - technical key - PDF element - sample value - person responsible for changes.

Do not output everything that is technically available into a PDF. Be especially careful with internal notes, user metadata, and fields intended only for staff. Review access controls not only on the page, but also in the shortcode that delivers the document. If a PDF is available to a visitor, it must not accidentally expose an internal price, a staff address, or an editor's comment.

WooCommerce: A Document as Part of the Order Process

E2Pdf documentation lists WooCommerce among its integrations and explains that when WordPress or WooCommerce is selected, the Item value relates to the object type from which data will be built. The practical benefit is preparing supporting documents from order or product data when the regular store screen is not enough for printing or sharing. However, this does not mean every PDF should be shown to customers immediately. First determine the trigger point: after payment, in an email, in the account area, or only for staff.

A reliable start is one test order on a site copy or in an approved test environment. Use several stable markers in the document: the test order number, recipient name, one product line, and the amount if that is specifically needed. Do not add tax calculations, shipping, coupons, and dozens of meta fields at the same time. Products and store extensions often change the available data, so add fields gradually and save a reference PDF after every stage.

If the document should appear after checkout, check how it interacts with caching and store emails. The thank-you page and notifications may have different contexts. Do not connect the workflow to an arbitrary page until it is confirmed that the current order is available there. If in doubt, keep the document for internal testing only through E2Pdf export and confirm the trigger location in the documentation for the selected integration.

Moving Templates and Maintaining Them Safely

An E2Pdf template is more than a visual form. It includes a source connection, elements, settings, and rules. For that reason, moving it from a development site to a live site should not be treated as a simple file copy. Built-in backup and import features can move templates, images, and fonts, and in some cases the related object. However, the documentation specifically warns that after import, you may need to reconnect the template to Item and verify its activation status.

For every migration, use the sequence "backup - import on a site copy - reconnect - test - publish." Do not overwrite an active template during the workday without a backup. If the import process offers to overwrite a template by identifier, confirm in advance that it is truly the intended object. Identifiers on different sites should not be a basis for guesswork.

Why Values May Disappear After Import

The main reason is that the source form or other object on the new site has a different technical identifier, even if it looks the same. Take particular care with forms that use internal field identifiers. Formidable Forms backup documentation notes that in some cases, field keys can be used instead of identifiers to reduce the need for remapping. This is not a universal fix button: after migration, you still need a test using an actual new submission.

A second reason is missing fonts or images. If the template uses an uploaded font that does not exist on the new site, line wrapping and dimensions may change. If the document contains an image, make sure it is available and complies with the project's requirements. Do not make a production document available to users until you have viewed it on an ordinary device, not only in the admin area.

A Simple Change Log

You do not need a complex development process, but a short log is useful: change date, template name, what changed, which test was run, and where the backup version is stored. Note changes to form fields, data sources, fonts, conditions, and delivery methods separately. These elements affect different parts of the chain, so recording them helps restore a working version more quickly. If the document supports a recurring process, assign one person responsible for approving updates before publication.

When updating the plugin itself, first review the changelog and test critical workflows on a site copy. It regularly includes compatibility, visual mapping, rendering, and integration field support fixes. This is not a reason to postpone updates indefinitely; it is a reason not to update blindly before an important campaign. A good practice is to prepare one reference test for every critical form and repeat it after each planned update.

Practical principle: a transferable template is not considered ready after import, but after a new test record on the target site. That record confirms that the layout, font, source, and shortcode connection have been preserved.

Fonts, Images, and Protecting the Final Document

PDF quality is most often undermined not by complex settings, but by small details: a font lacks required characters, an image is too large, a field appears editable in one viewer and differently in another, or an unnecessary person receives the document. For that reason, visual configuration should be treated as a separate stage after the data is already arriving correctly. A layout cannot be considered complete until it has been tested with realistically long Russian values and on the device used by the recipient.

In E2Pdf, a font can be set globally or for a particular element. This is useful when a heading and body text need different emphasis, but too many local exceptions make maintenance more difficult. Start with one primary font that supports the characters you use and one accent style only when necessary. After replacing a font, always open a test PDF because a new typeface changes text width even at the same size.

Russian Text and Line Wrapping

Testing with an English name tells you nothing about a Russian-language document. Use values containing the letter "yo," a hyphen, a long organization name, several words in an address, and a multi-line comment. Check every field type. If text extends beyond its boundaries, do not reduce the size until it is unreadable. It is better to enlarge the area, shorten required wording, move secondary information to the next line, or split data into two zones.

When a multi-page document is needed, design it as a sequence of pages rather than one page stretched to its limit. Headings, labels, and internal block numbers should remain understandable on continuation pages. If the PDF includes a static form, decide in advance what happens on the second page: a new background, continuation on a blank page, or a separate template. Do not assume a long field will "wrap nicely on its own" at every size.

Images and Form Uploads

Photos, signatures, and uploaded files require their own workflow. Before placing an image, determine exactly what the form passes: a URL, an array, one file, or several files. Contact Form 7 documentation includes examples for processing uploads and choosing a specific value from a list, but that syntax should not be transferred to another form without testing. Run a minimal test with one image, evaluate its size, rotation, and position, then add the remaining image-based elements.

If a signature appears in the document, both its size and how it is supplied matter. A signature in a form is usually a field value, not an automatically recognized legal action. Do not make claims about legal validity on the page unless they have been approved by the process owner. E2Pdf's technical task here is simpler and narrower: retrieve a value from a supported field and place it in the assigned PDF element.

Filenames and Metadata Without Excess Data

A clear filename reduces errors for visitors and staff. Choose a neutral base that identifies the document type and add a safe internal identifier if necessary. Do not include passport details, a full address, phone number, or other sensitive information in the filename if the document may be downloaded to another person's device. Check how the file appears in a browser, email client, and after downloading it again: some characters may display differently.

PDF metadata is configured separately. It is useful for internal search, but should not contain information that is not intended for the recipient. If the document needs keywords or an author, enter them as file properties rather than as arbitrary text on the page. When changing a template, review metadata along with the content: a visually perfect PDF may still carry the old name of a previous process.

Safe Improvements Without Editing Core Files

In most cases, improving E2Pdf does not begin with programming code. First, you can make the process more reliable through configuration: limit the group of editors, separate a test template from the live one, set a clear output name, enable appropriate PDF processing, and establish a control submission. These are reversible steps that remain in understandable areas of the admin interface and depend less on updates than unofficial modifications to plugin files.

If users need a clearer download button, do not edit E2Pdf files. First review template settings that define the default button title, then style the theme container only if your site has a stable selector. The exact CSS class output by a particular integration depends on its markup, so you cannot invent a universal selector. A safe option is to add a class or wrapper through the page's standard settings, if they are provided by the form or editor in use, and apply the rule in a child theme or the additional styles section.

Reviewing Access and the Final PDF Mode

For a document that recipients should not edit, flattening is part of the delivery review. It does not replace access control, but it helps make the final file more predictable to read. If PDF permissions need to be restricted, E2Pdf provides fields for an open password, owner password, and permissions. Do not describe these settings as guaranteed protection: a password-protected file can be forwarded, and site access management requires its own rules.

Before enabling restrictions, make a list of recipients. If the document must open without obstacles, an open password creates unnecessary support overhead. If the file is shared within a team, it is more important to verify recipient addresses, page access, and storage rules. Use a carefully agreed process for detailed permission settings: a lost owner password or poorly planned permission can block ordinary work with the document.

How to Roll Back a Questionable Setting

Change any setting that can affect delivery on a copy of the template or after creating a backup export. Then test one criterion. If you changed Inline, test opening in a separate tab. If you changed Auto Download, test form behavior. If you changed PDF Flatten, test editability and appearance. If you changed the font, test all characters and line wrapping. If the test fails, restore the previously saved value rather than changing neighboring settings at random.

For a complex live site, it is helpful to maintain one "reference template" that serves as a checkpoint and is never edited directly. You can copy and modify the working version, then assign it to delivery after testing. This is a simple organizational measure, but it reduces the risk of damaging a document during an urgent change.

Cache, Email, and External Extensions

When output does not update, E2Pdf is not always at fault. A page cache may display an old form message, while an email plugin may delay or reformat notifications. Diagnose the layers separately. First create a PDF through Export and verify the template itself. Then submit the form without changing the mail configuration and check the user-facing output. After that, test the attachment. This shows at which layer the expected value disappears.

If several forms or page builders are installed, do not enable every integration "for convenience" without knowing which ones are needed. E2Pdf settings include an extensions section, and support explicitly recommends checking whether the needed extension has been disabled. At the same time, enabling unnecessary extensions will not resolve an incorrect context. Use the minimum set and document which template needs each integration.

When to Stop and Avoid Adding Automation

Integrations for external systems and webhooks make sense when the preceding chain has already been tested and there is a specific need to transfer the output. Do not add them simply because a corresponding shortcode exists in the list. Every external step adds questions about access, retry behavior, and error handling. If the team cannot explain who receives the data, why, and what happens when the external system is unavailable, leave that part outside the initial setup.

Safe order of improvements: start with a tested template and minimal delivery, then configure fonts and PDF format, then conditions, and only after that add extra channels, storage, or external automation.

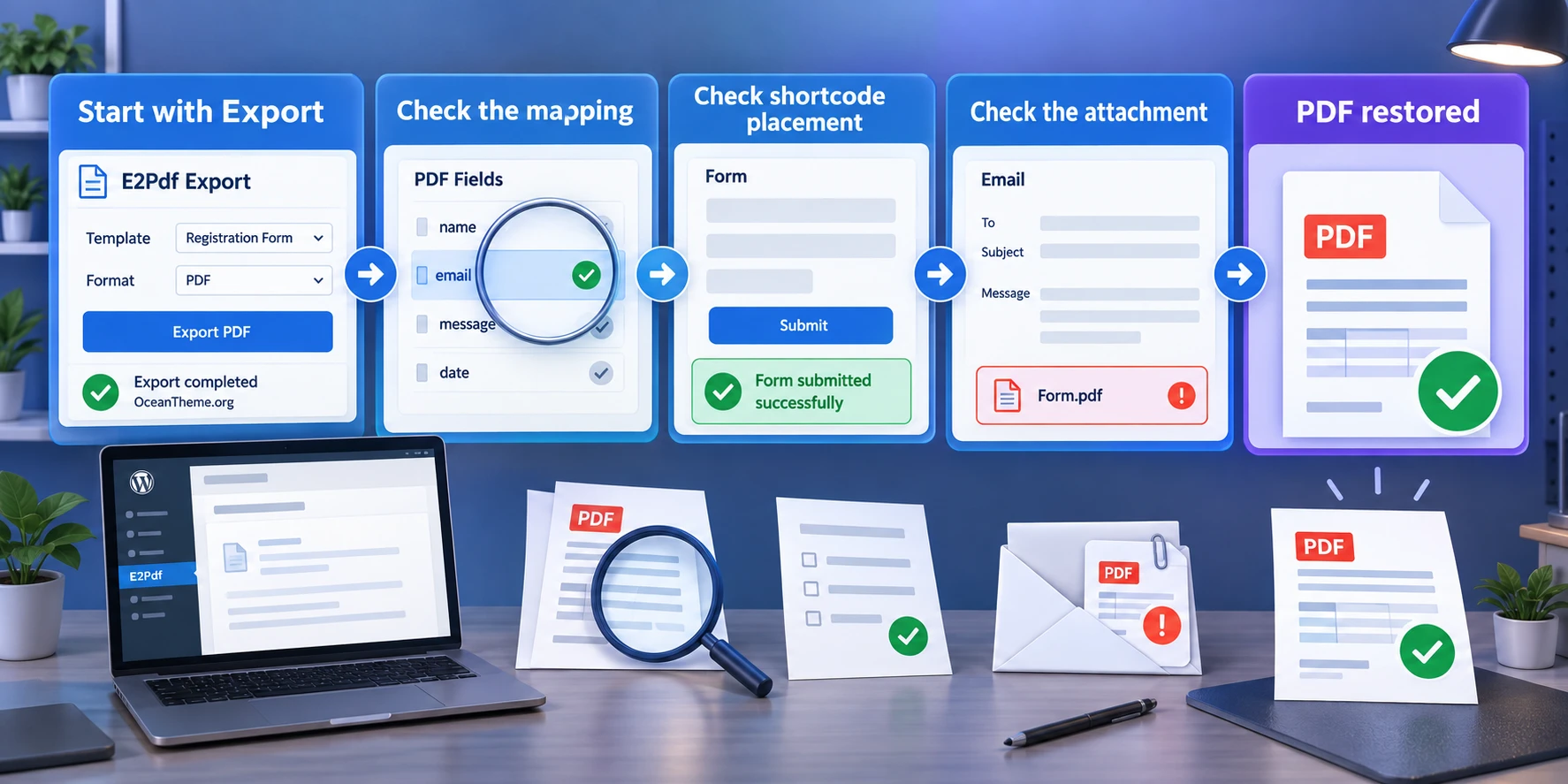

Troubleshooting E2Pdf: From Symptom to a Precise Check

E2Pdf support reveals recurring categories of requests: shortcodes are not processed, a PDF does not appear in the editor, a file is blank, an email arrives without an attachment, fields shift, or a blank page is added. These symptoms do not have a single universal cause. Useful troubleshooting begins by asking at which stage of the chain the output disappears: data source, template, mapping, activation, trigger point, PDF generation, or email delivery.

Do not change everything at once. Create one test data set with a distinctive name, open E2Pdf - Export, and generate the file directly. If it is incorrect there, the issue is in the template, data, or PDF settings rather than the form shortcode. If direct export is correct but the form does not show a button, move to the placement point. If the button appears but the email has no attachment, separate the email and PDF layers. This order reduces the number of false fixes.

The PDF Is Generated but Fields Are Blank

Symptom: the file opens and the static form is visible, but dynamic values are missing or only some fields are displayed. This usually means the template did not receive the expected context or an element is connected to the wrong field. Start with the basics: open the template settings and check Extension and Item. For a form, the selected object must match the exact form you are submitting. For pages and posts, the test must run on the correct object type.

What to check: submit a new test form with a clearly changed value, then run an export. Open one blank element in the editor and verify its connection again through Map. If manual syntax is used, reduce the expression to one source field. Check whether the form's technical name changed after the template was configured. Also make sure you are testing the active template rather than an old copy.

How to fix it: restore the correct connection, save the template, make sure it is activated, and repeat the direct export. Then test the form. When to roll back: if values disappeared after adding conditions or formatting, temporarily return the element to a simple confirmed mapping. Restore the data first, then reintroduce additional rules one at a time.

The Shortcode Appears as Plain Text or Does Not Create a Button

Symptom: after submitting the form, the user sees the literal shortcode text, the message does not change, or the PDF button is missing. The cause is often not the visual template, but the placement location. A global shortcode must be inserted where the selected integration can process the submission context. For Contact Form 7, this may be the form message or email body; another form may have its own supported fields.

What to check: compare the code with the active template identifier and confirm that an editor has not altered it. For Forminator, E2Pdf support materials specifically recommend checking E2Pdf - Settings - Extensions: the required integration must not be disabled. Then temporarily disable unrelated form add-ons only on a test copy if they alter the success message.

How to fix it: move the shortcode to the correct integration field, save the form, clear the public page cache, and make a new submission. When to roll back: if replacing the message structure causes ordinary notifications to break, restore the original message text, then add the shortcode as a separate short line after testing it on the test form.

The PDF Exists but the Email Arrives Without an Attachment

Symptom: the link or viewer works, but the notification does not contain a PDF. Do not conclude that the template is broken. User delivery and email attachments are triggered by different shortcodes and run through different parts of the form. Possible causes include placing the attachment code in an unsupported field, specifying another template identifier, an inactive template, or WordPress being unable to send an email with an attachment correctly.

What to check: first submit the form email without changing E2Pdf and confirm that it arrives at all. Then add one [e2pdf-attachment] with the correct identifier in the documented location, send a new test, and check the attachment size. Open the file from the email client, not only after downloading it. If it is zero-byte or blank, return to direct export and field mapping.

How to fix it: separate email delivery and PDF generation in the test log. Fix the layer where the error occurs first. When to roll back: if adding an attachment damages basic email delivery, temporarily restore the notification to its original form and involve an email configuration specialist. Do not try to compensate for delivery problems by changing PDF settings.

Text Overflows or an Extra Page Appears

Symptom: the document looks neat in a short test, but in a real application some text overlaps labels, runs off the page, or creates a blank page. E2Pdf support materials do include reports about extra blank pages, HTML field height, and element placement. This is usually a layout issue: an area is not designed for the value length, neighboring elements overlap, or HTML and images change the height.

What to check: use one specific long value and test it through export. Disable one potentially long element at a time, not the entire page. Compare the page format and source settings. For nested lists or HTML, do not add many new rules at once. If an image is used as a background or dynamic element, test without it to separate a sizing issue from a text issue.

How to fix it: enlarge the area, establish a clear boundary for input text, or divide the document into pages. For the final template, test at least three lengths: short, typical, and maximum practical. When to roll back: if compression or full flattening reduces quality, restore the previous value and choose a different optimization after comparing the actual output.

A Required Integration or Field Does Not Appear

Symptom: the required form is not available when creating a template, or visual mapping does not show the expected field. First confirm that the external form plugin is active, the form exists, and you are working on the same site or environment. Then review E2Pdf extension settings. In an older Gravity Forms support request, support identified the plugin path and a disabled integration as possible causes, so checking the extensions section is justified before attempting to reinstall everything.

What to check: create a clean test form with one ordinary text field. If it appears, the issue may be a special field or a copy of an old form. If it does not appear, check current version compatibility in the official documentation and changelog. Do not use one old forum reply as proof of current compatibility.

How to fix it: enable the confirmed required integration, update the working environment according to your plan, and repeat the test. When to roll back: if an update introduces a new error on the live site, restore the verified backup version only through the project's procedure and continue investigating on a copy.

Troubleshooting rule: record the exact symptom, one verification step, and one outcome. Saying "E2Pdf does not work" provides no point for a fix; saying "direct export contains data, but the form message has no button" already narrows the search to the trigger point.

When E2Pdf Is a Good Choice

E2Pdf fits well into a process where a site already has data and the team needs a repeatable PDF with its own layout and a verifiable delivery method. It is worth choosing when you are ready to maintain not only an attractive page, but also the source connection, mappings, shortcode, PDF settings, and control test. This approach turns the plugin into a manageable tool rather than a random button next to a form.

Start with one short document and one real task. Check the data source, template activation, exact mapping, delivery channel, and final file. Then add conditions, attachments, page continuation, and additional integrations. If these steps work reliably, you can download the E2Pdf archive and build your own test workflow on a site copy without putting real applications at risk.

The main sign of a mature configuration is simple: another staff member can open the process description, create a new test record, and receive a document with the expected data without manually searching through the editor. This is the level of repeatability to aim for when working with any personalized PDF in WordPress.

E2Pdf Configuration Video

This video complements the guide: a product video. Open it after completing the basic setup to compare the interface and sequence of actions.
