Meta Box Template - WordPress Plugin

Guide to Setting Up Meta Box Template for WordPress Custom Fields

Meta Box Template becomes useful when building field groups through the standard interface starts getting in the way of keeping a project under control. The plugin lets you define custom field groups in YAML files, keep those definitions alongside your theme or plugin, and get the same fields on the site that you would normally create through the familiar Meta Box interface. This guide is not a marketing overview. It walks through the real working process: preparation, installation, file structure, data output, result checks, and troubleshooting.

This material is aimed at webmasters and developers who already understand why a site needs custom fields: listing cards, product specs, editor blocks, page settings, and repeatable sections. The goal here is not just to enable the extension, but to build a workflow where fields do not disappear during migration, do not conflict with the theme, and do not turn into a messy pile of settings in the admin area.

The examples below follow a cautious approach: start with a test field group, verify it in the WordPress admin, and only then output the data on a public-facing page. That order reduces the risk of breaking a working template and helps you quickly identify where the issue actually is - in the template file, the Meta Box settings, or the output code.

What the Plugin Does and Why YAML Works Well in Real Projects

Meta Box Template is part of the Meta Box ecosystem and solves a narrow but important problem: it turns custom field configuration into a file that you can keep in a repository, move between environments, and reuse. Instead of manually creating each group in the WordPress interface, you describe the fields as a structure: the group ID, title, post type, context, priority, list of fields, their types, labels, and additional parameters.

The main benefit is not that YAML is somehow "prettier" than the interface. The real benefit is repeatability. If an agency is managing the project, a developer can place the field template in the theme, connect it through a setting or filter, and get the same structure on a local site, a staging server, and production. The field file becomes part of the project code rather than a hidden database setting that is easy to forget to export.

At the same time, Meta Box Template does not replace Meta Box itself. The base Meta Box plugin handles field registration and field behavior, while the Template extension provides a way to define those fields in YAML. That is why, when planning the setup, it is important to check the entire chain: whether the main Meta Box plugin is active, whether template loading is available, whether the file path is correct, whether the YAML is valid, and whether there is code that outputs the saved values on the site.

When This Approach Is Especially Useful

The plugin works well for projects where the field structure needs to stay stable and manageable. For example, a real estate catalog might use fields such as "Area," "City," "Number of Rooms," and "Deal Type"; an events site might need a date, location, organizer, and registration link; a case study library might need industry, stack, outcome, and project URL. If those fields are created manually in the admin area, it is easy to end up with different labels, different keys, and different settings across site copies.

A YAML template helps avoid that fragmentation. It clearly shows which fields are required for the project, which keys are used in the theme code, which parameters control repeatable groups, and where the editor is expected to enter data. For a developer, that is closer to documentation than to a one-time admin setup.

When Another Method Makes More Sense

Meta Box Template may be unnecessary for a small site that has just one simple field group and will be maintained only by a content manager without file access. If the user is more comfortable changing fields directly in the admin panel without involving a developer, a visual field management tool may be a better fit. This approach should also not be used as a quick way to "fix something on the live site" without testing first: one indentation mistake in YAML can stop the entire group from being registered.

Practical rule of thumb: if the field structure is part of the site's logic and should live alongside the theme or plugin, a YAML template makes sense. If fields are frequently changed by an editor without developer involvement, an interface-based approach may be the safer choice.

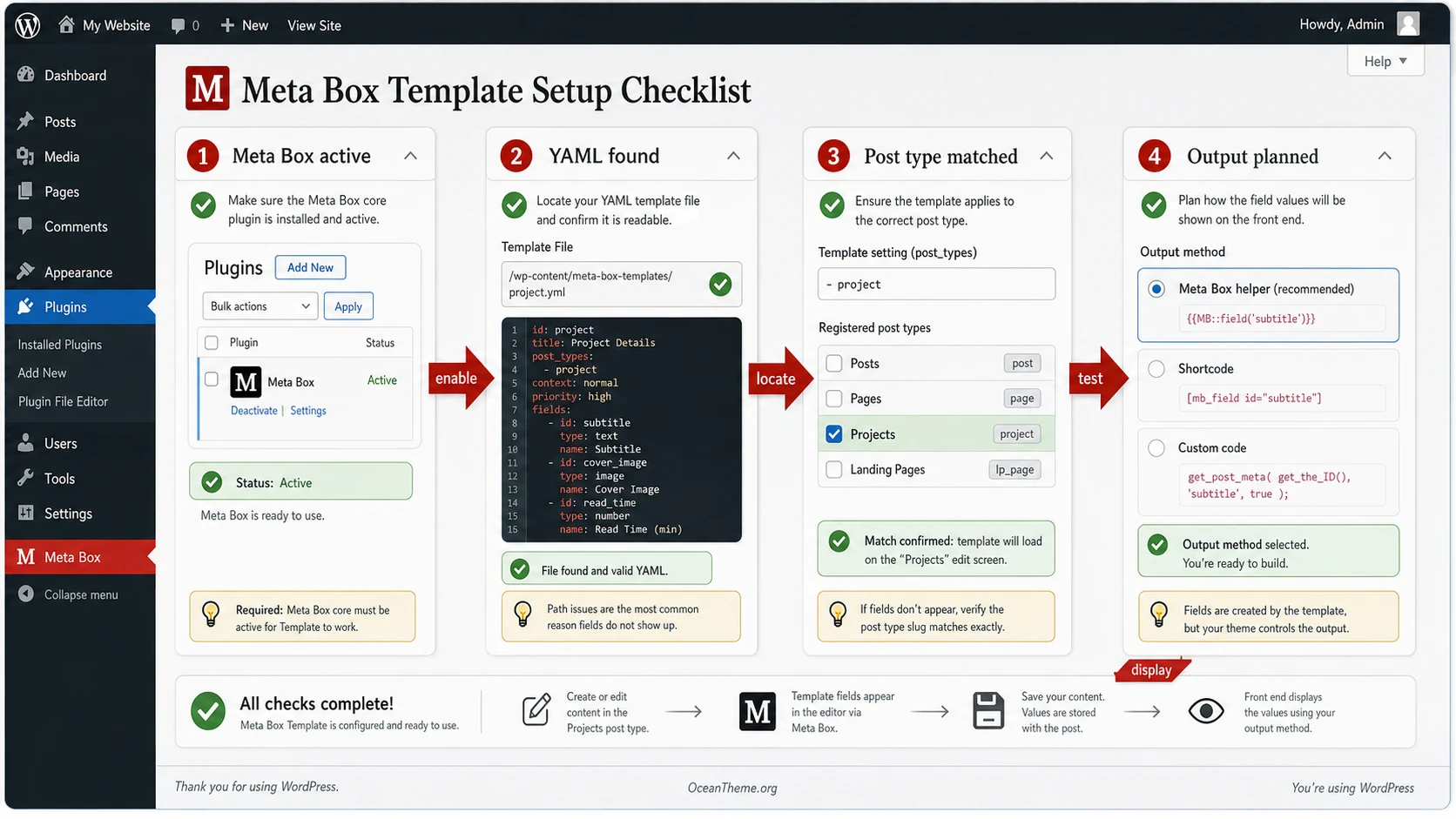

What to Check Before Installing and Enabling Templates

Before installation, separate the site's technical readiness from the plugin setup itself. Meta Box Template works best in a WordPress project where the base Meta Box plugin is already in place and there is a clear location for storing the file. Without that preparation, you can end up with a plugin that is active but no fields appear because the file was not found or could not be read.

Basic Requirements

• The main Meta Box plugin is installed and active, because it is the component that registers and manages custom fields.
• You have access to the files of the theme, child theme, or a small custom plugin if the template will be connected through code.
• You have a test post or page where you can check whether the meta box appears without affecting live content.
• You know which post type the group should be attached to: post, page, or a custom post type.
• You understand how the theme will output the values: through a Meta Box helper, a shortcode, or a custom template.

Do not skip the last point. A common mistake with custom fields is assuming that a saved field will automatically appear on the page. Meta Box stores the data and provides an API for retrieving values, but front-end output depends on the theme, the post template, the shortcode, or the block you use.

Where to Store the YAML File

The cleanest option is to keep templates in a controlled project folder, for example in a child theme or a small site-specific plugin. That way, the file will not disappear when the active theme changes and will not be accidentally overwritten during a parent theme update. If the project uses version control, YAML templates should live alongside the output templates as well.

For the first test, it is best to start with one file and one field group. Do not create dozens of fields and multiple layers of repeatable groups right away. First, make sure a simple text field appears, saves correctly, and outputs properly. Then expand the template.

Installing Meta Box Template and Running the First Check

Installation usually works like any other WordPress plugin: upload the plugin file through the admin panel or install it using the project's usual method, then activate the extension. The important thing is not to stop at the "active" status. For the Template extension, the real check starts only when WordPress reads the YAML file and displays the field group on the correct post type.

1. Make sure the main Meta Box plugin is active and not reporting missing dependencies.
2. Activate Meta Box Template.
3. Create a simple YAML file with one test field group.
4. Connect that file through the extension settings or with a filter if the project uses a code-based approach.
5. Open a test item of the required post type and look for the new meta box.
6. Enter a value, save the post, and reload the editing screen.

If the field is still filled in after the page reloads, the basic part is working: the file was read, the group was registered, and the value is being saved. The next step is to verify front-end output. If the field does not appear, do not jump into advanced settings. First check the file path, YAML syntax, post type, and whether the base Meta Box plugin is installed.

Example of a Minimal YAML File

This is not a universal template for every project. It is a safe starting structure that helps you verify the "file - group - field - save" chain without adding complex dependencies.

fields:
  - id: project_subtitle
    name: Project subtitle
    type: text
    desc: Short subtitle for the project page
settings:
  title: Project details
  post_types:
    - page
  context: normal
  priority: high

You can keep field names in English inside the interface if that is how the project team manages the codebase. For a Russian-language site, what matters more is that the editor understands what the field is for. If the editorial team works only in Russian, labels can be localized, but id keys are best kept stable, in Latin characters, and without spaces.

How to Tell Whether the First Test Succeeded

Open the editing screen, find the Project details box, fill in the field, and save the post. After refreshing, the value should still be there. Then verify that the project_subtitle key is available in the database or through a Meta Box helper. A successful test is not just the appearance of the meta box, but the fact that the value still exists after the post is updated.

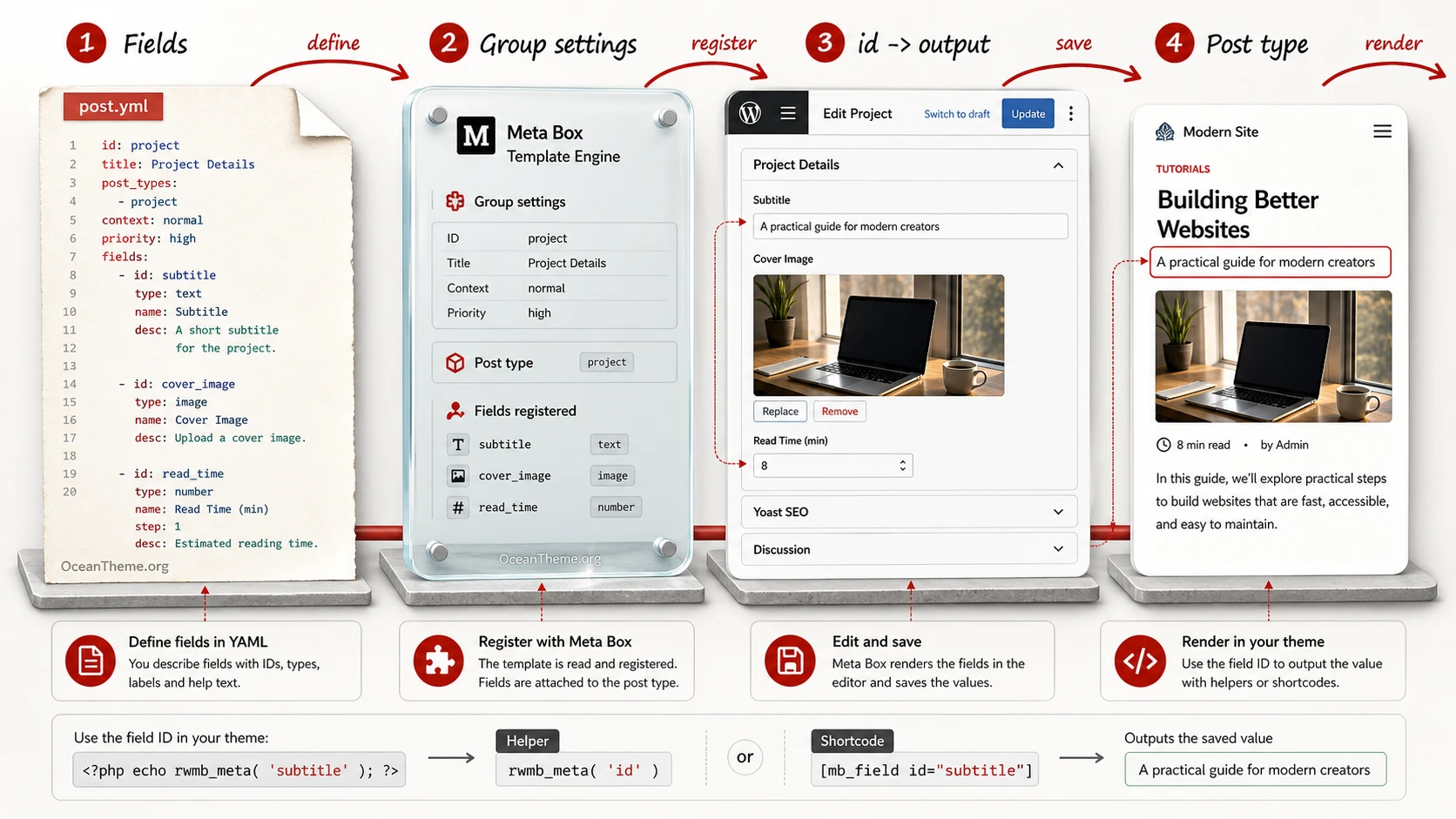

How the YAML Template Is Structured: Fields, Group Settings, and Project Readability

YAML requires careful indentation. That is not a weakness of the format but the tradeoff for a readable structure. In Meta Box Template, it is important to distinguish between two levels: group settings and the list of fields. Group settings determine where and how the meta box appears. Fields determine what data the editor enters and which keys the theme will later use.

Fields and Keys

Each field should have a stable id. That key is later used when outputting data, so changing it on a live site should be done carefully. If you rename project_subtitle to subtitle, the old saved values do not physically disappear, but the output template will now look for a different key. On a content site, this looks like "the data disappeared," even though in reality the address the theme uses to read the data has changed.

The field type should be chosen from the types supported by Meta Box. The Meta Box documentation covers text, textarea, select, checkbox, image, file, group, and other options. In a template, it is best to begin with simple fields and only add repeatable groups and complex media fields after the basic chain has been verified.

Group Settings

Group settings define the meta box title, post types, context, and priority. In a real project, these parameters matter for editor usability. For example, fields for a service page should appear on the post type where services are actually edited, not on every page across the site. If the meta box appears everywhere, editors start filling in data where the template does not expect it.

If the table feels almost too simple, that is a good sign. A reliable custom field structure rarely starts with a large number of special parameters. It starts with stable keys, clear labels, and predictable post type targeting.

Connecting the File Through Settings or Project Code

Meta Box Template supports working with templates as files. In a simple setup, the file path can be specified through the extension interface. In a project-based setup, it is usually more convenient to manage the file list in code, especially if there are several templates or they live inside the theme, child theme, or a custom plugin.

When the Interface Is Enough

The interface-based approach works well for tests, small sites, and situations where the administrator has a clear file structure to work with. It is easier to explain: place the file, enter the path, check the post. The downside is that the setting lives in the admin area rather than next to the theme code. When the project is moved, you need to separately confirm that the path is still correct in the new environment.

When a Filter Is the Better Choice

For version-controlled development, it is usually more convenient to connect YAML files through the meta_box_template_files filter. That code can live in a child theme or a small project plugin. The example below shows the idea: we add the path to project-fields.yaml, which is stored in the meta-box-templates folder of the active theme.

<?php
add_filter( 'meta_box_template_files', function( $files ) {
    $files[] = get_stylesheet_directory() . '/meta-box-templates/project-fields.yaml';
    return $files;
} );

This snippet is best placed in a child theme or a site-specific plugin. Do not edit WordPress core, Meta Box files, or the parent theme files. If the meta box does not appear after adding the code, temporarily comment out the filter, check the path, and make sure the file is actually available at the exact location returned by get_stylesheet_directory().

Checking the Path Without Risky Actions

The safest check is to place a deliberately simple field group in that file and open the required post type. If the group appears, the path is being read. If not, check folder capitalization, the file extension, YAML syntax, and whether the code is running in the active theme or plugin. Do not begin troubleshooting by reinstalling WordPress or switching themes: most of the time, the issue is in the path or the indentation.

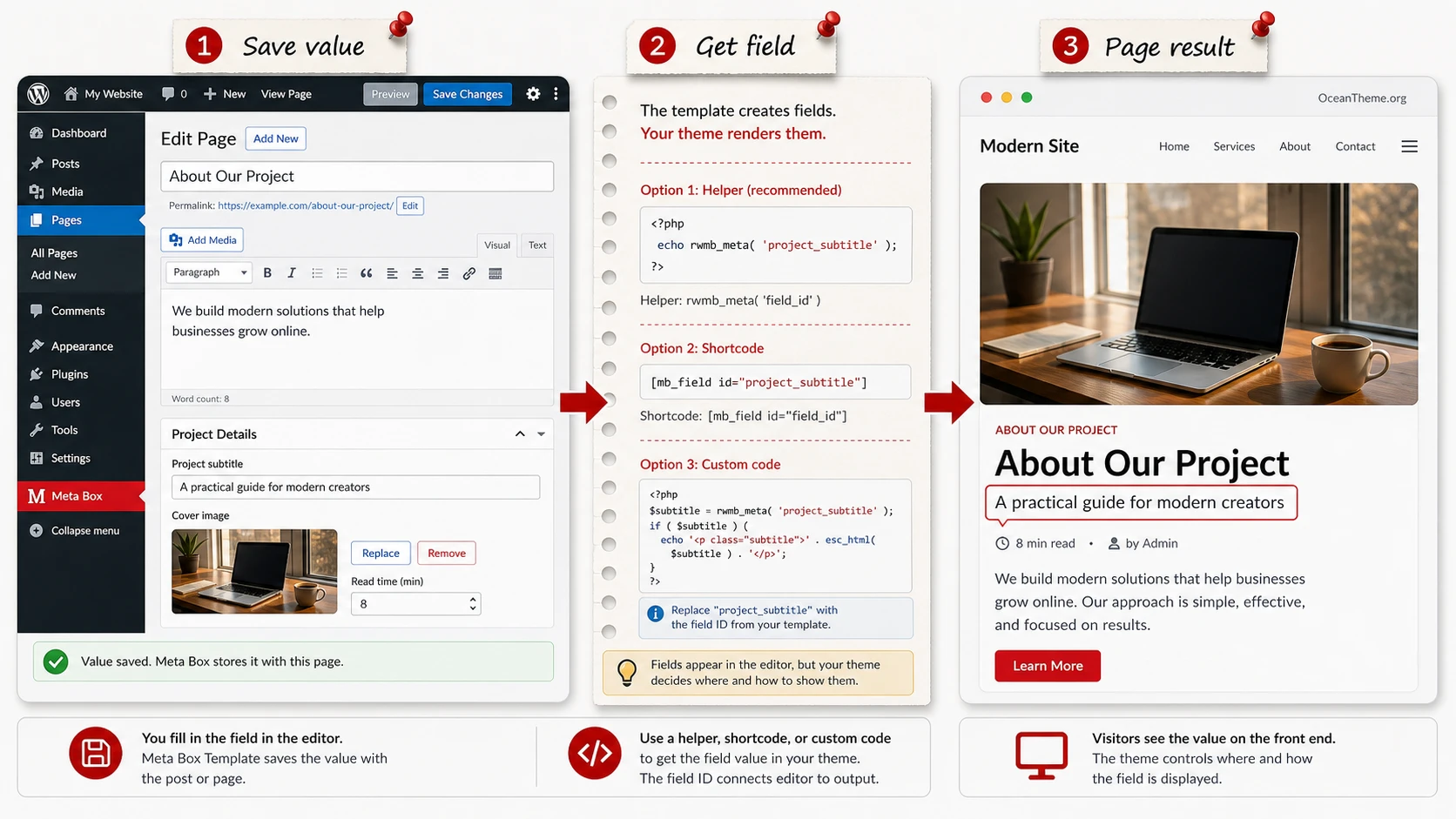

Displaying Values on the Site: Shortcode, Helper, and Theme Template

Once the fields are being saved, the main practical question becomes how to show those values to visitors. Meta Box provides several ways to retrieve data. For quick insertions, you can use the Meta Box shortcode; for theme templates, helper functions such as rwmb_meta(); and for more complex markup, clean PHP in a template file. The right choice depends on who maintains the site and how permanent the output needs to be.

Shortcode for Simple Output

A shortcode is convenient when you need to quickly display a single value inside content or in a block that supports shortcodes. It is not the best choice for a complex card with conditions, but it is a good testing tool: if the value is displayed through a shortcode, that means it is saved and available.

Use the shortcode according to the Meta Box documentation, and verify the current syntax based on the versions of the extensions installed on your site. Do not mix old examples from random articles with the current project documentation.

Output in the Theme Template

For stable front-end output, a theme template is often the better option. For example, the project_subtitle field can be displayed next to the page title if it has a value. It is important to escape the result because custom fields may contain data that ends up in HTML.

<?php
$subtitle = rwmb_meta( 'project_subtitle' );

if ( ! empty( $subtitle ) ) {
    echo '<p class="project-subtitle">' . esc_html( $subtitle ) . '</p>';
}

This snippet does not depend directly on Meta Box Template. The Template extension creates the field, while rwmb_meta() retrieves the saved value. That division clearly shows the separation of responsibilities: YAML defines the data structure, and the theme decides where and how to display it.

What to Check After Adding Output

• The value appears only on pages where the field is filled in.
• An empty field does not leave an unnecessary blank block in the layout.
• The text is escaped and does not break the HTML.
• The page cache has been cleared if the site uses a caching plugin or server-side cache.
• The output does not depend on user role and is visible to a regular visitor if the information is meant to be public.

Practical Example: A Project Page with Managed Fields

Let us walk through a scenario that works well for an agency, portfolio, or case study catalog. The goal is to add several structured fields to a project page: a subtitle, industry, technology stack, and a link to the final result. This is not a full CRM or a separate catalog. It is a typical case where Meta Box Template helps keep fields in code instead of recreating them manually in every environment.

Goal and Preparation

The editor should see a clear Project details box on project pages, fill in the data, and let the theme display it in a clean area below the title. Before you begin, Meta Box should be active, the Template extension should be enabled, you should have a test page, and there should be a location ready for the YAML file. If the site has a dedicated project post type, use it. If not, you can attach the group to page for testing.

Setup Steps

1. Create a YAML file with the Project details group and fields for subtitle, industry, technologies, and a link.
2. Connect the file through the Meta Box Template interface or with the meta_box_template_files filter.
3. Open the test page and confirm that the meta box appears only for the correct post type.
4. Fill in the fields with short test values, save the post, and reload the editing screen.
5. Add output to the theme template only for values that are actually filled in.
6. Open the page as a regular visitor and verify the front-end result.

Expected Result

In the admin area, the editor sees a structured block. On the page, the visitor sees properly displayed project details instead of loose text dropped into the content. The subtitle can appear under the title, the industry can appear in a short line, the technologies can appear as a list or tags, and the link can become a separate button if it is filled in.

The key detail is that YAML does not create the design automatically. It only guarantees that data is entered into the right fields. The visual presentation depends on the theme. That is why it helps to agree on field keys and HTML markup in advance: if the editor fills in project_stack, the template must read project_stack, not some random legacy key.

Quick check after this example: change one value, save the post, clear the cache, and reload the page in a private window. If the new value is visible to a visitor, the full chain is working.

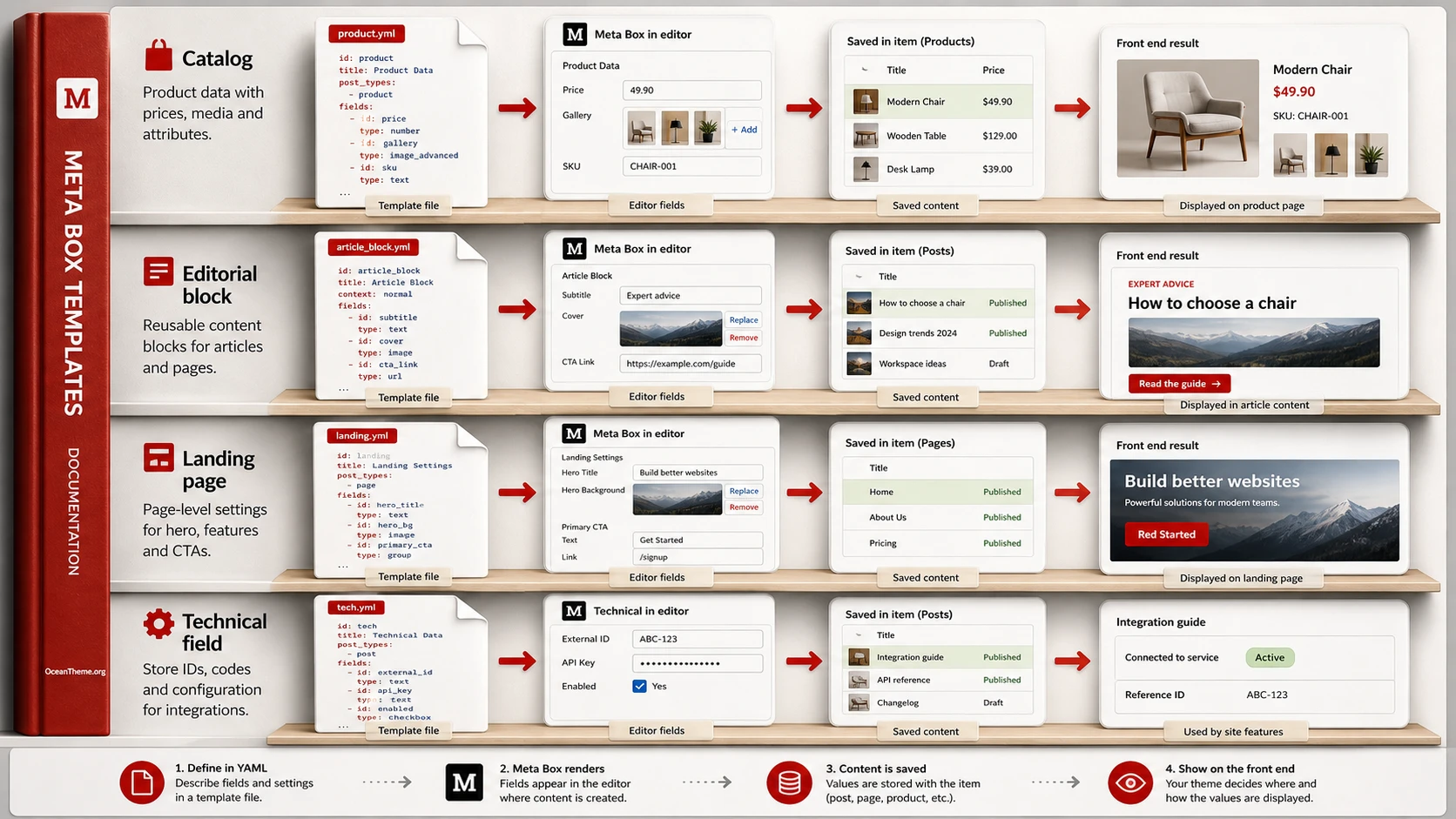

Practical Use Cases Where Field Templates Bring Order

Meta Box Template is useful for more than just portfolio pages. Its value becomes clear anywhere an editor needs to fill in a repeatable structure and a developer needs to guarantee stable keys and predictable output. Below are several scenarios you can adapt without inventing hidden features the product does not actually have.

Property or Service Catalog

For a catalog of real estate, services, equipment, or specialists, a YAML template helps enforce consistent attributes. The editor does not write "area," "size," and "square footage" in different places, but fills in one defined field instead. The theme can then output that value in a card, filter, or table if that logic already exists in the project.

Editorial Blocks for Pages

Content-heavy sites often need extra fields: author credit, source, short summary, difficulty level, or a material link. Those fields are better kept separate from the main text so the template can display them in the right place. Meta Box Template helps define them once and move that structure across environments.

Landing Page Settings

If the theme uses custom fields for a hero section, call to action, or benefit cards, a YAML template makes the structure transparent. But this is also where it is especially important not to mix data and design. The field stores text, a link, or an image, while the grid, color, and responsiveness remain the theme's responsibility.

Developer-Facing Data

Sometimes fields are needed not for the editor, but for the code: a flag, an external system identifier, or a short technical status. In those cases, the label should make sense to an administrator, while the key should stay stable for integration. Do not use custom fields to store secrets, access tokens, or private keys. Those belong in separate storage and access-control mechanisms.

How to Verify the Result After Setup

Result checking should follow the full chain rather than relying on a single glance at the admin panel. With Meta Box Template, there are four levels: the file is found, the group is registered, the value is saved, and the value is output. If you skip one level, troubleshooting turns into guesswork.

Check in the Admin Area

Open a post of the required type and make sure the meta box appears where you expect it. If the group is meant for pages only, it should not appear on regular posts. If the group is attached to a custom post type, check that exact type. A mistake in post_types often looks like "the plugin does not work," when in reality the group is simply attached to the wrong place.

Check That the Value Saves

Enter a test value, save the post, and then reload the screen. If the value disappears, the issue may be an incorrect field key, a syntax problem, a field conflict, or a type setting issue. Do not move on to front-end output until the value saves correctly in the admin area.

Check the Public-Facing Site

Open the page in a private window or while logged out as a regular visitor. This helps catch cases where an administrator sees data because of the toolbar or cache while visitors do not. If caching is involved, clear it after changing the template or the field value. For dynamic blocks, also check mobile width, because the field output may have been inserted into an area that does not behave well on a narrow screen.

Check After Site Migration

After a migration or deployment, verify not only that the plugins are present but also that the YAML file path is still valid. An absolute path that worked on your local machine may not exist on the server. That is why it is better to use WordPress functions to build paths in code instead of hardcoding full filesystem locations.

Safe Improvements and Good Working Habits

With Meta Box Template, safe improvements are usually less about hacks and more about project discipline: stable keys, clear files, verified output, and careful handling of values. Code changes are worth adding only where they genuinely make maintenance easier.

Split Templates by Purpose

If the site has several major areas - projects, services, events, page settings - do not put everything into one huge YAML file. Split files by purpose and connect them as a list. That makes it easier to review changes, find an indentation error, and discuss edits with the team.

Define Rules for Keys

Use short, clear keys in Latin characters: project_subtitle, event_date, service_price_note. Do not change a key after launch if content has already been entered. If renaming is unavoidable, plan a data migration and a temporary fallback in the output template.

Add Light CSS for Output

If the theme displays extra fields in a separate block, you can add a small CSS snippet to the child theme or to WordPress's built-in custom CSS area. This does not depend on Meta Box internals and does not modify plugin files.

.project-meta {
  display: grid;
  gap: 0.5rem;
  margin: 1.25rem 0;
}

.project-meta__label {
  font-weight: 600;
}

The check is simple: open a page with filled fields and a page without them. The block should not create empty spacing where no data exists. Rolling back is safe as well - just remove the CSS or temporarily comment out the rules.

Do Not Store Sensitive Data in Fields

Custom fields are convenient for content, but they are not appropriate for secret tokens, passwords, or private keys. Even if a field is not displayed in the theme, that does not make it secure storage. Use separate mechanisms for sensitive data and verify access permissions carefully.

If the Fields Do Not Appear or the Data Does Not Display

Troubleshooting Meta Box Template should move from simple to complex. Most issues are not caused by a "broken WordPress site," but by a specific point in the chain: the file was not read, the YAML contains an error, the group is attached to the wrong post type, the value is not saved, or the theme is reading a different key.

The Meta Box Does Not Appear in the Editor

Symptom: the plugin is active, but the new field group is missing from the editing screen. Possible causes include an incorrect YAML file path, indentation errors, a group attached to a different post type, or the main Meta Box plugin not being active.

Check whether you are opening the correct post type. Then temporarily simplify the YAML down to one text field and one group. If the simple group appears, the error was in the more complex part of the template. If it still does not appear, check the file connection method and confirm that the base Meta Box plugin is available.

The Field Appears but the Value Does Not Save

Symptom: the field is visible, but after saving, the post opens with an empty field. Check whether the id is unique, whether the field type is valid, and whether there is a conflict with another field using the same key. If you are using complex groups or repeatable fields, go back to a simple field first and make sure basic saving works.

The Value Saves but Is Not Visible on the Page

Symptom: the data exists in the admin area but is missing on the public-facing page. In that case, the Template extension has already done its part. Check the theme code, the key in rwmb_meta(), the display conditions, the page cache, and whether you are looking at the correct post template. A common cause is that the theme is reading an old key or the output block is placed in a template that the current page does not use.

Everything Worked After Migration, Then Disappeared

Symptom: the fields are present on the local copy but missing on the server. Start by checking the YAML file path. An absolute path may have changed, or the file may never have been included in deployment. Then check active plugins, file read permissions, and whether the child theme is actually active.

The Editor Sees Too Many Fields

Symptom: meta boxes appear on post types where they are not needed, or the editing screen feels overloaded. Check post_types, split groups by purpose, and do not add fields "just in case." If a field does not affect a specific output template, the editor does not need to see it.

When it is better to roll back the change: if adding a new YAML file causes several groups to disappear or the editor starts producing errors, restore the last working file and enable the new fields one at a time. With YAML, that is usually faster than trying to locate the error inside one large change.

Limitations, Compatibility, and Careful Theme Integration

Meta Box Template does not promise to automatically solve design, search, filtering, indexing, or site performance. It manages field definitions. Everything that happens after that - output, filters, schema markup, cards, responsiveness - depends on the theme, other extensions, and the project code.

Theme Compatibility

The theme has to know what to do with the new fields. If you add a "Project subtitle" field but the page template never outputs it, visitors will not see anything. That is why field setup works best when done alongside output template setup. First create the field, then add safe output, then verify the result.

Cache and Dynamic Output

If the data does not update on the public-facing page immediately after saving, do not assume Meta Box Template is failing. Clear the page cache, object cache, or caching plugin if one is in use. For fields that rarely change, cache is usually not a problem, but during testing it often hides recent edits.

SEO and Structured Data

Custom fields can help SEO only indirectly: they provide structured data that the theme can output in content, cards, tables, or markup. The mere presence of a field does not improve rankings. If a field is supposed to appear in schema markup or in key page text, verify the final HTML rather than relying only on what you see in the admin area.

Permissions and Editorial Workflow

If the fields are visible to people with different roles, think through who should be allowed to change the values. Meta Box and WordPress provide role and capability mechanisms, but the exact policy depends on the project. Do not use custom fields as a substitute for an access-control system.

Input Validation and Protection Against Sloppy Content

Meta Box Template helps define the field structure, but the quality of the entered data still needs to be controlled. In a real project, editor mistakes do not always show up immediately: a bad link breaks a button, an overly long string stretches a content card, an empty required field leaves a hole in the template, and HTML inside a plain text field may behave differently than expected. That is why, after setting up a field group, it is worth thinking not only about how the field looks in the admin area, but also about which values should be allowed.

Validation: When a Value Should Be Stopped Before Save

The Meta Box documentation describes validation rules that help prevent obviously incorrect values from being saved. In Meta Box Template, this is especially useful where the data structure matters more than editorial freedom: a link should be a link, a number should be a number, and a required field should not be left blank. There is no need to turn every field into a rigid form with ten restrictions, but key fields used in public output are worth protecting.

A practical approach is to first identify what will break on the page if the editor makes a mistake. If an empty subtitle simply does not render, strict validation may be unnecessary. If an empty event date makes the entire card meaningless, validation is justified. Validation should protect the result, not make the editor's job harder for no reason.

What to Validate First

• Required fields without which the public-facing block loses its purpose.
• URL fields used in buttons, cards, and external links.
• Numeric values if they are used for sorting, filtering, or calculations in the theme.
• Short text fields that appear in a limited area of the interface.

After adding validation, be sure to test an invalid scenario. Enter an empty value, an incorrect URL, or an overly long string and see what message the editor gets. If the message is unclear, people will start working around the field or asking an administrator to "just save it as is."

Sanitization: When a Value Should Be Normalized for Safe Storage and Output

Validation answers the question "should this value be saved," while sanitization answers "in what form should this value be stored and displayed." For plain text, safely escaping the value in the theme template is usually enough. For fields that allow links, addresses, HTML fragments, or media, the approach should be more careful and should follow the Meta Box and WordPress documentation.

Do not try to handle sanitization inside YAML using random examples from forums. If an exact rule is not confirmed by the documentation, it is better to keep the field simple and handle output in the theme template using standard WordPress functions: esc_html() for plain text, esc_url() for links, and wp_kses_post() only where limited HTML is genuinely allowed. That way, you are not basing security on guesswork and you keep the Template file simpler.

Editorial Guidance Instead of Hidden Rules

A good field group tells the editor what to enter. Use a clear field description, a meaningful name, and a logical order. If a field accepts a short subtitle, say in the description that it is a single line for a card or the top section of the page. If a field stores an external link, specify that a full URL is required. Guidance like this reduces mistakes more effectively than strict rules with no explanation.

There is a downside as well: do not turn the admin panel into a multi-screen instruction manual. Long explanations are better kept in internal project documentation, while the field itself should contain only a short hint. YAML makes this especially convenient: the field description sits right next to the key, so the developer can immediately see what the editor is expected to understand.

How to Verify This Layer After Setup

1. Fill in a post with valid values and confirm that everything saves correctly.
2. Enter one clearly invalid value and make sure the editor gets a clear response.
3. Open the public-facing page and verify that the output is escaped and does not break the HTML.
4. Check empty fields: the theme should hide optional blocks instead of displaying empty labels.
5. Restore valid values and save the post again to make sure validation does not interfere with normal work.

This section is especially important for sites where multiple people fill in fields. Meta Box Template helps standardize the structure, but input discipline and safe output are still part of the editorial workflow. If you build in validation, guidance, and escaping from the start, custom fields become more than just a convenient form - they become a reliable data layer for the theme.

When It Makes Sense to Start Testing on Your Own Site

Meta Box Template is a strong choice if you want to keep the field structure next to your project code, reuse it across environments, and rely less on manual settings stored in the database. It is especially well suited to sites where custom fields are already part of the templates: catalogs, portfolios, service pages, editorial cards, and project settings.

Before rolling it out on a live site, run a small test: one group, one field, one post type, and one output in the template. After that, expand the YAML file and add new fields gradually. That path only looks slower at first. In practice, it is faster than trying to find an error in a large file where the path, syntax, post type, and output code all changed at once.

If, after testing, you can see that the file-based approach fits your project, you can download the installation file, install it in a test environment, and repeat the workflow from this guide on a copy of the site. Do not move a complex template straight to production: first confirm that the fields appear, save correctly, and display exactly where they should.

The final criterion is simple: the editor understands what to fill in, the developer knows where the fields are defined, the visitor sees a clean result, and the administrator can restore the structure after a migration. If that chain holds, Meta Box Template is doing its job correctly.
