How to Configure Meta Box Columns for Cleaner WordPress Field Layouts

Meta Box Columns is useful when your custom fields are already working, but the editing form has become too long and awkward to use. In this guide, we are not covering the general idea behind Meta Box. Instead, we will focus on a practical task: how to arrange fields into a clear grid, when a simple setup is enough, when it makes sense to move to the advanced syntax, and how to verify that the form is actually easier for editors to work with.

This plugin belongs to the Meta Box ecosystem and changes only the field layout inside the WordPress admin. It does not display data on the front end by itself, it does not replace your theme templates, and it does not make fields "smarter." Its role is purely visual organization of the input form: several short fields can sit on one row, a long field can stay full width, and complex groups can become much easier to read.

This guide is intended for developers, webmasters, and site owners who already use custom fields or are just planning a structure for a directory, expert database, events listing, real estate site, portfolio, reference catalog, or internal CRM built on WordPress. We will cover safe installation, the 12-column grid, configuration through MB Builder and code, common mistakes, limitations, and similar solutions.

What problem this extension solves in the editing form

When a post has only two or three extra fields, a vertical list is fine. Problems start when a custom post type collects a dozen short values: name, phone, email, city, status, date, link, coordinates, internal note. Each field takes its own row, the editor has to scroll constantly, and the relationship between fields gets lost.

Meta Box Columns solves this with a 12-column grid inside a meta box. The developer or administrator sets how many grid columns each field should occupy. For example, three fields with a width of 4 fit on one row, two fields with a width of 6 split a row in half, and a field with a width of 12 stays full width.

This is similar to grid systems in interface frameworks, but it should be used carefully. The grid should not turn the form into a cramped set of tiny cells. A good layout helps the editor see related data together: contacts on one row, event parameters side by side, technical statuses separated out, and long text below.

Where columns are especially useful

The plugin works best in forms that contain many short, logically related fields. It is not necessary for every data set. If a field is naturally wide, such as an editor, gallery, map, or long description, it usually needs the full row. If a field is short and belongs next to nearby values, a column saves space and makes the interface easier to use.

• People and organization profiles. It is helpful to see name, title, email, phone, and city together because the editor reviews them as one contact block.
• Events and schedules. Date, start time, end time, location, and status are usually entered together and work well in two-column or three-column rows.
• Real estate and directories. Area, price, room count, neighborhood, and property type can be grouped so the editor does not have to hunt for them across a long page.
• Block or template settings. If a custom block stores several numeric and toggle-based settings, the grid helps separate short settings from the main content.

Rule of thumb: if the editor needs to compare values, place them side by side. If they need to read or write long text, keep the field full width.

Who this field organization approach works best for

Meta Box Columns is especially useful for teams already working within the Meta Box model: creating field groups, using MB Builder, or registering fields through the rwmb_meta_boxes filter. In that kind of project, the extension adds a layout layer without forcing you to move to a different field builder.

For a developer, this is a quick way to improve the client’s admin experience. For a content manager, it means less scrolling and fewer chances to miss a field. For an agency, it creates a way to standardize input forms across multiple sites without rewriting public-facing templates.

When the product may be unnecessary

You should not install the plugin just to get a "prettier" interface if the form is already short. It also will not solve problems related to data storage, front-end output, theme template integration, or the performance of heavy queries. If you are not using Meta Box, or if all of your fields are built in another system, first consider whether it is simpler to use the native tools built into that platform.

There is one more important point: Meta Box Columns works with the editing form. Columns in the WordPress admin do not mean columns on the public-facing site. To display values for visitors, you still need a theme template, MB Views, blocks, shortcodes, or another output method that fits your architecture.

What to check before installing it on a live site

Before installation, do not start with the Activate button. The plugin affects the editing interface, so it is safer to first understand which field groups already exist, where they are used, and who will be working with them. This is especially important on sites where editors update a directory, event listing, or item profiles every day.

A quick map of your current fields

Make a short list of the field groups you want to improve. For each group, note the following:

• Which post type, taxonomy, user profile, or settings page the group belongs to.
• Which fields are short and can sit side by side.
• Which fields should stay wide: visual editor, map, gallery, file upload, long description.
• Whether the group contains nested groups, repeaters, conditional logic, tabs, or fields tied to other Meta Box extensions.
• Which editors work with this form and what screens they most often use to edit entries.

This map is not just a formality. It protects you from a common mistake: giving every field the same width, ending up with a compact but unreadable interface, and then trying to figure out why editors started making more data-entry errors.

Compatibility and backup check

Because Meta Box Columns is an extension for Meta Box, first verify that the base Meta Box plugin is installed and active. If the fields are created through MB Builder, make sure the required group is present in the interface and that you understand where column width is configured. If the fields are registered in code, locate the file or plugin where the $meta_boxes array is defined.

On a live site, the safe order is this: create a backup, repeat the change on a staging copy, test the form with different user roles, and only then move the configuration to production. In most cases, the layout itself does not change saved values, but an error in the field registration code can break how the group appears in the admin area.

Installation and the first check in the admin area

After that preparation, install the extension the standard way for a WordPress plugin: upload the ZIP archive through Plugins - Add New - Upload Plugin, activate it, and make sure the base Meta Box plugin is active as well. Do not mix installation with license purchase or registration in this guide. What matters here is configuring the file you already have.

The first check is simple: open your custom field group and see whether the column setting appears where it is supposed to be available. In MB Builder, this is a field setting. In code-based registration, it is an array parameter. If you are working with an older project where fields were declared manually, it is usually better to test one small group first instead of rewriting the entire setup at once.

What a successful activation looks like

A successful install does not necessarily mean a new, large settings screen appears. For an extension like this, normal behavior is the appearance of additional options inside the existing Meta Box workflow. Check three things:

1. The field group opens without errors in the admin area.
2. You can assign a column width to a field through the interface or code.
3. On the post editing screen, the fields line up side by side after you save the group and refresh the page.

If you do not see any changes after activation, that is not always a problem. Columns only start working where you explicitly assign widths. The plugin does not automatically rebuild every form, because automatic layout changes could make important editorial workflows worse.

The 12-column grid: how to think about field widths

The core rule of Meta Box Columns is simple: one row should add up to 12. That does not mean every row must be filled to the last unit, but if you want a predictable grid, it is best to design rows with that structure in mind. If the total feels random, the interface may wrap in ways you did not expect.

Basic combinations

For real-world forms, a few common combinations are usually enough. You do not need to invent a complex grid for every single field.

The grid should support the meaning of the form. If you are tempted to force four fields into one row just to save space, check whether the labels and values become too cramped. In many cases, two rows with two fields each are easier to read than one overloaded row of four.

Simple syntax for individual fields

In code, the most straightforward approach is to add the columns parameter directly to the field array. For example, three short fields with a width of 4 create a row of three columns. This works well when each field has its own width and you do not need more advanced column logic.

add_filter( 'rwmb_meta_boxes', 'prefix_register_person_fields' );

function prefix_register_person_fields( $meta_boxes ) {
    $meta_boxes[] = [
        'title'  => 'Person contacts',
        'fields' => [
            [
                'name'    => 'Name',
                'id'      => 'person_name',
                'type'    => 'text',
                'columns' => 4,
            ],
            [
                'name'    => 'Email',
                'id'      => 'person_email',
                'type'    => 'email',
                'columns' => 4,
            ],
            [
                'name'    => 'Phone',
                'id'      => 'person_phone',
                'type'    => 'text',
                'columns' => 4,
            ],
            [
                'name'    => 'Bio',
                'id'      => 'person_bio',
                'type'    => 'textarea',
                'columns' => 12,
            ],
        ],
    ];

    return $meta_boxes;
}

After saving the code, open an entry of the relevant type and check not just the visual result, but also data saving. Fill in the fields, click Update, refresh the page, and make sure the values did not disappear.

Advanced syntax: when several fields need to live in one column

The simple columns parameter is convenient as long as each field is its own grid cell. But sometimes you need to create two large areas: contact information on the left, and address, status, and internal notes on the right. In that case, the advanced syntax is useful: columns are defined at the meta box level, and fields are assigned to the appropriate column through the column parameter.

This approach is best used deliberately. It is harder to read, but it lets you place multiple fields inside the same column and add a custom CSS class for styling. For example, you can create a left column with a width of 4, a right column with a width of 8, and then place several related fields inside the right column.

Example layout for an expert profile

add_filter( 'rwmb_meta_boxes', 'prefix_register_expert_profile_box' );

function prefix_register_expert_profile_box( $meta_boxes ) {
    $meta_boxes[] = [
        'id'      => 'expert-profile',
        'title'   => 'Expert profile',
        'columns' => [
            'profile-main' => [
                'size'  => 8,
                'class' => 'rwmb-profile-main',
            ],
            'profile-side' => [
                'size'  => 4,
                'class' => 'rwmb-profile-side',
            ],
        ],
        'fields'  => [
            [
                'name'   => 'Full name',
                'id'     => 'expert_full_name',
                'type'   => 'text',
                'column' => 'profile-main',
            ],
            [
                'name'   => 'Short biography',
                'id'     => 'expert_bio',
                'type'   => 'textarea',
                'column' => 'profile-main',
            ],
            [
                'name'   => 'Email',
                'id'     => 'expert_email',
                'type'   => 'email',
                'column' => 'profile-side',
            ],
            [
                'name'   => 'Status',
                'id'     => 'expert_status',
                'type'   => 'select',
                'options' => [
                    'active'   => 'Active',
                    'archived' => 'Archived',
                ],
                'column' => 'profile-side',
            ],
        ],
    ];

    return $meta_boxes;
}

In this example, it is important not to confuse the two parameters: columns at the meta box level defines the available areas, while column on a field tells it which area it belongs to. If a field references a key that does not exist, the layout will not behave as expected.

When to add a custom class

A custom CSS class is not always necessary. Add one when you need to gently separate an important column, add internal spacing, or visually highlight warning-related fields. Do not use CSS to fix bad grid logic. If a field feels cramped, increase its width first, and only then think about styling.

If you do need a small, safe style tweak, apply it to the class you explicitly defined in the advanced syntax. The code below shows the basic idea: highlight the side column that holds workflow statuses in the admin area. It is best to place a snippet like this in a child theme or a code snippets plugin, not in WordPress core files or in the extension itself.

add_action( 'admin_head', function () {
    echo '<style>
        .rwmb-profile-side {
            background: #f6f7f7;
            border-left: 3px solid #2271b1;
            padding: 12px;
        }
    </style>';
} );

The check is simple: open the editing screen, make sure the style is applied only to the intended column, save a test entry, and refresh the page. If the admin layout feels cramped or the highlight gets in the way, remove the snippet and go back to the standard grid.

Configuring it through MB Builder without unnecessary code

If the project uses MB Builder, setup becomes more accessible for anyone who does not want to edit PHP arrays by hand. The official field creation tutorial shows that the Columns setting appears in the field interface and that each row is divided into 12 parts. This is a good path for a small team where field structure is not edited only by a developer.

Step-by-step in the interface

1. Open Meta Box - Custom Fields and select the required field group.
2. Click the field you want to place in a column and find the Columns width setting.
3. For three equal fields, assign 4 to each one. For two equal fields, assign 6. For a full row, use 12.
4. Save the group through Save Changes.
5. Open an entry where this group appears and check the real editing form.

Do not rely only on the preview inside the builder. The actual editing screen may look different because of the WordPress sidebar, window width, other meta boxes, tabs, groups, and user permissions. That is why the final check should always happen in the place where editors actually enter data.

How to choose the best settings for a typical site

On the first pass, do not try to build the perfect grid. Start with the most obvious rows: three contact fields at 4, two related fields at 6, and long fields at 12. Then ask an editor to fill in one test entry and note where they had to stop, scroll, or search for a related field.

If the form becomes more compact but data-entry mistakes increase, the grid is too dense. The best Meta Box Columns setup is not the shortest form, but the one where related fields are visible together and do not compete for attention.

Working with groups, tabs, and nested structures

In real projects, fields rarely exist in isolation. Meta Box also includes MB Group for nested and repeatable groups, MB Tabs for tabs, conditional logic, and other extensions. Meta Box Columns can be part of that setup, but it needs to be applied at the right level.

The official MB Group documentation shows that group fields can be repeatable, collapsible, and nested. That is powerful, but the deeper the structure becomes, the greater the risk of turning the interface into something heavy for editors to use. Columns help only when they make the group easier to scan, not when they add another layer of complexity.

Groups: where to apply width

If you have a "Contacts" group with email, phone, and website fields, you can assign widths to the subfields so they sit on a single row inside the group. At the same time, the group itself can still take the full width of the form. This works well because the editor first sees a meaningful container, and inside it a compact row.

A Meta Box support thread about the 12-column grid shows a typical question: a user expected it to be enough to assign a width of 4 to subfields, but still got a vertical layout. In the reply, the developer confirms the 12-column logic and recommends checking for conflicts with other plugins if the expected row does not appear. This is a good example of why troubleshooting should start with the smallest possible set of active extensions.

Tabs: when to combine them with MB Tabs

The official product page explicitly suggests MB Tabs as a way to improve form UI. In practice, that means tabs divide a large form into meaningful sections, while columns inside each tab organize the short fields within that section. This works well for complex profiles that include blocks such as "Main," "Contacts," "SEO," and "Additional Settings."

Do not do the opposite by trying to replace tabs with an overly dense grid. If a group has 30 fields, it is usually better to split them into tabs and then use columns inside those tabs for the short values.

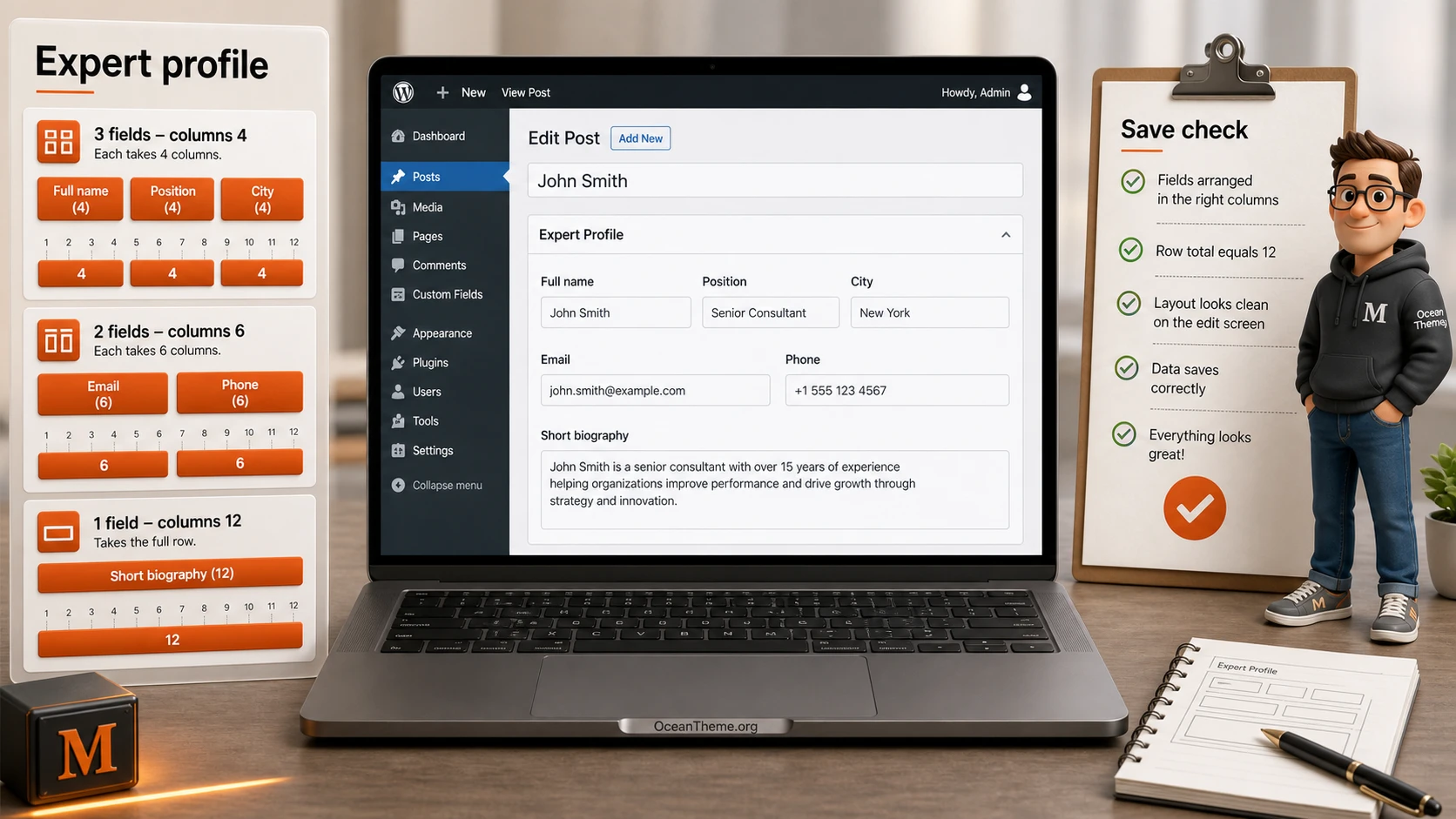

Practical example: an expert profile with a compact form

Imagine a clinic, agency, or education site with a custom post type called "Experts." The editor needs to quickly fill in the name, title, contact details, city, publication status, and a short biography. Without columns, the form stretches out, and short fields start to feel like a long questionnaire.

Goal

Create a form where the editor sees the main contact details near the top of the screen, does not have to scroll for every short value, and does not confuse internal statuses with the public-facing expert description.

Preparation

You need active installations of Meta Box and Meta Box Columns. If the fields are created through MB Builder, create the field group for the "Experts" post type in advance. If the fields are registered in code, work in a dedicated project plugin or child theme. Do not edit the files of the extension itself.

Setup steps

1. Create or open the field group for the expert profile.
2. Place the Full name, Position, and City fields on one row with a value of 4 for each.
3. Set Email and Phone to 6 each so they split the second row in half.
4. Leave Short biography at 12 because the editor needs room for text.
5. If there is a Status field, place it next to a short internal note using a 4 + 8 pattern, or leave it on its own if status is critical.
6. Save the group and open a test expert profile.

Verifying the result

Fill out a test profile using values with realistic length. Do not test only with short words like "test." Enter a long job title, a normal email address, a phone number, a city, and a biography. After saving, refresh the page and make sure the values stayed in place, the labels were not cut off, and the fields did not become too narrow.

One nuance: if the editor works on a small laptop, an overly aggressive grid can make the form worse. Test not only on a wide developer monitor, but also on the kind of everyday screen where content is actually edited.

How to check whether the form became easier to use, not just shorter

After setup, it is easy to fool yourself: the page is shorter, so everything must be better. In practice, compactness is only one criterion. You also need to check input speed, error rate, logical grouping, and readability across different screen widths.

Editor usability check

Ask the person who will actually use the form to create one new entry and edit one existing one. Watch not for whether they like the design, but for concrete actions: where they search for a field, where they backtrack, where they confuse similar values, and where they are unsure whether a field belongs to the public-facing site or to internal operational data.

A good result looks like this:

• The editor can see related fields without scrolling.
• Long fields are not squeezed and remain comfortable to read.
• Labels and helper text do not break the grid.
• After saving, values return to the same fields.
• The form remains clear when tabs, groups, and conditional logic are enabled.

Technical verification

The developer should also check the browser console for errors, PHP logs during save operations, and possible conflicts with admin-side caching if the site uses optimization plugins. In most cases, the issue is not the grid itself, but a combination of older code, overridden admin styles, third-party extensions, and field structures that have become too complex.

If the form is used for fields that are later displayed on the site, check the front-end page separately. Meta Box Columns does not change the output template, but an error in field registration or a changed id can affect which values the theme receives.

Limitations that are better to know in advance

Meta Box Columns has a narrow, clear role, so it should not be expected to provide features that belong to neighboring extensions. It does not create custom post types, it does not design fields from scratch, it does not control conditional display, it does not expose values to the REST API, and it does not render data on the front end. All of those tasks belong to other parts of Meta Box or to project-specific code.

The plugin also should not be used as a substitute for sound information architecture. If you have too many fields in one group, the real issue may not be the lack of columns, but the fact that the form should be split into tabs, groups, or separate field groups based on editing scenarios.

Nested fields and admin columns

There is a separate nuance involving subfields inside groups. In a support discussion about the 12-column grid, a Meta Box developer noted that if you need a field to appear in admin columns, it is better to keep it as a top-level field rather than a group subfield. This matters for projects where editors need not only cleaner forms, but also a quick overview of data in the post list.

The practical takeaway is this: if a value needs to appear in the entries table, be sortable, searchable, or usable in integrations, design the data structure first and only then arrange the fields into columns. Visual compactness should not interfere with future data workflows.

Performance and security

The admin-side grid itself is usually not the main source of load. But complex field groups, repeatable groups, heavy queries, and large numbers of media fields can slow down the editing screen. If the form is already slow, columns may make it look more compact, but they will not remove the actual cause of the delay.

From a security standpoint, follow normal WordPress practices: keep the base Meta Box plugin and its extensions updated, do not edit plugin files, review user permissions, do not paste random code snippets from unverified sources, and test changes on a site copy.

Why the columns are not working and how to diagnose the problem

Most issues with Meta Box Columns are not caused by installation itself, but by expectations: the field is configured at the wrong level, the width total was not thought through, the group is nested more deeply than it seems, or a third-party plugin is changing admin styles. Below is a practical troubleshooting flow worth going through before contacting support.

The fields are still stacking vertically

Symptom: you assigned column values, but on the editing screen the fields still appear one below another.

Possible causes: the parameter was assigned to the wrong field, the group was not saved, the field sits inside a structure where the setting was not applied to subfields, or admin styles are being overridden by another plugin.

What to check

• Make sure each field in the row has a value that adds up to a clear grid.
• Save the field group and refresh the entry screen, not just the builder preview.
• If the fields are inside a group, check the widths on the subfields themselves, not only on the parent container.
• On a staging copy, temporarily disable third-party plugins that alter the admin interface.

How to fix it: start with a simple 4 + 4 + 4 layout on three text fields with no groups or tabs. If that works, move the setup into the real structure step by step. If even the simple version does not work, verify that both the extension and the base Meta Box plugin are active.

The field became too narrow

Symptom: the label no longer fits well, form controls look cramped, and the editor is uncomfortable entering data.

Possible causes: the field needs more space, the chosen width works only for very short text, or the editor’s screen is narrower than the developer’s test monitor.

What to check: fill the field with realistic values, test the form on a regular laptop, and see whether helper text, validation messages, or long dropdown options are getting in the way.

How to fix it: increase the width to 6, 8, or 12. Do not try to fix a cramped field with CSS alone. If the field is conceptually long, it should be wide.

Nested fields are not behaving the way you expected

Symptom: inside MB Group, some fields line up while others stay vertical, or repeatable groups look inconsistent.

Possible causes: the width was set on the parent field instead of the subfields, the group is repeatable and contains different field types, or the structure is simply too dense for a nested form.

How to fix it: first configure one simple non-repeatable group, then enable repeatability and deeper nesting. For repeatable groups, a more spacious layout is usually better because the editor sees several instances of the same block in a row.

The data is saved, but does not appear on the site

Symptom: the admin form looks correct, values are saved, but the public page is missing some of the data.

Possible causes: the field id was changed, the theme template expects the old key, the value is now nested inside a group and must be retrieved differently, or the issue belongs to data output rather than columns at all.

What to check: compare the field id in registration and in the output template, inspect the data through rwmb_meta() or your current output method, roll back the latest structural changes, and repeat the test.

When to roll back: if changing the grid also changed field identifiers, storage order, or nesting level, it is better to restore the working structure and plan the migration again from scratch. Columns should never become the reason the form loses its connection to the template.

Practical ways to use it without overloading the form

Meta Box Columns may look like a small extension, but its value becomes very clear on projects where WordPress is used more like an application CMS. Below are a few scenarios where the grid helps not only save space, but also reduce editorial mistakes.

Object catalog

For real estate, cars, equipment, or job listings, it is useful to place short numeric parameters into one or two rows. For example, price, area, room count, and status can sit together, while the description, gallery, and map remain separate. The editor can review the numeric block faster and jump around the form less.

Employee or expert directory

Contact fields, job title, city, and internal status fit naturally into a grid. Biography and photo are usually better left wide because they require visual review and often contain more data.

Content block settings

If you are building a block or section through Meta Box, short settings such as color, background variant, card count, and button toggle can be placed side by side. At the same time, the content of the section itself should not be squeezed: the heading, text, and image should remain easy to read.

Internal editorial statuses

The grid is also useful for operational fields that are not shown to site visitors: priority, owner, reviewed, revision date, data source. Keeping them together helps the editor see the full state of the item at a glance.

When Meta Box Columns is the right choice

Meta Box Columns is worth using when you already have a working Meta Box structure, but the editing form has become too long, hard to scan, or slow to process visually. The best-case scenario is a form with many short, related fields that the editor needs to see together: contacts, parameters, statuses, dates, and operational values.

Do not expect the extension to handle front-end output, field migration, relationship building, or to fully replace a custom fields builder. Its strength is something else: making the admin interface clearer without changing the underlying data model. If, after configuration, the editor finds fields faster, misses fewer values, and understands the logical groups more easily, then the goal has been met.

Before rolling it out, start with a single field group, choose simple width patterns, verify saving behavior, and only then apply the approach to other forms. If the plugin fits your structure, you can download the WordPress version and test it on a site copy before using it in your live editorial workflow.
