Meta Box AIO - WordPress Plugin

A Guide to Configuring and Using Meta Box AIO in Real Projects

Meta Box AIO is not just for adding a single field to a post. It is built for full-scale data modeling in WordPress: custom post types, taxonomies, field groups, object relationships, front-end forms, output templates, and data maintenance tools. This guide focuses on the actual workflow rather than the product card: what to enable after installation, how to avoid bloating the site with unnecessary modules, how to build a real-world setup, and how to confirm that data is being saved and displayed correctly.

This article is for site owners, webmasters, and developers who already know that standard WordPress posts and pages are not enough. If you need to build a directory of specialists, an event database, a real estate portal, an author dashboard, a front-end submission form, or client-facing theme settings, Meta Box AIO can become the central tool. But its strengths only show when you use it with discipline: define the data model first, then enable the required extensions, validate everything in the admin area, and only then move on to front-end output.

Throughout the article, you will see exact interface labels such as Meta Box, Extensions, Custom Fields, Views, and Save Changes. They are intentionally left in English and marked up as code because that is how they appear in the actual product interface and documentation. All setup recommendations are phrased carefully: if a feature depends on a specific enabled extension or package version, that is stated explicitly.

What This Extension Bundle Actually Solves

Standard WordPress works well for posts, pages, categories, and basic custom fields. The problems start when a site needs to store different types of entities and present them in a usable way. An event might need a date, location, map, speakers, and registration form. A real estate listing might need a neighborhood, price, gallery, status, and agent. An author profile might need a job title, social links, avatar, post list, and a public editing form. You can hand-code all of that, but maintaining such code across client projects quickly becomes difficult.

Meta Box AIO bundles a set of extensions around the Meta Box framework to cover different parts of that problem. In one installation, you get a visual field builder, custom post types and taxonomies, post relationships, custom tables, settings pages, front-end forms, output templates through MB Views, and integrations. The important nuance is this: it is not one universal screen with a magic button. It is a set of modules that need to be enabled and connected based on the actual needs of the project.

That is why the right way to work with Meta Box AIO starts with the data model. Before you install anything, it helps to answer four questions:

• Which entities should be separate post types, and which should remain standard posts or pages.
• Which fields are needed for editors, which are only needed for output, and which must be available to users on the front end of the site.
• Whether relationships are needed between objects: event and speaker, listing and agent, product and reference entry, author and organization.
• Which data will be heavily filtered, imported, or expected to grow to large volumes.

If you skip those answers, you can create dozens of fields very quickly and still end up with a messy admin area, unclear metadata keys, and difficult front-end output. Meta Box AIO is especially strong where data structure matters more than decorative setup. For a one-page landing page with three sections, it may be excessive. For a catalog or client dashboard, it can be a very useful core system.

Who Meta Box AIO Is For, and When a Simpler Option Is Better

This package works well for developers and agencies that regularly build WordPress sites with custom entities. It helps you avoid starting every project by hand-coding register_post_type(), metaboxes, field saving logic, and output templates. At the same time, the product does not hide WordPress entirely: many settings remain close to the CMS's native logic, and developers can still rely on the API, templates, and filters.

A good use case for Meta Box AIO is a site where editors need clean, understandable forms, while the developer wants full control over the structure. For example, a content manager fills in fields like "Date," "Location," "Speaker," "Price," and "Map," while the developer decides in advance where those values appear and how they are rendered. In that case, the product becomes a bridge between the editorial interface and the technical architecture.

The plugin may be overkill if the site only needs a few simple fields and does not require relationships, front-end forms, custom tables, or complex templates. For a single "Subtitle" field, a lightweight snippet, theme functions, or a simpler UI plugin may be enough. Meta Box AIO also requires careful handling by the team: a poorly chosen field ID, the wrong location, or rushed metadata cleanup through the tools can cost time or data.

The short version is simple: Meta Box AIO is best viewed as a data-structure builder, not a decorative plugin. If the project needs a flexible content model, it can help you build it faster and more cleanly. If the data model barely goes beyond standard WordPress, it is usually better not to complicate the stack.

What to Check Before Installing It on a Live Site

Before installation, it is not enough to confirm that WordPress can open the Plugins page. Meta Box works with fields, post types, metadata, custom tables, and output templates, so a preparation mistake may not show up right away. You need to be especially careful on a site that already uses custom fields, custom post types, ACF, Toolset, Pods, JetEngine, custom metaboxes, or custom import logic.

Technical Compatibility and Backup

The Meta Box documentation recommends a modern PHP environment and an up-to-date WordPress version. That is not just a formality: current WordPress versions affect the block editor, media fields, REST API behavior, and output security. Before enabling Meta Box AIO, check the PHP version on the host, core updates, and whether you have a staging copy of the site. If the project is commercial, repeat the setup on a copy first, where breaking the template will not have real consequences.

Safe practice: before using tools that delete data or rename meta keys, create a database backup. Meta Box AIO's data maintenance tools directly involve irreversible operations, so a staging copy is not a luxury here. It is standard working practice.

Conflicts With Existing Field Systems

If the site already uses ACF, Pods, Toolset, or custom metaboxes, do not migrate everything in one pass. Start by building a table: field key, where the value is stored, what renders it, and whether a template or page builder depends on it. Then enable Meta Box AIO for a new section or a single field group. That approach makes it much easier to see whether the new tool duplicates old keys or breaks existing output.

Pay special attention to field names. In WordPress, metadata is often used in queries, templates, and integrations. If a field name is too generic, such as price or status, it may collide with another plugin. A project-specific prefix is safer and clearer: event_price, listing_status, speaker_role. MB Builder includes an ID prefix setting for field groups, and it is worth deciding on that before content editors begin entering data.

User Roles and Editorial Overload

Meta Box AIO can add a lot of new admin menu items: fields, post types, taxonomies, relationships, forms, templates, and tools. Not every editor needs access to all of them. During preparation, decide who will manage the data structure and who will only fill in entries. If the site administrator should not see the Meta Box AIO extensions screen, the documentation describes the mb_aio_show_settings filter, which developers can use to hide that page.

Installation and Initial Validation Without Unnecessary Modules

The overall installation flow looks like any other WordPress plugin: upload the ZIP through Plugins -> Add New Plugin -> Upload Plugin, install it, and activate it. But Meta Box AIO differs in an important way after activation: it includes many extensions, so the next step is to open Meta Box -> Extensions, where you turn the required modules on and off.

The first pass should be minimal. For a basic project with a new post type and custom fields, it is usually enough to enable the modules for custom post types, MB Builder, and any extensions needed for locations or output. If you activate front-end forms, custom tables, relationships, templates, user profiles, and integrations all at once, the admin area becomes noisy and troubleshooting becomes harder.

Initial Validation Workflow

1. Activate Meta Box AIO and confirm that the Meta Box section appears in the admin menu.
2. Open Meta Box -> Extensions and enable only the extensions required for the first use case.
3. Save the settings with Save Changes and refresh the admin page.
4. Check whether the expected submenu items appear, such as Post Types, Custom Fields, Views, or Tools.
5. Create a test field group or a test post type without touching live content.

If a menu item does not appear after saving, first verify that the required extension is enabled, then clear any admin-side cache if present, and make sure the current user has enough permissions. If a separate plugin version of the same extension is installed, the Meta Box AIO documentation notes that the standalone extension takes priority over the version bundled inside AIO. That is expected behavior, but it can be confusing if you are comparing version numbers or module behavior.

Which Extensions to Enable First

There is no single set of "best settings" for Meta Box AIO across all sites. But there is a practical starting minimum. For a catalog or structured content database, you will usually want MB Custom Post Types, MB Builder, and sometimes MB Relationships and MB Views. For a front-end submission workflow, you need MB Frontend Submission. For storing large field sets, you may need MB Custom Table. For theme or client settings screens, use MB Settings Page.

The core rule: enable a module only when you can explain which section, screen, or user workflow it supports. If the answer is "we might need it later," leave it off until there is a real use case.

Detailed Setup After Installation

After installation, the work breaks down into several layers. First, you choose the active extensions. Then you create the content structure: post types, taxonomies, and fields. After that, you configure where those fields appear, how they are saved, and how they are rendered on the site. Finally, you validate permissions, performance, and rollback options for anything risky.

Extensions Page: Keep Only What You Need Enabled

On the Meta Box -> Extensions page, Meta Box AIO shows the available modules as a checklist. This is the administrative center of the package. You can enable the visual builder, relationships, settings pages, front-end forms, migration tools, integrations, and other extensions here. After changing the list, click Save Changes.

If you maintain client sites, it is worth keeping a short decision log: which extension is enabled, what part of the site it supports, and who owns it. That kind of note helps months later when someone needs to remember why MB Include Exclude or MB Show Hide was turned on. Without that record, teams often become afraid to disable anything because no one knows where it is used.

Field Builder: General, Appearance, Validation, and Advanced

In MB Builder, fields are organized into groups. The documentation shows that the interface includes field creation, structure, and settings. When you select a specific field, its options are divided into logical sections: general settings, appearance, conditional logic, validation, and advanced parameters. For most sites, the first pass only needs a clear label, an ID, a field type, the group location, and basic validation.

Do not rush into using Advanced without a reason. It includes useful options such as custom CSS classes, HTML before and after the field, value-saving behavior, extra attributes, and custom settings. But every extra parameter makes the structure harder for the next developer to understand. If you only need to change the field label or add a helper note, use the standard settings and tooltips instead of code.

ID Prefix and Readable Keys

Field keys should survive a theme change, an import, and future template work. A good ID explains where the field is used: event_date, event_location, speaker_company. A weak ID like field_1 or text creates problems when you render data through MB Views, the API, or a theme template. If a group belongs to one section, use a shared prefix. That is especially helpful when the site has multiple metadata sources.

Locations and Display Conditions

In the group settings, specify where the fields should appear: posts, terms, users, comments, blocks, or settings pages. If a location requires a separate extension, enable it first. For example, term fields require the relevant module, and additional display rules may depend on MB Include Exclude or MB Show Hide. After saving, open the exact screen where the group is supposed to appear and verify not only that the fields exist, but also that they are in the expected order.

Rendering Data: MB Views, Theme Code, or a Page Builder

Creating a field is only half the job. Users only see the result after the value is rendered on the front end. Meta Box offers several ways to do that. Developers can use theme functions and templates. Users who want less code can use MB Views: create a template, insert fields through the Insert Field panel, choose output parameters, and define placement rules.

For a typical site, it helps to split responsibilities. Meta Box AIO stores the structure and data, MB Views renders individual blocks, and the theme handles the overall layout and styling. If the site already runs on Elementor, Bricks, Beaver Builder, Divi, or another builder, check the integration documentation and avoid rendering the same field both in the theme and in a View. Two output paths for one field often lead to duplicate content or style conflicts.

How to Roll Back a Questionable Setting

Rollback should be planned in advance. For extensions, disable the module on the Extensions page and verify that only the related functionality disappears. For a field, temporarily remove it from its location or hide the group without deleting the data. For a View, remove the placement rule or switch the template back to draft. For tools under Tools, rollback is usually impossible without a backup, which is why they should never be used on a live database without prior validation.

Validation after configuration: create one test entry, fill in all new fields, save it, refresh the screen, open the public page, and confirm that the data not only renders correctly, but also persists after another edit.

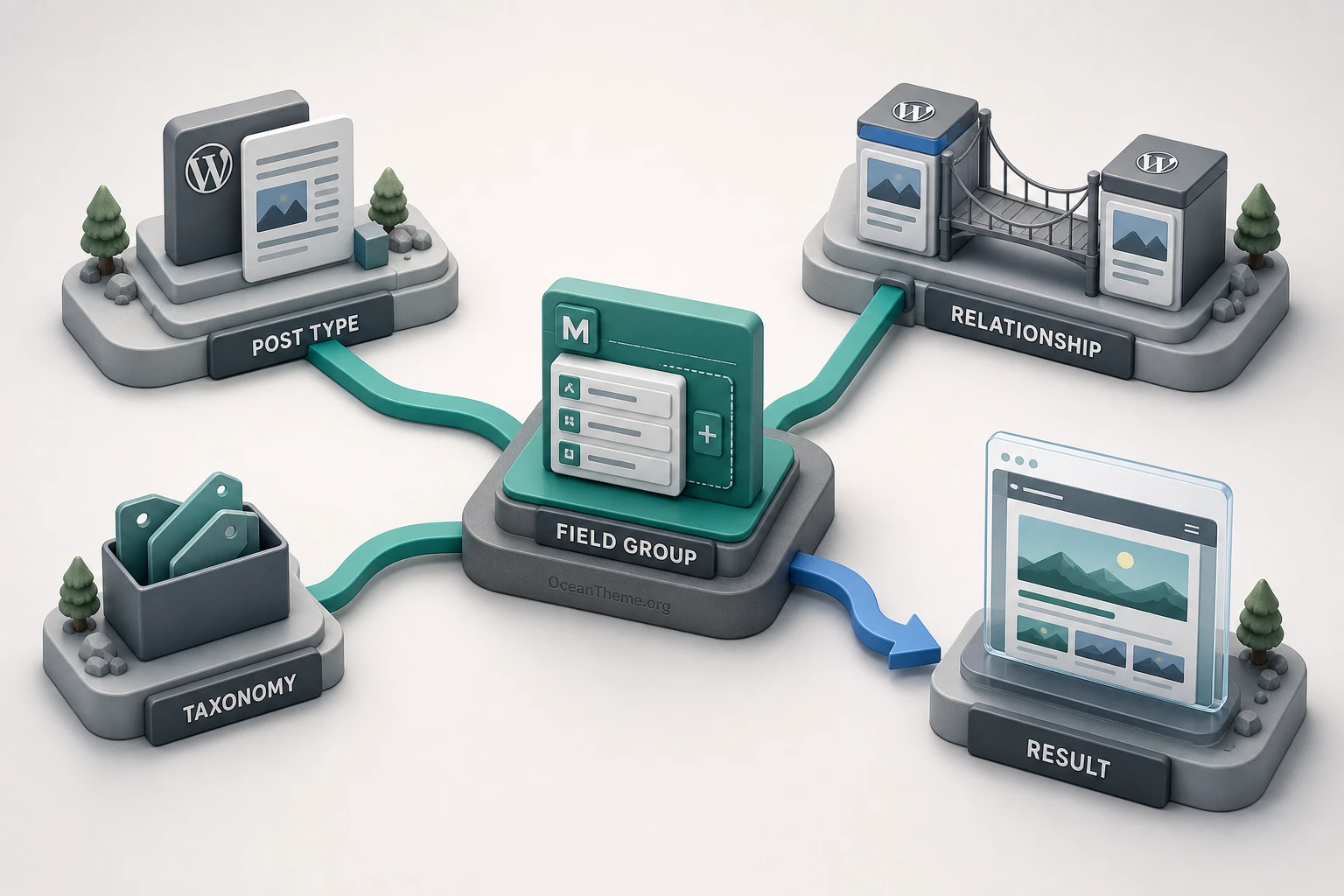

Data Modeling: Post Types, Fields, and Relationships Without Chaos

Meta Box AIO is at its best when you use WordPress as an application-style CMS. But that is also where most errors begin. Users create a new post type, add fields, then add relationships, then try to render everything in a template and lose track of where the problem really is. To avoid that, move from entities to interface, not the other way around.

Post Type or Regular Post

A custom post type makes sense when an object has its own structure, list screen, archive, template, or logic. "Events," "Speakers," "Testimonials," "Listings," and "Case Studies" are all good candidates. But if you are only dealing with a few pages that happen to have a different layout, a new post type may be unnecessary. The Meta Box documentation explains that custom post types are meant for sections that differ from regular posts and pages in appearance or in their set of characteristics.

Taxonomy or Select Field

A taxonomy is appropriate when the value needs to support grouping, filtering, archives, or a reusable editorial vocabulary. Examples include genre, neighborhood, property type, or event format. A select field is better for a local status or parameter that does not need to exist as a separate archive page. Problems arise when everything becomes a field: later you cannot build proper archives or filters. The opposite mistake is using a taxonomy for a one-off technical parameter.

Relationships Between Objects

MB Relationships lets you connect posts, terms, and users. The documentation describes one-to-many and many-to-many relationships, as well as reverse retrieval of related objects. This is useful for an events site where one event is connected to several speakers, and each speaker needs a page showing related events. It is worth deciding in advance which side of the relationship will be edited more often and where it will be more convenient for the editor to choose related items.

It is usually a mistake to replace a real relationship with a plain text field containing a name. A text field is quick to create, but it does not provide reliable navigation, filtering, or validation that the target object exists. If the relationship matters to the structure of the site, use the relationships module or object selection fields. If it is only decorative labeling, plain text may be enough.

Groups and Repeatable Blocks

MB Group and cloneable fields help store repeatable sets such as day-by-day schedules, link lists, captioned galleries, or project phases. Do not create separate fields like step_1, step_2, and step_3 when the number of items can change. A repeatable group reflects the real structure much better. But it has a cost: output and validation become more complex, especially when the group contains images, maps, or nested fields. For simple fixed data, separate fields are often easier to manage.

Displaying Fields on the Site Through Views, a Theme Template, or a Block

Once the fields are filled in, the main practical question becomes how to show the data to visitors. Meta Box AIO does not have to change the front end automatically. The data is stored, but the visible result depends on how it is rendered. This is one of the most common reasons behind complaints like "the fields exist in the admin area, but nothing shows on the site." In reality, that is normal architecture: storage and presentation are separate layers.

When MB Views Makes Sense

MB Views works well when you need to render fields without editing theme files. You create a View in the interface, which includes editors for the template, CSS, and JavaScript, and you insert fields through the Insert Field panel. The documentation notes that elements are grouped into tabs such as Post, Site, User, and Query. For a single post-type page, this is a convenient way to quickly build an event card, profile block, or listing layout.

The main thing to validate in a View is the placement rule. If the template exists but does not appear, check the View type, location, post type, and main query. Fields from the Post tab work within the context of the main query, so they may behave differently on an archive or taxonomy page than on a single entry. If you are unsure, start by rendering one simple field, then add groups, loops, and conditional blocks.

When a Theme Template Is the Better Choice

If the project is maintained by a developer and the output is tightly tied to the theme design, using Meta Box functions in the template may be more reliable. That gives you tighter control over markup, caching, conditions, structured data, and styling. This path is especially useful for high-traffic catalogs where queries must be carefully optimized and editors should not be able to accidentally alter a critical template.

The downside is obvious: editors without code access will not be able to change field placement on their own. That is why client sites often use a mixed approach: the developer handles the core cards and archives, while smaller descriptive blocks or settings are rendered through MB Views or a page builder.

Validating the Front End

Check the output in multiple states. One record with every field filled in only shows the ideal scenario. Create a second record with optional fields left empty, a third with long text, and a fourth with a repeatable group. That will reveal whether the layout breaks, whether empty labels appear, or whether a raw technical key shows up instead of a human-friendly value.

If a field contains a date, map, image, or related post, check not just the appearance but also the format. The date should be easy to understand, the image should have the correct size, the map should not hurt page speed, and the relationship should point to a real entry. Output is only finished after edge cases are validated, not after the first successful save.

Front-End Forms and User Input

MB Frontend Submission opens up a workflow where data is entered by users on the site rather than by an administrator. That can include event registrations, listing submissions, guest posts, profile editing, or content sent for moderation. The documentation describes both an editor block and the [mb_frontend_form] shortcode, along with parameters such as post_fields, post_type, post_status, ajax, and object_type.

A public form cannot be treated as casually as an internal metabox. Once you open a field set to site visitors, you have to think about security, moderation, spam, permissions, and UX. If the form creates posts, choose a safe status such as draft or pending review when content should not be published immediately. If the form edits an existing object, verify who is allowed to modify that specific object.

Minimum Safe Workflow

1. Create a separate field group specifically for the public form. Do not overload it with internal service fields.
2. Choose which post fields the user actually needs: title, content, excerpt, thumbnail, or only custom fields.
3. Define the status of created posts and verify that user-submitted content is not being published without moderation.
4. Add the form to a test page using a block or shortcode.
5. Submit a test entry as a regular user, not as an administrator.
6. Check the saved fields, the post-submission message, and confirm that no unnecessary fields appear on the public page.

If ajax is enabled, also validate the success message and the behavior when a required field is missing. In some cases, the theme or a script optimization plugin can interfere with form processing. If that happens, temporarily disable minification and script bundling on the test page, then submit the form again.

When a Public Form Is Not Enough

If the form handles payments, highly sensitive personal data, or critical account actions, Meta Box alone is not enough. You also need a data retention policy, spam protection, notification logic, permission controls, and sometimes a dedicated specialized plugin. Meta Box AIO gives you the form and data storage, but it does not replace a full security layer for a business process.

Custom Table and Data Maintenance Tools

Not every site needs custom tables. By default, WordPress stores custom fields in its standard metadata tables, and for many projects that is perfectly fine. MB Custom Table becomes interesting when the data volume is large, fields are imported frequently, you want to reduce the number of rows in meta tables, or it is more practical to store a field set in one row of a separate table.

When to Enable Custom Table

The documentation explains that with Custom Table enabled, field values can be stored in a separate table: one object per row, separate fields in separate columns. In MB Builder, you can enable a custom table in the group settings, define the table name, decide how to handle the prefix, and choose automatic table creation. When the table is auto-created, the columns usually get compatible data types, which is convenient for getting started, though not always ideal for more advanced analytics.

Enable this mode only for groups where there is a clear reason. A large property catalog with dozens of fields and regular imports is one example. Three fields in a News section are almost certainly not worth the added complexity. If you are not comfortable with MySQL, start with the UI setting and a staging copy instead of trying to create the table manually in code.

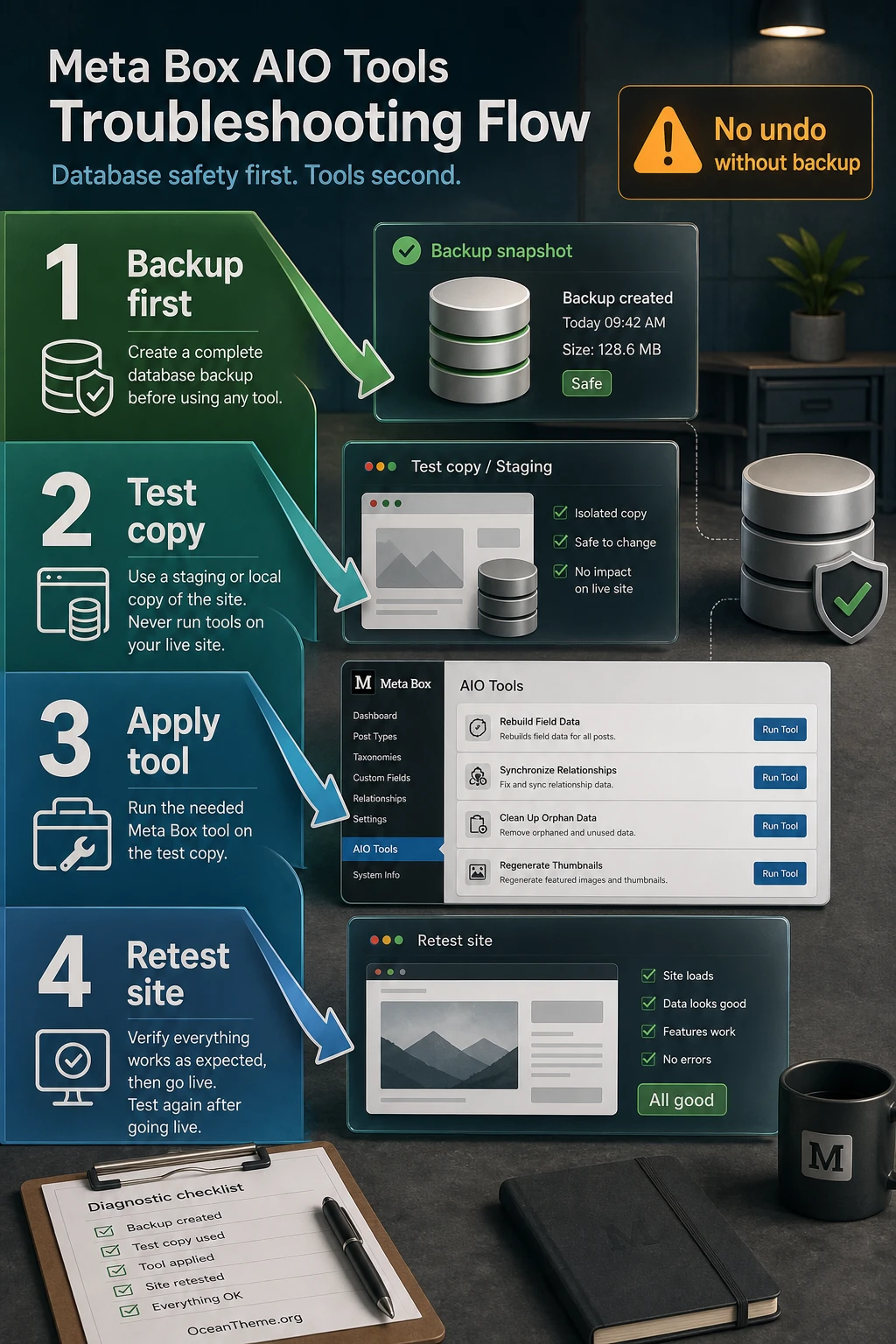

Meta Box AIO Tools: Useful, but Handle With Care

Under Meta Box -> Tools, you get data maintenance tools such as deleting orphan fields, deleting specific custom fields by key, renaming a field key, and changing a post type. These tools are useful after a migration, a field rename, or cleanup of an old structure. But they operate on data, not presentation, so a mistake can be irreversible without a backup.

Before using any tool, make a list of the affected keys. If you are renaming a field key, check where it is used: a View, a theme template, a builder integration, an import, an export, or the API. After making the change, open not only the admin area but also the public page where the field is rendered. If you are deleting orphan fields, verify first that they are not actually tied to a temporarily disabled post type or to an older migration.

Practical rule of thumb: treat Meta Box AIO tools as database maintenance operations. Run them only after a backup and a test, not as a casual "clean up the site" button.

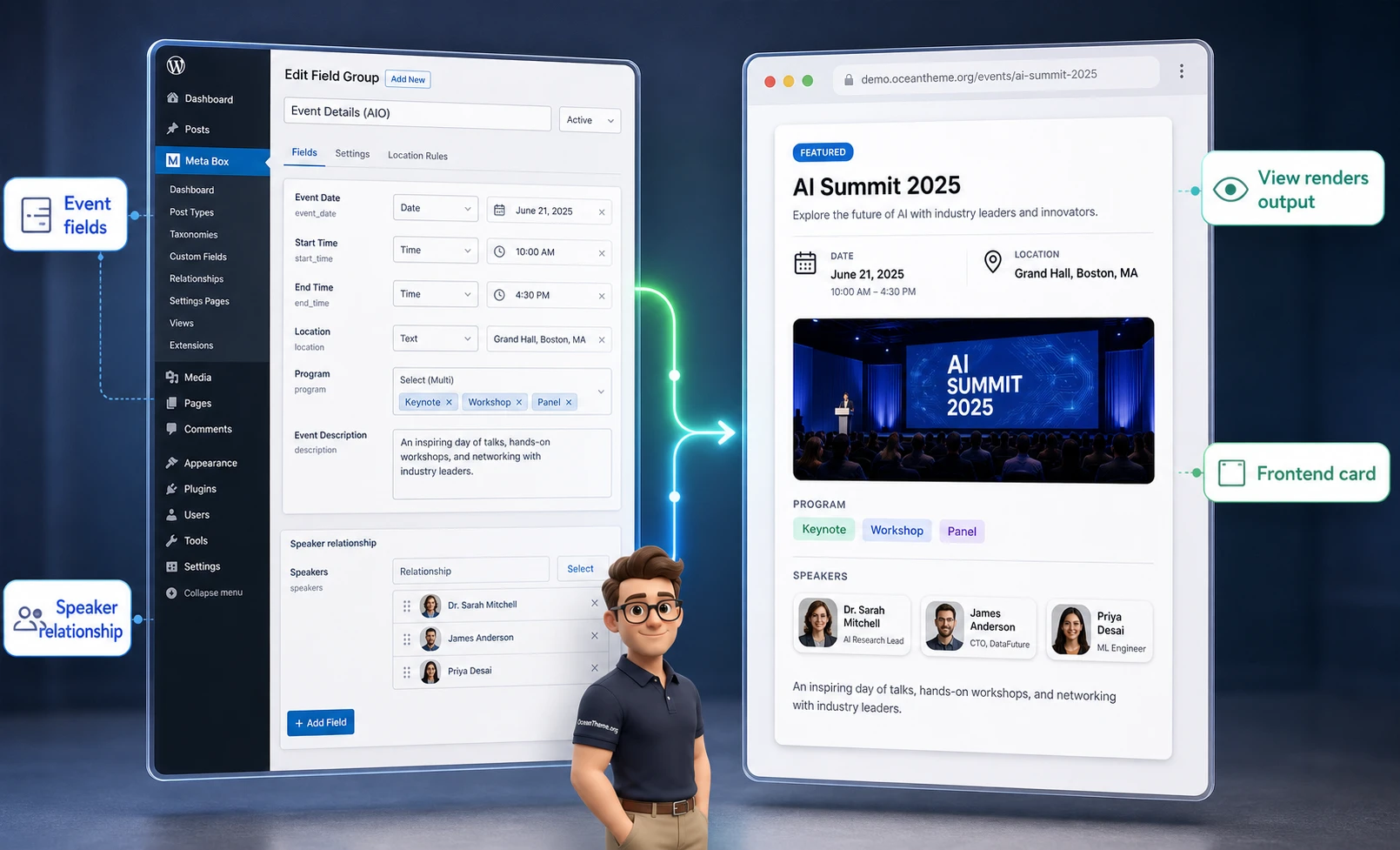

Practical Example: An Event Directory With Fields, Relationships, and Output

Let us walk through a real scenario that shows how to use Meta Box AIO without relying on abstract examples. You need to build an "Events" section where every event has a date, location, map, speaker list, short program, and a public-facing detail block on the site. Editors should fill in the fields in the admin area, while visitors should see a clean details block below the main description.

Goal and Preparation

The goal is to create a separate event post type, a field group for event details, a relationship to speakers, and a View for output. Before you begin, enable MB Custom Post Types, MB Builder, MB Relationships, and MB Views. If speakers will be users, make sure the selected relationship setup supports users. If speakers will be separate posts, create a speaker post type.

Configuration Steps

1. Open Meta Box -> Post Types and create the post type for events. Use readable labels, a clean slug, and support for the necessary editor elements.
2. Create the post type for speakers, or prepare users if speakers will be represented by site accounts.
3. Go to Meta Box -> Custom Fields and create a group called "Event Details."
4. Add the fields event_date, event_location, event_map, and event_program. Use the appropriate field type for the date, and a textarea or repeatable group for the program if it may contain multiple stages.
5. In the group settings, assign the location to the event post type. Save the changes and create a test event.
6. Under Meta Box -> Relationships, create the relationship between events and speakers. Check which side is more convenient for editors to manage.
7. Create a View for the single event page. Through Insert Field, add the date, location, map, and program, then set the placement rule to display it below the post content.

Validating the Result

Create two test events: one with all fields filled in, and another without a map or with an empty program. Open the public pages and confirm that no empty labels are rendered. Then open the speaker page or the related items list if the relationship should work in both directions. If the View does not appear, check the location, post type, and main query. If the data does not save, check the field IDs, required settings, validation, and whether there is a conflict with a custom table.

The important detail in this example is that it combines several modules. You need to trace errors through the full chain: the post type exists, the field group is visible, values are saved, the relationship can be selected, the View is assigned, and the public page shows the result. That workflow is much faster than changing every setting at random.

Safe Improvements for Developers and Agencies

Meta Box AIO is not limited to visual configuration. The documentation describes filters for controlling the AIO interface, APIs for custom tables, and many extension points from the core Meta Box framework. But a product guide should not invent complex hooks that the reader does not need. It is more useful to show two safe techniques based on officially documented filters that do not require editing the plugin core.

Hide the Extensions Page From Regular Project Admins

If the site will be handed off to a client, accidental extension changes can disrupt the data model. The Meta Box AIO documentation describes the mb_aio_show_settings filter, which controls whether the settings page is visible. It is best to add the code through a child theme or a trusted snippets manager. Do not edit the plugin files directly.

add_filter( 'mb_aio_show_settings', function () {
    return current_user_can( 'manage_options' ) && defined( 'WP_DEBUG' ) && WP_DEBUG;
} );

This example shows the extensions page only to administrators in an environment where WP_DEBUG is enabled. On a live site, you can adapt the logic to a role or environment constant. After adding the code, sign out of the admin area and test access with a standard client admin account. To roll it back, disable the snippet or remove the filter from the child theme.

Lock the Active Module Set in Code

For agency projects, it is sometimes important that the extension set does not depend on an accidental checkbox. The documentation describes the mb_aio_extensions filter, which receives the list of enabled extensions and returns a modified list. Use it carefully: if you return only one slug, the filter logic will disable the rest of the extensions.

add_filter( 'mb_aio_extensions', function ( $extensions ) {
    $required = array(
        'meta-box-builder',
    );

    return array_values( array_unique( array_merge( $extensions, $required ) ) );
} );

This version does not remove existing enabled modules. It simply adds a required one. Before using it on a live site, verify the exact extension slugs against the documentation and your staging environment. If the change creates a conflict, disable the snippet and return to managing extensions through Meta Box -> Extensions.

Do not use snippets to bypass licensing, purchasing, activation, or update restrictions. In this guide, code is used only to manage the interface and improve configuration stability for an already installed product.

Limitations, Performance, and SEO Considerations

Meta Box AIO does not automatically make a site fast or slow. Performance depends on which fields exist, how they are stored, how they are rendered, and what queries the template runs. If a page shows ten simple text fields, the load is usually light. If the page builds complex relationships, maps, galleries, repeatable groups, and several extra queries, the output needs optimization.

For SEO, the plugin itself is not the key factor - structure quality is. Custom post types should have clear archives, URLs, titles, descriptions, and internal links. Fields should be rendered in HTML so that search engines can see useful content rather than only hidden metadata. Meta Box integrations with SEO plugins can help pass data through, but they do not replace real editorial work on the content.

Cache and Dynamic Data

If the site uses page caching, a changed field value may not appear on the front end immediately. That is not necessarily a Meta Box issue. Clear the page cache, builder cache, object cache, and CDN if they are in use. For pages with public forms, do not cache personalized messages or submission results without careful validation.

REST API and Integrations

Meta Box includes a REST API extension and integrations with builders and SEO plugins. Use them when the data genuinely needs to be available to external layers. Do not expose all metadata in the API "just in case." For restricted fields, internal statuses, and user data, keep access minimal and verify what values actually end up in the response.

Output Security

If a field is filled in by an editor with full permissions, that is one risk profile. If the data comes through a public form, it is another. Validate the field type, rules, required settings, allowed values, and output escaping. Do not render user-provided HTML without control. If you use MB Views, keep the templates simple and readable, and move complex logic into code where it is easier to test.

When Meta Box AIO Is the Right Choice

Meta Box AIO is a strong choice when your WordPress site needs to behave like an application-style CMS: storing different object types, giving editors clear forms, connecting entities, rendering data in templates, and supporting future growth. Its main strength is modularity. You can start with a post type and one field group, then add relationships, Views, front-end forms, or custom tables when there is a real need for them.

Before implementation, do not chase the biggest possible extension list. Build the data model, validate the environment, make a backup, enable the minimum module set, create a test entry, and walk through the full chain from data entry to public output. If that chain works, you can expand the project. If even the first step leaves you unsure where the data will be used, go back to planning instead of checking more boxes.

Once you are ready to repeat the setup on a staging copy and validate it against a real use case, you can download the ZIP archive and move into a careful implementation. Start with one task, keep track of the enabled modules, and validate the public result after every change. That is how this extension bundle becomes a working tool instead of a source of chaos in the admin area.
