How to Create and Configure Charts in GreenShift Chart

GreenShift Chart is useful not when you simply want to add a colorful graph to a page, but when readers need to understand what the numbers mean at a glance. This guide walks through the path from a source table to a polished interactive chart on a WordPress site: how to prepare data, choose the right presentation format, add a block in the editor, check labels and responsive behavior, and, when needed, connect a CSV file, Google Sheets, or a dynamic field. We will also cover situations where a chart looks convincing but leads readers to the wrong conclusion, and how to catch those issues before publishing.

The plugin works within the GreenShift block ecosystem and relies on ApexCharts capabilities. It is important to understand this upfront: this is not a standalone analytics dashboard or a universal spreadsheet for processing large datasets. GreenShift Chart is primarily designed for publishing data in site content, where a visualization is part of an article, landing page, report, catalog, or post layout. In the editor, you can start with a preset, then adjust data through fields or the underlying JSON configuration, and connect a chart to dynamic values when metrics need to change.

This guide does not cover purchasing, activation, or bypassing restrictions. It assumes the required add-on is already available in your installation. Instead, it focuses on practical work: how to avoid mixing up series and categories, why pie charts use a different data format, how to update an external CSV safely, what to do about caching, and how to check the chart on a narrow screen. This approach is especially valuable for editors who need a chart to support the article rather than become another source of risk on the page.

When a Chart Becomes Evidence Instead of Decoration

The strongest chart publication starts not with color selection, but with a question: what decision should the reader be able to make after viewing it? If the answer is "nothing, it will just look nicer," it is better to stop there. A good chart shortens the path from question to conclusion. For example, in a sales report, a line can reveal weekly changes; in a pricing comparison, bars can show differences between categories; in an article about spending structure, a pie or donut chart can show proportions. A chart cannot replace full analysis, but it can make a verifiable number easier to notice.

GreenShift Chart is appropriate for editorial content where data is part of the evidence. That may include seasonal demand comparisons, publishing trends, survey response shares, budget distribution, lead volume, internal research findings, or public project statistics. In all of these use cases, the author should be able to identify the source of the figures, the export date in an editorial note, and the calculation rules. The chart itself does not have to store the source, but nearby text should explain exactly what is being measured, in which units, and for what time period.

For a one-time static illustration, the block is convenient because data can be entered directly in the editor. For regularly changing metrics, it is more useful to decide in advance who owns the table, how updates are verified, and whether a delay is acceptable. The plugin supports CSV and Google Sheets imports, along with developer-documented dynamic loading. That does not mean every external file should immediately be connected to a public page. First, assess whether it contains personal data, internal columns, interim totals, or values that should only be available to employees.

Three Workflows That Should Not Be Mixed

The first workflow is a manually maintained chart in an article. It works well for a small, stable set of numbers: five reasons, four quarters, or a few answer choices. The editor enters labels and values, configures the type and labels, then checks the final output against the source table. Its advantage is predictability: article edits and chart edits happen within the same editorial task. Its drawback is that frequent updates make it easy to forget to update one of the two places where the data appears.

The second workflow is a chart based on a CSV file or shared spreadsheet. This makes sense when the source numbers are maintained separately and the site only needs to display an approved snapshot. What matters here is not a neat file URL but a format contract: the first row contains headings, the delimiter is consistent, numeric columns contain no comments or blank rows, and units are not mixed. In this arrangement, the spreadsheet owner updates the data while the editor checks that the block interpreted the structure correctly.

The third workflow uses values from WordPress data or an external source through GreenShift capabilities. It is intended for cards, catalogs, posts with meta fields, and other pages where the output depends on the current WordPress context. According to GreenShift documentation, Chart can use Dynamic Fields and API Connector, while the chart content type is available in Element Block. At this point, configuration becomes technical: you need to match the field format to the ApexCharts series format and test several real posts, not just one sample item.

Do not try to combine all three approaches in one block. For example, if some points come from a manually entered series and others come from a spreadsheet, readers will not know when the data was updated, and editors will not know where to fix an error. Choose one primary source for each chart. If you need to compare an external metric with an editorial estimate, make that distinction explicit in the legend and caption, or create two separate visualizations with different data statuses.

Who the Plugin Helps, and Who It May Create Extra Work For

The tool is a strong fit for authors, marketers, content managers, and site owners who already use the GreenShift block editor and want to publish explanatory charts without separate development. It is especially useful when a page design is assembled from blocks and the chart should inherit the overall layout: container width, spacing, accent colors, and responsive behavior. A developer can also use it as a presentation layer for data, provided the source, data schema, and ownership boundaries are defined in advance.

It is a less suitable choice when the task requires a full tabular database with bulk editing, filters across many columns, row-level permissions, complex calculations, or publication of thousands of records. In that case, the chart should usually sit on top of a specialized table or reporting system. GreenShift Chart can serve as the final presentation layer, but it does not replace data storage, cleaning, or auditing. For dense interactive tables and visitor-side editing, it is worth comparing it with solutions in the wpDataTables category.

Another borderline case is a chart as the only carrier of important information. If readers cannot learn a value without hovering, if color is the only distinction, or if the conclusion is available only from an image, some visitors will lose context. Leave a short text summary nearby, state the units clearly, and provide a standard table or list for critical numbers. A visualization should make meaning more accessible, not hide it inside a decorative form.

Prepare Data Before Installation: From a Question to a Verifiable Table

Most chart problems begin before you even open the editor. A spreadsheet may already mix percentages and absolute values, dates may be written in different orders, and labels may refer to different periods. The block will faithfully render whatever it receives. Before creating the first chart, it is useful to prepare a small data brief: the question, source, unit, period, rounding rule, update owner, and expected chart type. This can be an ordinary note in your editorial system, but it saves time during later review.

Start by Defining One Question

The question should be answerable through one chart form. "How did the number of leads change month by month?" points to a line or area chart. "Which category generated the most leads in one period?" usually points to bars. "What makes up the total budget?" may point to shares, provided there are few categories and the total genuinely represents a whole. "Let's show all the analytics" is not a question and will almost inevitably turn the block into an overloaded graphic.

Next, make sure every data point follows the same measurement model. If January is measured in dollars and February in order count, the series is invalid. If one column uses calendar months while another uses rolling 30-day periods, the comparison is distorted as well. Do not hide that difference through axis settings. Instead, split the material, explain the methodological difference, or normalize the values before importing them.

Minimum Dataset Brief

• Metric: What exactly is counted and which events are included.
• Period: Which dates or intervals are being compared.
• Unit: Items, percentages, money, minutes, or another clearly defined measure.
• Source: Where the source table is stored and who is allowed to modify it.
• Rounding rule: How decimal values are displayed and why totals may differ by one hundredth.
• Verification: Which row or formula can confirm that final values were not lost during transfer.

This list is not bureaucracy. It lets you understand a week later why the chart contains exactly eight points, without forcing the author to guess what an old legend abbreviation meant. For public content, it also protects against accidentally displaying draft or sensitive data.

How to Organize Data for Different Chart Types

Line, area, and many bar charts typically use categories on the horizontal axis and one or more value series. The simplest model looks like this: categories are January, February, March; the "Leads" series is 42, 57, 61. If there are two series, the categories remain shared and the second series must contain the same number of points. Before importing, count the entries: every series must have the same length. Otherwise, a point may end up under the wrong label, and that can be difficult to spot visually.

Pie and donut charts are more commonly used for a single series of shares. Using too many segments is especially risky here. Five clear categories are usually easier to read than twelve thin colored slices. If there are many small values, combine them into an "Other" category only when you can honestly explain the grouping rule. Do not hide an important metric there simply because it hurts the composition.

Radar charts, heatmaps, and more complex options require caution. They are effective when the format itself helps reveal a pattern, but they are a poor choice for a first attempt simply because they look impressive. A radar chart needs consistent scales across all axes; otherwise, one broad range overwhelms the rest. For a heatmap, you need to explain what intensity means and how rows and columns are organized. If that explanation will not fit into one sentence next to the block, start with a simpler chart type.

After choosing the format, perform a small manual check. Select two end points and one middle point, find them in the source table, and write down the expected values. This simple habit helps you catch an incorrect delimiter, reversed rows, or a missing header long before readers see the content.

Preparing CSV Files Without Hidden Traps

If you plan to connect a CSV file, save a separate public version of it. It should not contain formulas with internal references, colleague comments, hidden columns with contact information, test sheets, or internal identifiers. Open the file in a regular text editor or upload it into a separate test spreadsheet and check the delimiter. In some locales, decimal values use commas, so a CSV that also uses commas as delimiters can split into extra fields. Do not rely on luck: choose a consistent number format and test the exact file that the block will read.

GreenShift documentation describes three CSV import layouts. In the first option, every row becomes a series, the first column defines the series name, and headings in later columns become horizontal labels. In the second option, the first column is used for category labels and following columns form series. The third option is simpler: the first column contains a label and the second contains a value, making it suitable for donut and pie charts. Choose the layout before publishing and do not change column order without reviewing the output again.

Name columns so they can be understood without knowing the source system. Instead of cnt, use Leads; instead of m1, use January or the exact period. If the source interface requires English keys, keep them in the technical layer, but define public labels in the chart. Readers should not have to decode abbreviations used only by your team.

Check before installation: open the future dataset separately from the editor and answer four questions: are all values actually numeric, are units consistent, does the category count match the number of points, and is the file safe to display publicly? If even one answer is unclear, fix the source first.

Installation and First Setup Without Confusing the Blocks

Once the data is ready, install and enable the main GreenShift plugin and the available Chart Addon using the normal safe process adopted on your site. After updating in the WordPress admin area, it is always useful to open a test post rather than an important public page. This separates compatibility testing from editorial work: if the block does not appear, styles behave unexpectedly, or the editor displays an error, your published content is not at risk.

In a new post, create a regular container for the future visualization. Decide immediately whether the chart will span the full content width, sit in a column next to explanatory text, or appear inside a card. A container that is too narrow makes labels unreadable even when the chart is configured correctly. If the article uses a wide layout, do not place the chart in a decorative block with a fixed narrow width just for symmetry. Readers need room for axes, legends, and values.

Where to Find the Chart Content Type

According to the official Dynamic Chart Addon description, a chart is available as a content type in Element Block. Add the required GreenShift block, open the content type selector, and find Chart. Panel names may vary slightly depending on the installed add-ons and editor state, so do not rely on an invented path from someone else's screenshot. Instead, look for the type selector itself and the available chart settings. If the element is missing, before changing the theme or clearing everything indiscriminately, confirm that the required add-on is enabled and that the main GreenShift package is updated to a compatible version.

For your first setup, use a preset that is close to your question. The developer states that more than twenty presets are available because the content is powered by ApexCharts. A preset is not the final design; it is a correct framework that shows the expected structure for series, categories, axes, and core settings. Replace data gradually so you can tell which action changed the output.

1. Create a draft post or page copy where you can review the output without risk to visitors.
2. Add a GreenShift Element Block and select the Chart content type.
3. Select a preset that matches the question: a line for time, bars for categories, or a donut for shares.
4. First replace one series and several categories with test values that are easy to verify manually.
5. Save the draft and open a preview in a separate tab rather than relying only on the editor canvas.
6. Only then move on to the complete dataset, styling, and an external data source.

This sequence may seem slower, but it actually reduces troubleshooting time. When chart type, JSON, width, palette, and CSV source are all changed at once, it becomes impossible to identify the cause of an unusual output quickly. One small, verifiable step at a time gives you a reliable point to return to.

Initial Check on the Public-Facing Page

After saving, open the page in a new window and reload it outside edit mode. Compare the series name, two test points, and category order with the source table. Make sure the chart is not clipped by its container or hidden behind a neighboring block. If a tooltip is used, hover over several points: the series name and value should match your data brief. At this stage, you do not need to perfect every shadow. First, confirm that the block displays the correct information.

Do not move the first working block directly into a template displayed across many pages. Test it in one post first, in a narrow window, and after a normal reload. A dynamic chart may have different data-format requirements, and the site may use caching. Testing one content instance makes rollback simple: you can remove the block or restore a previous post version without making broad template changes.

Once the test chart appears and the numbers are correct, you can move on to the main configuration work: series structure, source data, and meaningful presentation. These steps determine whether the graph becomes evidence in the article rather than an attractive but unclear background element.

Configuring Series and Categories Without Distorting Your Data

In GreenShift Chart, the output is built from two connected parts: values and display rules. Authors often see only the completed line and assume that choosing the right shade is the main task. In reality, structure comes first. A series answers the question "which metric are we showing?" while categories define the comparison points: months, stages, regions, service types, or answer choices. If these two elements are mixed up, the chart may look polished while telling a different story.

Start with a small amount of data. For a monthly trend line, three or four points are enough to verify the direction. For bars, prepare four categories and one series. For a donut, use five shares with a clear total. Enter these values through the available interface fields and confirm that the block changes the elements you expect. Then add the remaining rows. This method makes it easier to see where a label became a value or a series switched places with a category.

The "Category - Series - Point" Model

Imagine an editorial task: you need to show how consultation leads changed from January through June. The categories are the months. The series is "Leads." The series points are six numbers, one for each month. If you add "Confirmed Leads," that becomes a second series with the same six categories. The visualization will be more accurate if both metrics use the same unit and cover the same period. If confirmed leads are counted by processing date while all leads are counted by submission date, that must be explained clearly in the text; otherwise, the comparison line creates a misleading impression.

In another use case, you compare the number of publications across categories. The categories are category names, while the series is the number of posts. A line usually suggests a time-based process that does not exist here, so bars are a better choice. If category names are long, horizontal bars may be more readable than vertical columns. Do not change the data to fit the chart type; choose the chart type to fit the meaning of the data.

For budget shares, categories are expense items and there is effectively one series. A donut should not compare two different budgets within one circle. If you need to compare the composition of two periods, use two adjacent donuts with the same category palette or grouped bars. Viewers should see that the color for "Advertising" means the same thing in both periods, rather than having to infer it from a similar shade.

Check Alignment Before Saving

1. Read the first category and first point aloud as a sentence: "There were 42 leads in January."
2. Repeat the check for the final category, because series-length errors often hide at the end.
3. If there are multiple series, choose one middle category and compare all of its values against the table.
4. Make sure zeros have not disappeared. Zero is a value, not a missing entry, if the source genuinely records no event.
5. Check blank cells separately. Do not replace an unknown value with zero if that changes the meaning of the output.

The distinction between zero and missing data is critical. Zero means the measurement took place and the outcome was zero. A blank means the measurement was not made, the source is unavailable, or the value has not yet been confirmed. These cases should be distinguishable in the article text. If the block and chosen chart type cannot communicate uncertainty clearly, it is better not to draw a continuous line through that period, or to add an explanation beneath the chart.

Do Not Leave Category Order to Accidental Sorting

Time labels must follow chronological order. This seems obvious for January and February, but it breaks when the source uses text values such as April, August, and December. Standard alphabetical sorting does not know that these are months. The same applies to weeks, "before/after" periods, funnel stages, and sequential steps. Order must be explicitly defined in the source dataset, not produced accidentally after import.

For unordered categories, use a different principle: arrange them by value, by a clear grouping, or by editorial rationale, but document the selected rule. For example, a chart of category popularity can show the largest values first. An expense comparison can retain the structure of the budget. An opaque order forces readers to spend attention searching for a pattern that does not exist in the material.

If data is imported from Google Sheets, do not assume that sorting the sheet is always a cosmetic change. It changes the point order and therefore the line on the site. Before publishing a new snapshot, check not only the total, but also the first, middle, and last labels. This is particularly important for files edited by multiple people.

Working with Presets and JSON: Where the Convenient Interface Ends

The official GreenShift Chart description states that chart data is available in the underlying JSON format and that the field validates JSON. This is a useful capability, but it is not an invitation to edit everything at random. JSON defines a structure in which every closing bracket, comma, and quotation mark matters. If you are unsure about a parameter, it is safer to start with the fields generated automatically by the interface or save a separate copy of the configuration before making changes.

In practice, the best sequence is to select a preset, replace data through the interface, review the resulting values, and only then adjust a limited number of JSON options. This way, you do not build a configuration from scratch and can see working syntax for the selected chart type. If you edit JSON manually, click Initialize, as recommended by the developer, so the block reads the updated data and generates related fields and dynamic attributes where possible.

What Makes Sense to Change Through Fields

Value fields are useful for editorial work because their connection to a particular series is visible. They make it easy to rename a series, add or remove a point, replace a number, and check categories. If another person will maintain the chart later, a clear field set reduces the risk of accidentally damaging a working configuration. Always give series human-readable names. Technical labels such as series1 may be acceptable in a draft preset, but they should not remain in the legend on a public page.

Through available interface controls, it also makes sense to change height, chart type, legend, basic colors, labels, and general display settings. Make changes in groups: first data settings, then labels and axes, then styling. After each group, review not only the canvas but also the preview. This makes it easy to notice that a new height has placed adjacent text too close, or that hiding the legend has made two series impossible to distinguish.

If multiple series are used, assign colors with stable meaning. For example, an actual metric can remain saturated, a planned metric can be calmer, and a target value can be contrasting without resembling a warning for no reason. Do not change this convention from one chart to another on the same page. Consistent color use helps readers compare charts faster than a decorative palette of random colors.

When JSON Is Actually Needed

The underlying configuration is useful when available fields do not provide the required detail, when you need to transfer a small verified configuration fragment, or when the workflow requires an exact series format. The developer explicitly refers users to ApexCharts documentation for available options. This means the base chart object should follow the capabilities of that library, but not every option necessarily has the same visual control in a specific GreenShift build. Test the effect on a test page instead of copying a large external object with many unused parameters.

For a line chart, useful settings may include the type, height, series, categories, and tooltip settings. For bars, they may include bar and label options. In a complex use case, JSON lets you preserve an exact series model. However, do not insert external scripts, HTML strings, or unverified user fragments into it. Chart data should come from a trusted source, and any configuration on a public site should be entered as carefully as the content of a standard block.

{
  "series": [
    { "name": "Leads", "data": [42, 57, 61, 54] }
  ],
  "chart": { "type": "area", "height": "350px" },
  "dataLabels": { "enabled": false },
  "stroke": { "curve": "smooth" }
}

This short example demonstrates a principle, not a mandatory universal recipe. A series has a name and an array of numbers, type and height are placed inside the chart object, and additional settings control labels and the line. Before using it, replace the sample data with your own and make sure categories are defined in the appropriate place for the selected preset. Do not add options simply because they appear in an example for another chart type.

A Safe Manual Editing Sequence

First, copy the current working configuration into a task note or version-control system. Then modify only one meaningful section, such as series data or height, rather than changing everything at once. Confirm that the JSON remains valid, and use Initialize to apply the new data. After reviewing the page, return to the editor and make sure unexpected empty fields have not appeared. If the output is worse, restore the saved configuration in full rather than trying to correct every comma by trial and error.

You should not turn an editorial page into a place for constant programming. If one chart requires dozens of lines of unstable configuration, several special handlers, and manual corrections after every update, that is a sign to reconsider the data model or choose a specialized reporting system. GreenShift Chart is strongest when its configuration remains understandable to an editor and maintainable alongside the page.

Dynamic Attributes and Value Format

After initialization, the block can identify the value structure and create dynamic attributes. Documentation provides an example: if a chart has one series, an attribute similar to data-series-0 appears. For a simple number array, a dynamic field can return a comma-separated list, and the plugin converts it into an array. But if the chart uses coordinate objects, such as [{ "x": 20, "y": 54 }], the source must return repeatable data with x and y keys. A simple string of numbers is no longer equivalent to the required structure.

This distinction explains a common symptom: a standard static preset works, but after connecting a field, the chart is empty or some points disappear. Do not begin by changing colors or clearing the cache. First, compare the form of one static series with what the dynamic field actually returns. Check delimiters, spaces, decimals, value count, and key presence. Then enter the same output manually into a test dataset. If it does not work manually, the issue is not the dynamic connection.

When connecting WordPress meta fields, it is useful to agree on a format while the field is being created. Have editors always enter the value list consistently: without words inside a numeric field, without using commas both as separators and decimal marks, and without arbitrary currency text in every value. Human-readable labels are best stored separately from numbers. This makes publication more reliable and makes checking easier for content managers.

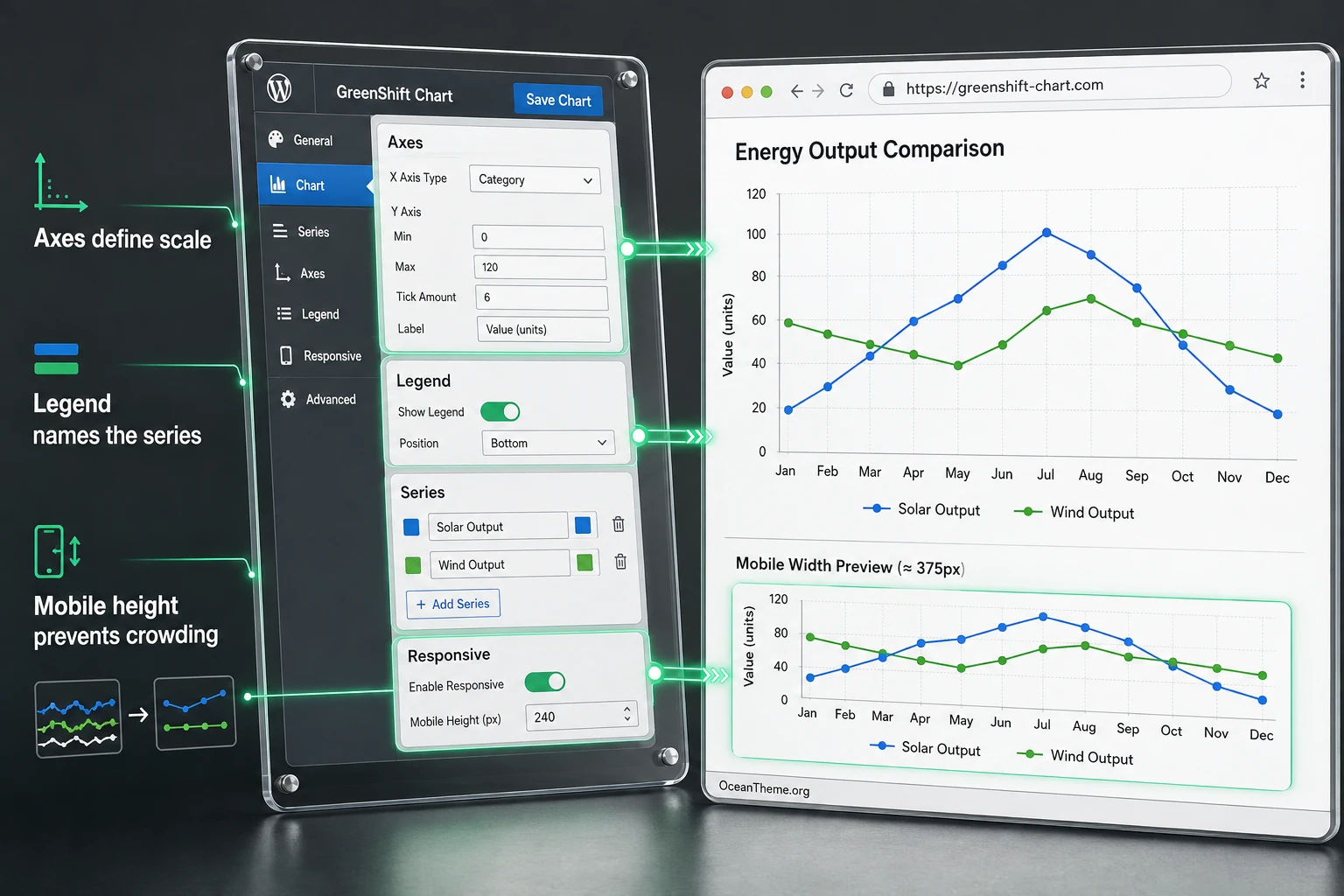

Axes, Legends, and Labels: Make the Chart Understandable Without Author Guidance

Once data is displayed correctly, the next stage is visual honesty. A chart should not create drama through a truncated axis, hidden units, or overly similar colors. Appearance settings are justified when they reduce reader effort: highlighting a series, preserving contrast, explaining the scale, and preventing elements from overlapping.

The first rule is that a chart needs context. A title or paragraph before it explains what is shown. A caption after it records the source, period, unit, and important limitation. A legend is needed when there is more than one series or when color conveys a distinction. If there is one series and its name is already clear from the title, a legend may simply consume space. But do not hide it automatically: first check whether it becomes unclear what the color or area represents.

Height and Container Matter More Than Small Effects

The developer specifically recommends keeping a static block height. This is also useful for predictable layouts: the page shifts less during loading, neighboring elements do not change position, and readers retain enough room for the data. Height should match the task. A short series of four bars does not need a huge canvas, but ten axis labels will not fit inside a narrow, low container.

Check the chart within the actual article width. A wide editor canvas can conceal a problem that becomes obvious in a post with a sidebar. If category labels are long, try shortening them without losing meaning, changing the label orientation, or switching to horizontal bars. Do not reduce the font until text can only be read when zoomed in. White space around data is more useful than another decorative effect.

Color Should Not Be the Only Signal

Choose contrasting shades that remain distinguishable even without perfect vision or a bright display. Two similar blue series may look attractive in a mockup but disappear during a quick review. Clear labels, different line types, markers, or legend order can help. For one series, use one primary color and a neutral grid. For multiple series, limit the palette to a few stable shades rather than turning every series into its own neon signal.

Use red with particular care. It is often understood as an error, risk, or negative value. If red merely marks a second normal series, readers may draw the wrong conclusion. Use a more neutral color or explain the meaning beside the chart. The same applies to green: it should not mean "growth," "planned," and "available" in different blocks on the same page.

Labels, Tooltips, and Accessible Text

A tooltip is useful for exact values, but it should not be the only way to understand what is happening. A reader on a touch device, using a keyboard, or reviewing quickly may not use it. The main conclusion should be understandable from the title, chart form, and surrounding text. If every value matters, add a compact table or list beneath the visualization. That is not duplication for length; it is an accessible backup layer for verification.

Do not overload the chart itself with labels for every point when there are many of them. Numbers will begin to overlap and distract from the trend. Keep only key values visible if the selected preset and task require it, and provide the full set in a table or tooltip. In decision-making content, it is more helpful to show the direction and one or two turning points clearly than to create a wall of small numbers.

Configuration summary: first prove that the structure is correct, then make the chart readable. If the question, unit, categories, series distinction, and main conclusion remain clear when the window becomes narrower, the configuration is successful.

CSV and Google Sheets: Organizing Updates Without Breaking the Chart

Connecting an external file only makes sense when it genuinely simplifies maintenance. If an editor changes five numbers twice a year, a manual series inside the post may be more reliable. CSV or Google Sheets are justified when data changes regularly, one source matters across several materials, or the person responsible for the spreadsheet does not work in WordPress. In that case, treat the task not as "paste a link," but as an agreement between the source and the chart.

The main risk of an external source is an unnoticed structural change. A colleague may rename a column, insert an interim-total row, make the first column textual, change the delimiter, or remove shared access. The block cannot tell which of these changes was intentional and which was accidental. A maintainable chart therefore needs a source owner, a publicly safe file, a control set of values, and a clear procedure after updates.

Choose One of Three CSV Layouts Before Importing

The official Dynamic Chart page describes three formats. In the first, every row is a series. The first column contains its name, while the first row in later columns contains horizontal-axis labels. This layout is natural for line charts, area charts, and some multi-series charts. For example, a "Plan" row may contain monthly values, while the next "Actual" row contains a second set for the same months.

In the second format, the first column remains a category list and every following column becomes a series. This is useful when the spreadsheet is already arranged like a standard report: one row per month, followed by separate "Leads," "Confirmed," and "Canceled" columns. According to the documentation, this type can be used for bar variations, radar charts, and heatmaps. It is easy for people to read in a table, but before importing, make sure no extra text column enters the numeric series.

The third format contains two columns: a label and a value. It suits pie and donut charts, where one distribution series is needed. It should not be used for time trends if the author expects to show several comparable series. Choose the structure based on the meaning of the future chart, not because it looks more convenient in a spreadsheet.

Period,Leads,Confirmed
January,42,31
February,57,44
March,61,49
April,54,43

This example reflects the second format: the first column provides categories, and the next two provide series. Before importing, make sure actual values do not contain currency symbols, thousand separators, comments, or formulas that return text. If you need to show money, store clean numbers and state the unit in the axis, title, or nearby caption. Then calculations and presentation will not conflict with one another.

Preparing Google Sheets for Safe Reading

GreenShift documentation states that Google Sheets only needs view access, not edit access. This is an important distinction. The link read by the chart must not give outside users permission to modify data. If the sheet includes working comments, internal formulas, or personal data, do not publish it as a whole. Create a separate sheet or export that contains only the required public columns.

Before connecting it, check the link in a private browser window. If it does not open without authentication, the block on a public page will not receive values either. If it reveals too much information, access is configured too broadly. Check the export format as well: a visually polished working sheet may contain merged cells, extra headings, blank rows before the table, or several tables on one tab. Import requires a simple, predictable range.

Do not make the first row data if it should be a heading, and do not leave internal top rows such as "Draft," "Do Not Publish," or an author's name. The plugin will try to interpret the structure according to the selected type, not according to your team's internal intention. If the table is calculated with formulas, update and review the values before publishing so the site does not display a temporary empty state after an error in the sheet itself.

Spreadsheet Owner Checklist

• The public sheet has view-only access when it is used as a chart source.
• There are no internal rows, blank introductory blocks, or multiple unrelated datasets above the table.
• Category and series names do not change arbitrarily between updates.
• Numbers are not mixed with currency symbols, textual estimates, or manual comments.
• One person knows where to check the latest values and how to restore a previous sheet version.
• After changes, the published page is checked, not just the spreadsheet itself.

If different languages matter for the source, do not translate labels automatically in the middle of a series. Prepare separate controlled columns or separate sources for each locale. The data may be the same, but category labels must be readable for the target audience. Otherwise, the chart may be technically correct but unclear to visitors.

Dynamic Loading and Caching: Updates Have a Cost

The developer describes internal endpoints for dynamic CSV loading: when Google Sheets or CSV data changes, the new values can appear in the chart. To use this, enable the Dynamic Loading option; updates occur when the page reloads, and caching is set in seconds. The important conclusion is that "dynamic" does not mean "instant in every situation." The cache setting itself defines the tradeoff between freshness and the number of source requests.

For a regularly updated but non-critical report, it makes sense to select a cache period that matches the actual update frequency. If data changes once per day, querying the source on every page load is usually unnecessary. If the site shows an operational dashboard whose value depends on freshness, the interval can be shorter, but you then need to assess source stability and load. Do not use a short interval merely so the chart can be called "almost real time."

Do not confuse caching within the dynamic loading workflow with WordPress, CDN, or optimization-plugin caching. The external file may already be updated, GreenShift's internal cache may still be waiting to expire, and the site may still be serving an older page copy. When troubleshooting, document the entire path: source, Dynamic Loading setting, internal interval, page cache, and browser cache. Clearing one layer does not prove that another layer has stopped serving stale data.

Dynamic Fields and APIs: Connect Data Only When Its Shape Is Clear

Moving to dynamic fields is justified when the same chart layout must display different values depending on a WordPress post, product, profile, or other context. The official Dynamic Chart page says that charts can connect to Dynamic Fields, including API Connector. Chart is also available as a content type in Element Block. This combination makes it possible to pull values from site data, but it requires far more discipline than manual entry.

First decide what remains static and what changes. Chart type, title, axis structure, and styling are usually part of the template. The series name, numbers, labels, or individual settings can be dynamic. Do not try to make every small detail dynamic simply because it is technically possible. The more dynamic parts there are, the harder it becomes to verify that the template works consistently for an empty post, a typical post, and a post with unusual data.

Simple Arrays and Coordinate Pairs Need Different Sources

If the selected preset expects a simple number series, the dynamic field must return values in the corresponding form. Documentation provides a straightforward case: a comma delimiter can be converted into an array. But that is not a universal rule for every type. Points with coordinates require a repeatable structure where each object contains x and y keys. If one post returns numbers while another returns text dates with numbers in a different structure, one template cannot reliably process both cases without data preparation.

A good practice is to create three test posts first. The first contains a normal complete dataset, the second contains the minimum valid dataset, and the third is an edge case with a long label or a zero value. Connect the dynamic field, open each post, and verify not only block visibility but also the meaning of axes, legends, and tooltips. This test reveals whether the template truncates a long name, hides a zero point, or breaks scale with a small amount of data.

An external API adds another layer of risk: the endpoint may fail to respond, the response structure may change, access may depend on a key, or the source may return too much data. Do not put secrets or private keys in public page fields. First build a safe, controlled data path, limit the dataset to the required numbers, and only then pass it to a dynamic chart through capabilities supported by your GreenShift configuration. If no such preparation layer exists, a manual import or public CSV may be more reliable.

A Practical Connection to WordPress Meta Fields

GreenShift documentation for dynamic fields describes working with post data and popular field systems, including ACF, Meta Box, ACPT, and JetEngine. A practical approach looks like this: an editor fills in predefined numeric fields, and a template outputs one chart for each post. Do not present this as an official ready-made integration for a specific chart type if your add-on set differs. It is a safe approach based on GreenShift's documented dynamic-data capabilities, and it should be tested on a site copy.

1. Create clear numeric fields and separate fields for labels, without mixing numbers and text in one value.
2. Define the minimum dataset below which the block should not display or should use a neutral fallback.
3. Create a test post with the full dataset and manually build the same static chart for comparison.
4. In Element Block, prepare a working chart structure, initialize it, and connect only the required dynamic attributes.
5. Check several posts, then open the public-facing site without administrator privileges.
6. If the output does not match, disable the dynamic connection and return to the verified static configuration instead of editing visitor-facing data directly.

In this setup, it is useful to keep numbers in a machine-readable format and meaningful explanations in standard editorial text. Do not force a content manager to write JSON in a post description field when a set of numeric and text fields can achieve the same purpose. Human errors in data format should be as localized and easy to identify as possible.

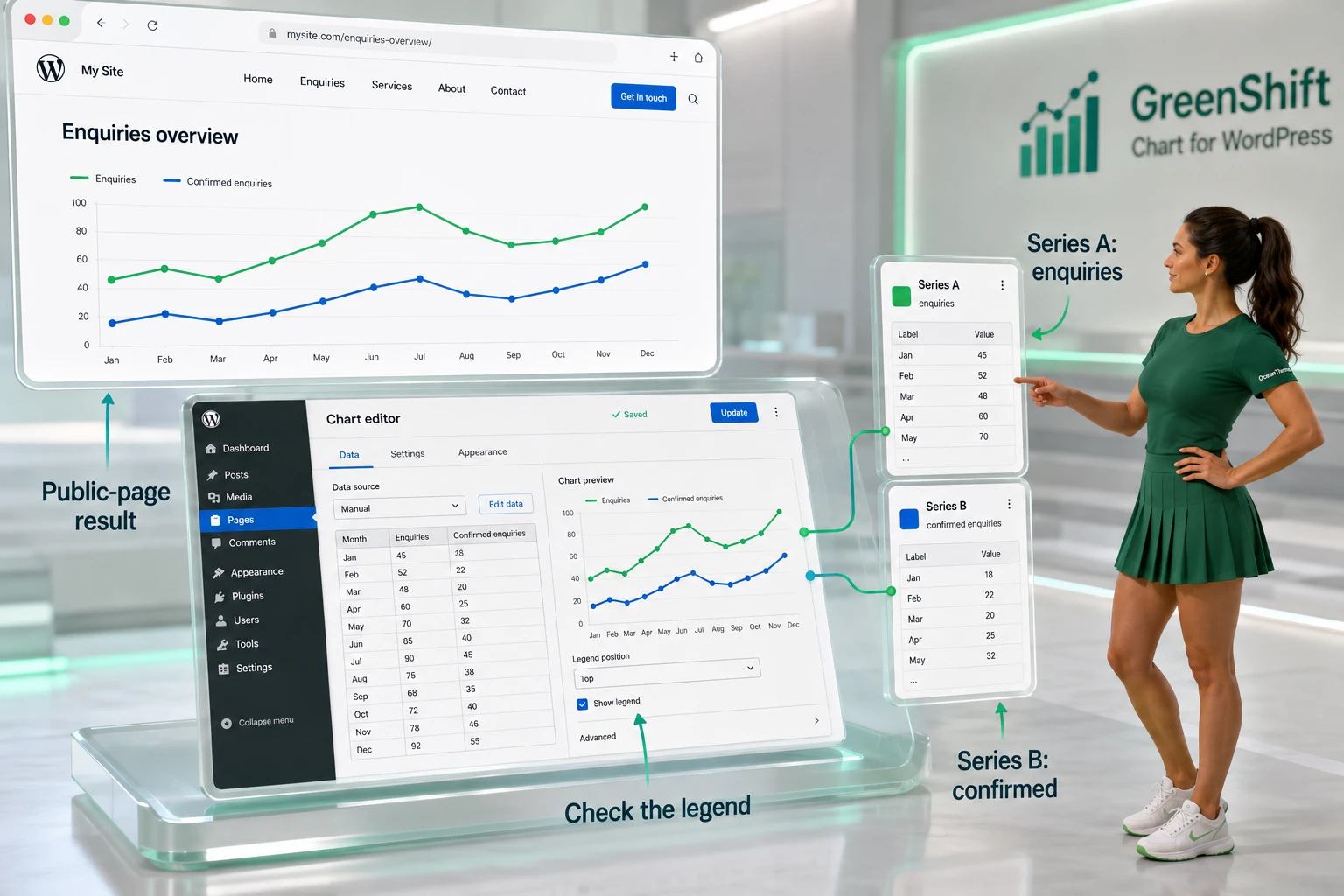

Practical Example: Monthly Leads from a Shared Spreadsheet

Consider a concrete use case. A consulting website has an editorial page showing monthly lead trends. The goal is not to expose raw inquiry logs, but to show changes in the number of leads and confirmed inquiries over four months. A manager maintains the data in a separate spreadsheet. Visitors do not need access to the working sheet, but they should be able to see a clear trend and understand that the two series mean different things.

Preparing the Dataset and Publication Rules

Create a separate sheet with three columns: period, leads, and confirmed. Each row should represent one complete month. Do not add conversion rate, comments, expenses, or total formulas to the same range if the chart does not use them. Column names should be clear, and numbers should be whole values or rounded in advance using an agreed rule. Confirm that "confirmed" does not exceed "leads" if that relationship is expected in the workflow. If it can exceed leads because of a different methodology, explain that next to the chart.

Publish only a view-only sheet. Remove surnames, phone numbers, addresses, inquiry IDs, and any fields that can connect a number to a person. Updating a chart does not justify publishing a working register. If you cannot separate a safe range from internal data, use a manual editorial series or a prepared export without personal information.

Creating the Block and Performing the First Check

On a test page, add an Element Block with the Chart type and choose a preset with two series. For this question, a line or area chart is suitable because categories represent time. Set a clear height and add the four categories from the table. Then enter the first two values in each series manually. Open the preview and make sure January matches the first pair of numbers and April matches the final pair. Only after this check should you import the complete CSV or connect the spreadsheet.

If you use the second CSV format described above, specify the source and choose a layout where the first column provides categories and following columns provide series. After the file is read, do not immediately start styling the chart. Compare all four "Leads" points and all four "Confirmed" points with the sheet. Compare series names with the headers. If one field loses non-English characters, displays an extra symbol, or becomes blank, stop and fix the file format.

Styling the Output With Meaning

After verifying the data, add a title before the block, such as "Leads and Confirmed Inquiries by Month." In a nearby paragraph, explain what each series means and which period it covers. Reserve one shade for leads and another for confirmed inquiries; do not use red merely for contrast if the second series does not indicate a problem. Enable the legend because there are two series, and make sure it does not overlap the axis at narrow widths.

Below the chart, add a short methodological caption: the data is collected from inquiries for each complete month, an inquiry is considered confirmed after a defined internal step, and updates occur on a schedule. This caption matters more than a decorative statement about "growing interest." It lets readers interpret the gap between the series correctly and reduces the risk of drawing an unsupported conclusion from the trend.

Verifying the Output: Numbers, Screen Size, Updates, and Context

A chart is not finished when it appears nicely in the editor. It is finished after four checks. A numeric check confirms whether points match the source. A visual check shows whether axes, legends, and labels are readable in the real container. An update check proves that a new spreadsheet or dynamic field changes the output within the expected timeframe. A context check answers the more important question: can readers understand the conclusion correctly without an author explaining it aloud?

Number Verification Should Not Be Conveniently Selective

Compare the first, middle, and final category in every series. If there are two series, compare both values for the same period. For a pie chart, add the shares in the source and confirm that they genuinely describe a whole. For percentages, compare the sum with the methodology: it does not always have to equal exactly 100 if respondents could select multiple answers. In that case, the caption should state that percentages are not shares of one whole.

Do not use the absolute height of a bar as proof of an exact number. The axis, rounding, and scale can create an impression that does not match the value. Give visitors a way to obtain the exact number through a tooltip, label, or nearby table. If the material informs an important decision, provide a reference to a primary public source or clearly describe the collection method in the page text.

Testing at Different Screen Widths

Open the page at a typical desktop width, then narrow the window and check phone landscape orientation if it matters to your audience. Do not only look at whether the chart fits as a whole. Confirm that axis labels do not overlap, the legend does not shift the chart, and the tooltip does not extend beyond the container. GreenShift documentation mentions a separate quick mobile height setting and the ability to define options by breakpoints. Use them when they solve a specific height issue, but do not hide critical data on mobile simply for compactness.

If data becomes a collection of unreadable points on a narrow screen, there are several honest options: reduce the number of categories in that visualization, move a detailed table below it, choose a different chart type, increase height, or split one overloaded chart into two. The worst option is to leave micro-labels that technically exist but are practically inaccessible.

Output check: change one test value in the source, wait for or temporarily modify the agreed update interval only in a test environment, then view the page while logged out of the WordPress admin area. If exactly the expected point changes, the labels and legend retain their meaning, and the older version can be restored from source history, the workflow is configured reliably.

Performance, Loading, and Export: Settings That Affect the Reader Experience

A chart on a page is not only a dataset. It also includes rendering code, its place in the document, loaded resources, and visitor interactions. A page with one well-prepared chart usually benefits from care rather than from the maximum number of effects. GreenShift documentation notes that the chart library is fairly heavy and uses smart loading after user actions; immediate loading can be enabled when needed. That is not a reason to declare every option fast without measurement. It is a reason to make a deliberate decision for the task.

If the chart is far below the fold and serves as supplementary explanation, deferred loading can be reasonable. The visitor reads the main text first, while the chart and its library activate during interaction. If the chart is the main part of a report that visitors need to see immediately, test the immediate-loading option. Make the decision based on the behavior of the specific page: how quickly the central message appears, whether an empty area is created, and whether delayed rendering affects access to information.

Static Height Reduces Layout Shifts

The developer recommends keeping a static block height. In practice, this protects the page from a noticeable shift when the container initially occupies little space and then becomes taller after a script runs. The shift is especially unpleasant on mobile: the user may already be reading the next paragraph when the chart suddenly pushes text downward. Choose height based on the number of labels and the chart type, save it in the settings, and test several container widths.

Do not confuse fixed height with fixed width. The block should remain part of the page's responsive grid. Do not set a width that creates horizontal scrolling merely to preserve the large appearance of a desktop chart. On a small screen, it is better to adjust height, simplify the legend, shorten very long labels, or place the complete table below. Text and data must remain accessible, not merely fit inside a frame.

When Readers Need Export

The Dynamic Chart page describes the ability to download a chart as an image or SVG through a toolbar, as well as creating a custom button using a special class from the settings. This can be useful for reports, presentations, and materials that visitors are allowed to save. However, an export button should only be enabled when the content is genuinely intended for further use and the source permits that distribution. Do not add export by habit to every illustration, especially when data is licensed for viewing on the site but not for republication.

The core ApexCharts mechanism also supports PNG, SVG, and CSV export through its toolbar. However, GreenShift applies its own interface and configuration, so test export in the assembled block rather than relying solely on the library reference. Open the menu on a real page, download one file, and check the readability of the legend, title, and values. If the format is not useful to the audience, do not create a separate button for it or make maintenance more complicated.

One important detail appears in GreenShift support discussions: the quality of an exported PNG can depend on the actual visualization size. Do not promise print-quality output merely because an export option exists. If downloading is a core feature, test at the target width, with the required dataset, and in the browser used by your audience. If resolution is insufficient, first try increasing available space or consider SVG where it fits the workflow, rather than adding unverified workaround code to the plugin core.

Watermarks and Titles in Exported Output

According to the documentation, you can add a custom watermark image to a chart, and the text title is also included in the downloaded visualization. If the watermark must appear inside the exported image itself, the developer notes that a Base64-encoded source is required; an external path may be visible on the site but omitted from the download. This technical detail should be tested on a page copy before broad adoption.

Do not use a watermark as a substitute for a source. It can identify the report owner, but it does not explain the methodology, period, or dataset composition. If branding is needed, keep it subtle and do not cover lines or labels. For a public report, a clear title, compact caption, and methodology reference are usually more important. A watermark that makes a chart harder to read reduces the value of even well-prepared material.

Interactivity Without Traps: Toolbars, Tooltips, and Accessibility

Interactivity is useful when it helps people explore data rather than hiding it. In ApexCharts, the toolbar can include downloading, zooming, panning, resetting, and selecting an area. For a specific GreenShift chart, choose only the capabilities that match reader behavior. Zooming is often unnecessary for a few months in a regular article. It may help with a long time series, but nearby text should then tell visitors that they can zoom into a range and how to return to the original view.

A hover tooltip is useful for reading an exact point. Confirm that it does not hide the point itself, stays within the container, and displays the series name along with the value. Do not leave technical names in place or use a series abbreviation understood only by the table author. If two series have similar values, the tooltip should make them distinguishable without forcing readers to guess.

Do Not Make a Gesture Required for Understanding

A mouse user can hover, a touch-screen user can tap a point, while readers using a keyboard or screen reader interact differently. That is why a meaningful sentence before or after the chart should preserve the main conclusion. For example: "After February, lead volume increased, while the gap between all and confirmed inquiries did not widen." This does not replace the data; it explains what deserves attention.

If the chart supports an important comparison, add a standard table or list of key values nearby. The table does not have to reproduce the entire visual effect, but it should allow figures to be checked without complex interaction. A strong pair looks like this: the chart reveals the trend, while a compact table confirms exact numbers and units. This approach helps with both editorial review and accessibility.

Animation Changes Need a Meaning Check

Animation can gently reveal a series, but it should not make users wait for data or create an illusion of growth where none exists. During screen recording or on a slow connection, complex animation can distract more than it helps. If a visualization loads after interaction, make sure it remains clear that a chart will appear in the area. Do not leave an empty container without a title and explanation.

For an analytical article, calm rendering is usually better than dramatic animation. It helps readers compare values without imposing an emotional interpretation. If your theme uses a shared GreenShift design with smooth transitions, remain restrained: an interactive block should support the page rhythm, not become a standalone promotional scene.

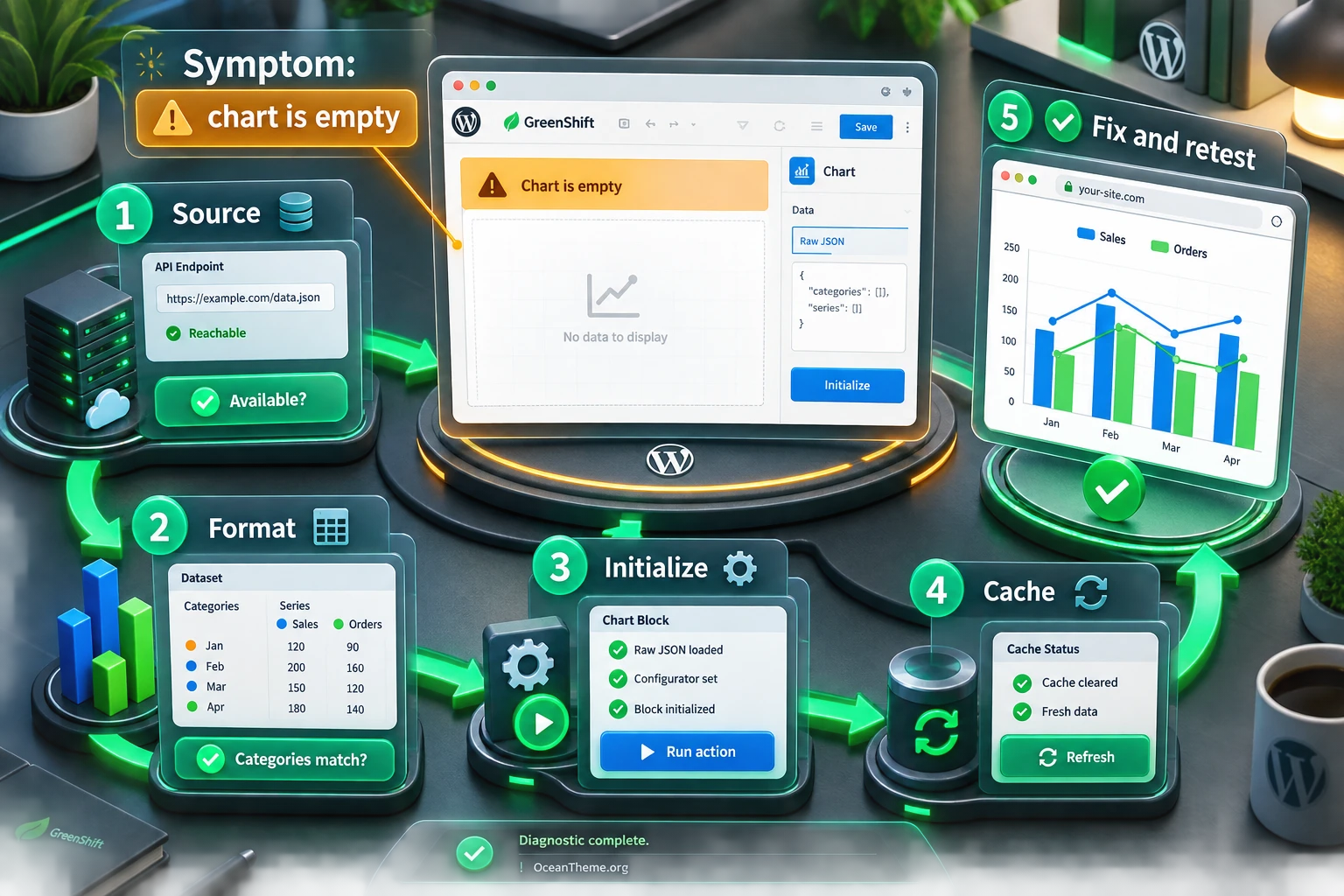

Diagnosing and Fixing Common GreenShift Chart Issues

Diagnosing and Fixing Common GreenShift Chart Issues

When troubleshooting, it is useful to move from the visible symptom to the source rather than changing five settings in a row. A chart is built from data, block configuration, library loading, container size, and, when an external source is used, the update path. Check these layers in sequence and retain one known working version that you can restore.

The Block Is Missing From the List or Does Not Appear on the Page

Symptom: you cannot select the Chart type in a test post, or after saving, an empty space remains instead of the expected output. Likely cause: the add-on is unavailable, the main GreenShift package and add-on are in incompatible states, the block was added to the wrong container, or another extension is causing an error on the page. What to check: first open a clean test post, make sure the main GreenShift plugin and required add-on are enabled, and then verify that Chart can be selected in Element Block.

Fix: update related components through your site's normal process and test on a copy or draft. Do not begin by disabling every extension on a live site. If the block still does not appear after updating, restore the last stable configuration and review browser messages and WordPress logs with the site developer. When to roll back: if package changes affected other public blocks or you cannot reproduce the issue in an isolated test.

The Chart Appears, but Points Do Not Match Labels

Symptom: the line looks plausible, but the January value appears under March, one series ends early, or the legend shows an extra name. Likely cause: categories and series have different lengths, the wrong CSV type was selected during import, the first row was mistakenly interpreted as data, or columns were swapped. What to check: compare the category count with the point count, then manually verify the first, middle, and last pair.

Fix: restore a simple test dataset with several values, convert the CSV to one of the formats described by the developer, and import it again. When using JSON, click Initialize after editing so the configuration is read again. When to roll back: if multiple people have already changed the external source and the original column order cannot be restored, temporarily use a verified static series until the source is cleaned up.

The Chart Is Empty After a Dynamic Connection

Symptom: a static preset displays points, but after connecting a field, an empty area appears or some data disappears. Likely cause: the field returns a string in the wrong format, a local decimal separator interferes with parsing, a simple array is used where x/y objects are required, or one post lacks a required value. What to check: retrieve the actual field value for a specific post and compare it with the form expected by the working static preset.

Fix: first enter the returned form manually into a test configuration. If it does not work, normalize the data before connecting it: separate text from numbers, define a repeatable structure, and remove extra spaces. If it works manually, restore the dynamic connection one attribute at a time. When to roll back: if the data lifecycle is not yet defined, keep a static block and do not publish unpredictable dynamic output.

The New Spreadsheet Is Updated, but Visitors Still See Old Values

Symptom: the author sees new numbers in Google Sheets or CSV, but the page continues to display the old chart. Likely cause: dynamic loading is not enabled, the cache interval is still active, WordPress or CDN caching is serving the page, or the browser has an old copy. What to check: record one test number, the time it changed, and every caching layer. Open the page in a private window and compare it with a draft test.

Fix: use the agreed update interval and clear only the cache that definitely applies to the page, following your site's procedures. Do not reduce the interval to zero on a high-traffic page for one test. When to roll back: if very frequent loading causes noticeable instability or the external source cannot handle frequent requests, return to a longer interval and update the chart on a schedule.

The Chart Is Crowded or Clipped on Mobile

Symptom: the legend covers the data area, axis labels turn into overlapping characters, or the tooltip extends beyond the boundaries. Likely cause: the container is too narrow for the selected category count, height is not adapted, long names are not shortened, and the desktop configuration was transferred without testing. What to check: open the published page at the actual container width, not only on the wide editor canvas.

Fix: use the available mobile-height setting, shorten labels without changing their meaning, split an overcrowded chart, or switch to a more suitable format. When to roll back: if compactness requires hiding key categories or making text microscopic, restore a simpler, more readable version and keep the details in a table.

The Downloaded PNG Looks Too Small or Blurry

Symptom: the chart itself is readable on the page, but the exported raster image is insufficient for a document or presentation. Likely cause: export size follows the actual visualization size, an unsuitable format was selected, or the specific build has a limitation. What to check: test export at the target block width and compare PNG with SVG where later scaling is required.

Fix: increase the available chart area in a test workflow, check toolbar settings, and choose the format that fits the purpose. Do not make unverified changes to plugin files. When to roll back: if export is not an essential part of the page, it is safer to hide a nonworking capability and retain a verifiable browser display.

Combining an Editorial Table, Caching, and a Page Template

GreenShift Chart works best as one layer in a clear process. A spreadsheet or meta fields are responsible for source values, the chart provides visual explanation, page text provides methodology and conclusions, and caching controls a reasonable update frequency. When these roles are not mixed, editing does not become a search for numbers across several blocks. This is a practical WordPress approach, not a claim of a special official integration among every extension in use.

Assign Ownership Before Publishing

Assign one person as the source owner and, if necessary, another as the page owner. The first person is responsible for correct numbers and structure. The second is responsible for readability, captions, context, and checking the public-facing site. If one person performs both roles, it is still useful to separate the stages over time: confirm the data first, then prepare the visualization, then review the page with fresh eyes. This greatly reduces the chance that an attractive chart will conceal an error in a source row.

The caching layer should be visible in the support instructions. Document the expected dynamic-loading interval, who clears page cache for an unplanned correction, and how to check the real output without an administrator account. Then an urgent correction will not turn into a series of random clicks. If an update cannot be confirmed, it is more honest to add a temporary note about the delay than to pretend that the figures have changed.

How to Preserve Styling Across Different Materials

Create a small editorial rule: actual values use one color, the compared series uses another, warnings use a separate shade only for genuine warnings, the title appears above the block, and the source and methodology appear below it. Keep a verified base preset as a reference, but do not copy data and axes from it without checking them. A consistent style is useful not for template-like uniformity, but because it helps readers understand several charts on the site more quickly.

Do not change chart settings during ordinary text editing unless the task requires it. A visualization is part of the factual content. Any replacement of a series, category, CSV format, or caching behavior requires the same review as updating figures in the table. This small discipline protects both the editor and the visitor.

When GreenShift Chart Is a Good Choice

GreenShift Chart is worth using when a site needs a clear interactive chart as part of block-based content and the team is ready to prepare a correct dataset first and verify the output afterward. Its strengths are its connection to Element Block, presets, JSON access, dynamic fields, CSV, and Google Sheets. But the plugin's value does not come from the number of effects. It comes from author discipline: one question, one reliable source, one clear chart type, and a review after every meaningful change.

Start with a test post, a small verifiable series, and a simple format. Then add the real source, configure height, the legend, and a clear caption, check the mobile screen, and only after that move the solution into a working template. If the workflow turns out to be too complex for a maintainable block, that is not a failure - the data may require a separate table or reporting system. If the task fits the publication of a clear trend or comparison, you can download the GreenShift Chart archive and repeat the safe workflow on a copy of the site.
