Gravity Forms GP Sliders - WordPress Plugin

A Practical Guide to Configuring and Using Gravity Forms GP Sliders

Gravity Forms GP Sliders is not meant to simply "dress up" a form. Its real job is to replace awkward numeric input with a clear slider-based way to choose a value. This guide walks through practical WordPress use cases: when to use a dedicated Slider field, when to enable a slider on an existing Number or Quantity field, and how to configure steps, ranges, labels, calculations, conditional logic, and result validation.

This material is written for site owners, webmasters, and developers who already work with Gravity Forms and want to make forms easier to use: pricing calculators, rating scales, budget ranges, quantity selectors, donation forms, questionnaires, or lightweight scoring flows. It does not cover buying the plugin or activating a license. The focus here is configuring and testing a product you already have access to.

Special attention is given to the areas where users most often make mistakes: using a step that is too small, confusing visual formatting with stored data, placing fields in the wrong order for calculations, trying to build a range with a Number field, and creating conflicts between conditional logic and calculations. At the end, you will find troubleshooting, an FAQ, related solutions, and a link to the download section.

When a Slider Works Better Than a Standard Number Field

A standard Number field works well when the user already knows the exact value: age, number of attendees, room number, donation amount, or a score. But as soon as the user needs to choose from a range, manual input starts to slow the interaction down. The user has to understand the allowed limits, type a number, deal with validation errors, and sometimes go back and try again. A slider shortens that path: the boundaries are visible immediately, the step setting constrains the choice, and the current value can be shown next to the handle or in a tooltip.

Gravity Forms GP Sliders adds two approaches to Gravity Forms. The first is a dedicated Slider field in Advanced Fields. This gives you more control: single value or range selection, numeric mode or custom choices, step labels, tick marks, orientation, and display formatting. The second is enabling a slider on an existing Number or Quantity field through the Perks tab. That approach is useful when the form is already built and you want to improve a field without rebuilding the logic.

The real value of GP Sliders is not the handle itself, but controlled numeric input. The user sees the allowed values and drags the handle, while Gravity Forms still receives numbers that can be used in calculations, conditional logic, notifications, confirmations, exports, and entry details. That is why a slider works well in forms where not only the visual experience matters, but also the downstream handling of the data.

Good use cases for a slider include:

• A pricing calculator where the user chooses the number of seats, hours, pages, products, or services and the total updates automatically.
• A budget, age, weight, area, score, or timeline range where you need two handles for the start and end of the range.
• A rating scale in a questionnaire where each number maps to a clear label, such as "Poor" to "Excellent" or "Never" to "Always."
• A donation or request form where fixed increments help prevent random input.
• A scoring form where several answers need to feed into a total result.

There are also cases where a slider is the wrong tool. If the value must be entered precisely from the keyboard, if the range is extremely large, if the user needs to paste a number from an external calculation, or if the form is meant for fast internal admin work, a slider may be unnecessary. It helps when the choice is visual, constrained, and clearly explained by the scale. If the scale itself is unclear, the slider only hides the problem.

What to Check Before Installing It on a WordPress Site

Before installing anything, do not start with the slider UI itself. Start by checking the foundation: your Gravity Forms version, how Gravity Wiz products are installed, the current form structure, and any theme or scripts that already affect fields. GP Sliders works inside the Gravity Forms ecosystem, so problems with calculations, conditional logic, or form embedding can easily look like slider issues even when the real cause is nearby.

Minimum checks before enabling it:

• Gravity Forms is installed and working on the site, and the target form already opens in the editor without errors.
• You have administrator access to Plugins, Forms, and the form settings.
• If the product is installed through Spellbook, Spellbook itself is installed, activated, and shows Gravity Wiz products under the Forms menu.
• The form where you are adding the slider is not overloaded with dozens of unnecessary conditional dependencies.
• You have a test page or private draft where you can embed the form and check the public-facing behavior without risking real submissions.

For commercial or calculation-heavy forms, also verify that you have a site backup and a clear rollback path. The slider itself should not delete data, but changing a field, formula, or conditional logic can affect what gets stored in the submission and what the administrator receives. Before changing a live form, it is smart to duplicate the form and test the configuration on a copy.

If you are modifying an existing Number or Quantity field, list everywhere that field is used: calculations, conditional logic, notifications, confirmations, integrations, exports, CRM flows, payment logic, or custom templates. The field can be restyled quickly, but the dependent logic must remain predictable. After enabling the slider, do not stop at the form screen. Check the saved entry in Entries as well.

A practical rule: if a field affects pricing or sends a value by email, test it on a staging form first. Do not change a live form during peak traffic, especially if submissions go directly to a manager or an external system.

Installation and First Validation Through Spellbook or the Standard Plugins Screen

Gravity Wiz is moving its products to Spellbook, a platform plugin for installation, updates, and product management. In Spellbook documentation, it is described as a central hub for Gravity Wiz products: it appears in WordPress under the Forms menu, shows the products available to you, and handles installation and updates. If your site already uses Spellbook, the logical path is to open it, find GP Sliders, and install the product there.

If you have the product as a ZIP archive, installation follows the standard WordPress flow: Plugins -> Add New -> Upload Plugin -> choose the archive -> Install Now -> Activate Plugin. This is the usual WordPress method for plugins, and it is useful as a fallback if installation through the platform manager is unavailable for some reason.

Initial Check After Activation

After installation, do not jump straight into building a complex calculator. First, verify that the plugin added the expected elements to the form editor:

1. Open Forms and select a test form.
2. In the form editor, check the Advanced Fields group. The Slider field should be available there.
3. Add a Slider field to the end of the form and save the form.
4. Open the form in preview mode and make sure the slider displays correctly, moves properly, and does not break the layout.
5. Add a regular Number field and open its settings. In the Perks tab, there should be an option to enable a slider for that field.

This check matters because it separates two kinds of issues. If the Slider field does not appear in the editor, the problem is likely installation, activation, or permissions. If the field appears in the editor but looks wrong on the public page, the issue is usually the theme, styles, caching, script optimization, or a conflict with another plugin.

What Not to Test at This Stage

Do not start with a payment form, complicated formulas, or real notifications. For the first pass, one form with one Slider field is enough. Once the basic slider works, you can move the setup into the real form and gradually add calculations, conditional logic, labels, and formatting.

It is also not a good idea to enable every visual option right away: tick marks, labels, tooltips, display value, prefixes, suffixes, and vertical orientation. They are useful, but for an initial test it is much easier to isolate problems when only one feature is enabled at a time.

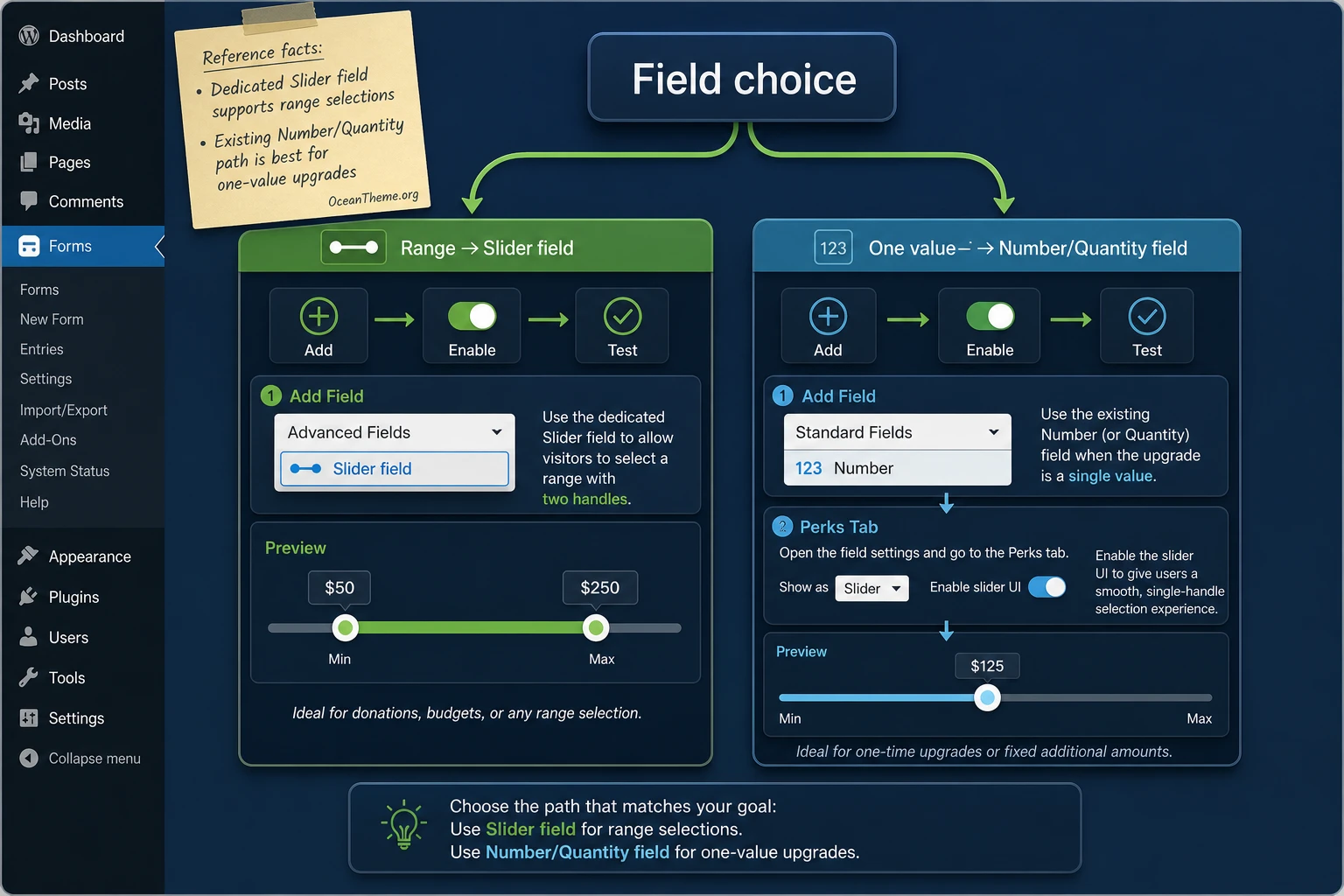

Two Ways to Add a Slider to a Form

The first major decision after installation is the field type. GP Sliders documentation shows two options: add a dedicated Slider field or enable a slider on a Number/Quantity field through the Perks tab. Both options preserve numeric logic, but they fit different use cases.

Dedicated Slider Field

A standalone Slider field is the better choice when you are building a new workflow or want to use features that do not fit neatly into a regular Number field. It supports Single and Range modes, numeric scales or custom choices with text labels, value display, step markers, and orientation. For budget ranges, labeled rating scales, questionnaires, and forms with two handles, this is the cleaner approach.

Example: a service request form asks for a project budget. The user should select not a single value, but a range from a minimum to a maximum budget. In that case, you need Range selection, and GP Sliders states the limitation clearly: ranges are not supported for sliders on Number fields because a Number field stores only one value. That means you should use a dedicated Slider field.

Slider on a Number or Quantity Field

This approach works well when the form is already live and you simply want to make an existing numeric field easier to use. For example, the field "Number of Attendees" may already be used in calculations, notifications, and exports. Instead of replacing the field, you can open its settings, go to the Perks tab, and enable the slider. The user will drag a handle, while the form logic continues receiving a number.

The limitation here is important: this type of slider selects only one value. If you need a two-handle range, switch to a dedicated Slider field. If you need custom labels instead of plain numbers, also check whether the Number field approach gives you enough flexibility. In some cases, it is faster to create a new Slider field and move the dependencies than to force an older field into becoming a universal tool.

How to Choose Without Long Testing Cycles

If you are unsure, start with a Slider field on a duplicate of the form. That lets you see the full feature set and the product's limitations. Once the logic is clear, you can decide whether to move it to an existing field or keep the dedicated slider.

Configuring the Scale: Mode, Minimum, Maximum, Step, and Precision

The slider scale should make sense before the user even touches the handle. GP Sliders gives you several related settings for that: slider mode, selection type, minimum, maximum, step, custom choices, decimal precision, and display labels. A mistake in any of these settings affects the UX immediately. The slider may move too abruptly, too slowly, miss the expected values, or store the number in a format you did not intend.

Numeric Mode for Numbers

Numeric mode works best for measurable values: quantity, amount, age, weight, score, percentage, area, or duration. The key settings here are Min, Max, and Step. Minimum and maximum define the boundaries, while the step defines the points the handle can snap to. GP Sliders documentation notes that negative values, decimal values, and fractional steps are supported. That is useful for cases like temperature, coefficients, interest rates, or ratings with a 0.5 step.

But a fractional step should be chosen deliberately. If you set 0.1 on a range from 0 to 100, the user gets a very large number of possible positions. The slider may feel smooth, but precise selection becomes harder. If the values feed into a calculation, also check the number format inside Gravity Forms. The official calculation documentation requires careful handling of decimal separators and recommends using a dot inside the formula.

How to Choose the Right Step

Choose the step based on the real decision being made, not on visual neatness:

• For the number of people, seats, or items, an integer step such as 1, 5, or 10 is usually appropriate.
• For budgets, larger intervals work better, such as several hundred or several thousand, if an exact amount is not necessary.
• For ratings, it is better to use 4 to 7 points so the user is not choosing between nearly identical options.
• If you want to simulate smooth motion, you can use a smaller step, but then you should always test usability on a mobile screen.

Bottom line: a good step should reflect real decision points. If the slider selects a service price, the step should match your pricing model. If it is used in a questionnaire, the step should match the meaning of the response levels.

Custom Choices for Labeled Scales

Custom Choices are useful when the user should see words, but the form needs to store a number. For example, the question "How satisfied are you with the consultation?" could use choices like 1 | Poor, 2 | Fair, 3 | Good, 4 | Excellent. The user sees labels, while calculations, conditional logic, or merge tags still receive the numeric layer.

This is a strong mode for surveys, NPS-style forms, qualification questionnaires, and feedback forms. It helps preserve interface clarity without losing machine-readable data. If a low rating should reveal a field like "Tell us what went wrong," conditional logic can watch the numeric value. If several answers are summed together, the calculation receives numbers instead of arbitrary text.

Single Value or Range

Selection Type determines how many values the field returns. Single returns one value. Range returns a start and an end. In GP Sliders, a range uses two handles. This is useful for budget, age, height, weight, score ranges, area, timelines, or any situation where the user does not know the exact number but understands the acceptable boundaries.

It is important to decide in advance how the range will be used later. If it is only needed for a manager reviewing the submission, checking the entry and notification is enough. If the start and end of the range are used in calculations, use the correct merge tags for the first and second parts of the value. GP Sliders documentation provides a separate index for the range end, so do not reuse the same value where the end of the range is required.

Tick Marks, Labels, Orientation, and Visual Formatting

Once the basic scale is in place, you move on to what the user actually sees. GP Sliders lets you enable step tick marks, tick labels, a value tooltip, a separate selected-value display, prefixes, suffixes, decimal precision, range separators, and either horizontal or vertical orientation. These settings should help the user make a choice, not demonstrate every available feature at once.

Tick Marks and Step Labels

Tick marks show where the slider can stop. Labels explain what each point means. They are especially helpful in Custom Choices, in ratings, and on scales with a small number of stops. If there are too many steps, labels can turn the form into visual noise. In that case, it is better to show only key labels or keep the marks without text.

The official gps_snaps filter lets you control snap points, tick marks, and labels. That is already a careful customization layer, not a basic setup step. For most forms, start with the built-in Show Tick Marks and Show Tick Labels toggles. Move to code only when the standard settings screen cannot provide the readability you need.

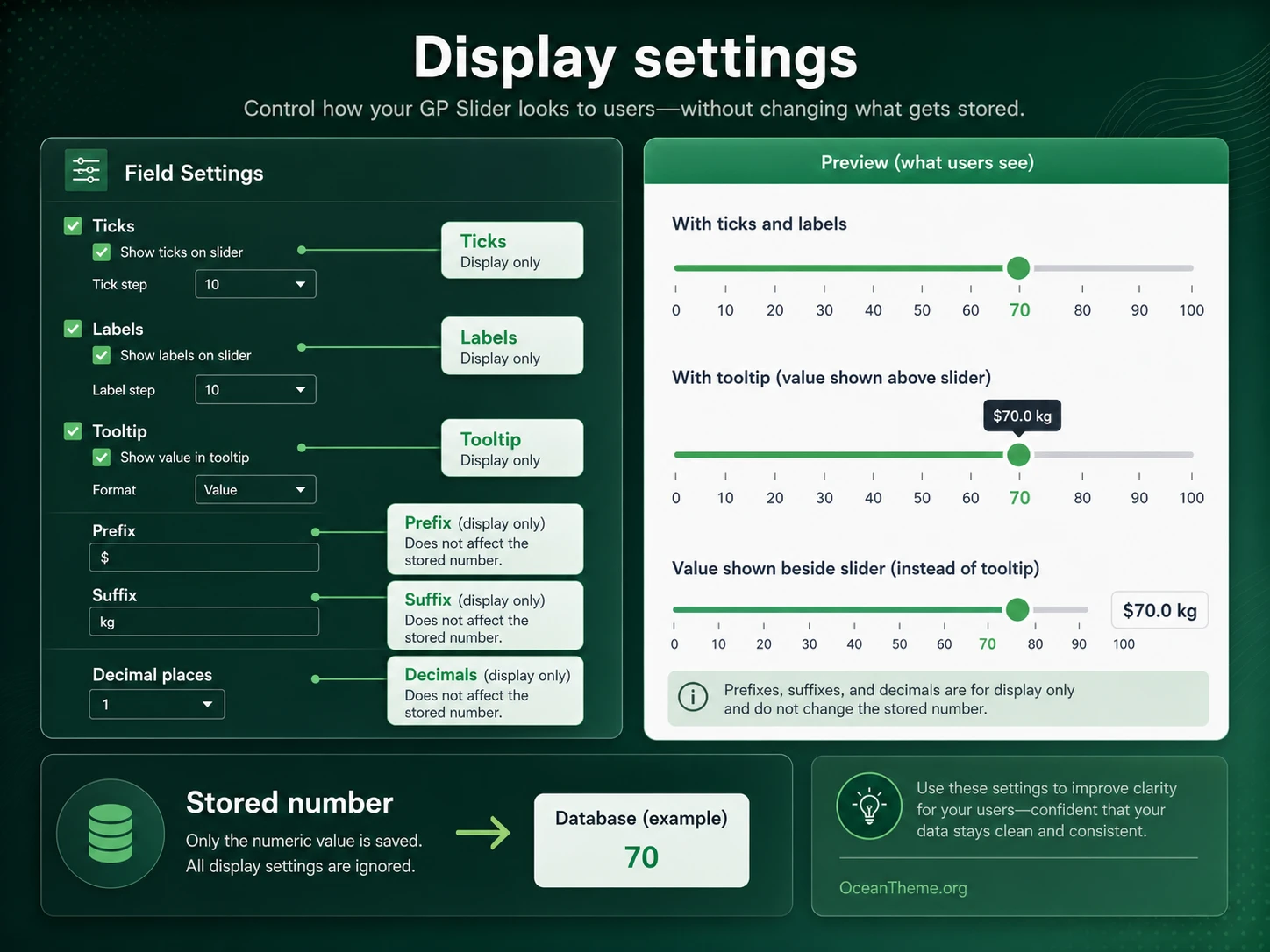

Showing the Value

The value can be shown next to the slider or as a tooltip on the handle. For numeric forms, calculators, and ranges, showing the current value is almost always helpful. Without it, the user sees movement but may not understand the exact number being selected. For labeled scales, the value can be shown more selectively. Sometimes the tick label alone is enough, and an extra number only becomes distracting.

GP Sliders documentation emphasizes an important nuance: prefixes, suffixes, decimal precision, and range separators are visual settings. They do not change the stored data. If you add a currency symbol or unit of measurement, the saved entry still stores a numeric value. That is good for calculations, but it requires attention in notifications. If the manager needs to see "kg" or "$", add that context in the email or confirmation text.

Horizontal vs. Vertical Orientation

A horizontal slider is the safe choice for most forms. It is familiar, fits naturally within a column, and is easier to read on mobile screens. Vertical orientation can make sense in more specialized layouts: a rating scale beside a visual block, a compact calculator in a sidebar, or a form with several vertical scales. But a vertical slider is much more sensitive to container height and theme styling.

If you choose the vertical option, test the form in its real embedding context, not just in the editor preview. Theme CSS, container width, button styles, and script optimization can change how it behaves. On small screens, a vertical element may take up too much space, so in some cases it is better to keep a horizontal slider and improve the labels instead.

How to Connect the Slider to Calculations, Conditional Logic, and Merge Tags

A slider becomes especially useful when its value does more than just get saved. Gravity Forms supports calculations in Number fields with calculations enabled and in Product fields of the Calculation type. GP Sliders passes numeric values, so those values can be used in formulas. That opens up scenarios like event pricing based on the number of seats, application scoring based on total points, recommended plans based on a budget range, or a feedback form that changes based on a low rating.

Field Order in Calculations

The official Gravity Forms calculation documentation stresses one rule: fields referenced by a formula must appear before the calculated field. If the slider sits below the total field, the result may be blank or incorrect. In practice, that means the form should be ordered like this: first the user selects the values, then the calculated result is displayed below.

For a simple calculator, the setup looks like this:

1. A Slider field or a Number field with a slider captures the user's value.
2. A Number field with Enable Calculation turned on is placed below it.
3. The formula uses the slider merge tag, such as {:1.1} * 29, where 1 is the field ID.
4. The user moves the slider and the total field recalculates.
5. After submission, the entry shows both the selected value and the total.

If you are using a range, remember that the start and end values have different indexes. GP Sliders documentation uses .1 for the start value and .2 for the end of the range. That allows you, for example, to store a minimum and maximum budget or calculate the difference between the two limits.

Conditional Logic Based on Slider Values

Gravity Forms Conditional Logic shows or hides fields based on the values of other fields. In that sense, a slider acts like any other source field. For example, if a rating is less than or equal to 2, you can show a field like "What should we improve?" If the selected budget is above a certain threshold, you can reveal a follow-up block with additional services. If the number of attendees exceeds a certain value, you can display a message about group pricing or a group format.

There are two limitations to keep in mind. First, conditional logic should not reference the field it controls. Second, fields hidden by conditional logic are ignored on submission, and their values do not participate in later processing. If a calculation depends on a field that may be hidden, test that submission path separately.

Merge Tags in Notifications and Confirmations

You can use merge tags in notifications and confirmations to display the selected value in an email, confirmation message, or redirect. For Single selection, you typically need the first index. For Range selection, use the start and end of the range separately. If the user sees a format like "500 to 5000" on the form but the email shows only one number, that is almost always a merge tag or notification-template issue.

Result check: after configuring a calculation, submit a test entry, open Entries, and review the selected value, the total field, the notification, and the confirmation. The form preview shows what happens on screen, but the entry shows what was actually saved.

Practical Example: A Request Form Pricing Calculator with a Quantity Slider

Let us walk through a concrete example. You need a form for workshop registration. The user chooses the number of seats with a slider, sees an estimated total, enters contact details, and submits the request. This is a classic GP Sliders use case: the value is constrained, the step is intuitive, the user sees the result immediately, and the administrator receives a clean numeric value.

Goal

Build a form where the user selects a number of seats from 1 to 50 in increments of 1, and sees a calculated total below based on a fixed per-seat price. We are not covering payment processing or configuring payments here. The goal is to collect a request and show an estimated total.

Preparation

You need active copies of Gravity Forms and GP Sliders, a test form, a page for embedding, and access to the form editor. Before configuring anything, decide whether the field will be new or existing. For this example, it is better to add a dedicated Slider field because it exposes the full set of options and makes the mechanics easier to explain.

Configuration Steps

1. Open the test form in Forms and add a Slider field from Advanced Fields.
2. Name the field, for example Number of Seats. On the public form, you can use any user-friendly label, but in this example it is important to keep the field ID visible.
3. Choose Numeric mode and Single selection.
4. Set Min = 1, Max = 50, Step = 1.
5. Enable value display next to the slider or as a tooltip on the handle. For seat quantity, the user should always see the exact number.
6. Add a Number field below the slider and enable Enable Calculation for it.
7. In the formula, use the slider value merge tag and multiply it by the seat price. If the slider field ID is 1, the formula could look like {:1.1} * 29.
8. Save the form and open the preview.

Validation

Move the handle through several values: minimum, middle, and maximum. The total should update each time. Then submit a test entry and open the saved entry. You should see both the selected quantity and the calculated number. If the administrator notification needs to include these values, test the email separately: add the relevant merge tags to the notification text or use the general submitted fields block.

A Common Detail That Breaks This Example

If the total does not change, first check field order. The slider must sit above the calculated field. Then verify the ID used in the merge tag. After duplicating a form, the field ID may differ from the example. Finally, check whether the slider is hidden by conditional logic at the time of submission. If the field is hidden, its value may not participate in saving or calculation.

For a form where seat count affects different offer options, you can add conditional logic. For example, if more than 10 seats are selected, show a field like "Do you need a separate invoice for the group?" But do not complicate the form before the basic calculation is working. First make the slider and total work, then add extra logic.

Use Cases Where GP Sliders Works Best

The same slider can solve very different problems, but the best settings depend on the use case. Below are several practical scenarios that help you avoid turning the product into a generic gimmick. Each one has its own best mode, step size, label strategy, and validation approach.

Rating Scale for Feedback

For a survey or quality form, use Custom Choices. The user sees labels like "Poor," "Fair," "Good," and "Excellent," while the form stores numeric values. Enable tick labels so the scale is easy to read. If low ratings require follow-up, add conditional logic: when the value is 1 or 2, show a comment field. After testing, check not only the saved entry but also how it appears in Entry Detail. If your team needs numbers instead of labels there, use the documented gps_use_choice_text filter carefully and only where necessary.

Budget Range in a Request Form

For budget selection, choose Range selection in a Slider field. That lets the user indicate a range instead of guessing an exact number. Add a currency prefix as a visual cue and a clear range separator, such as 500 to 5000 in the interface or a clear explanatory phrase in the form text. Remember: the prefix and separator are display settings, not part of the stored number. In a manager notification, it is better to write something like "Budget: from {start} to {end}" so the email does not look like two unrelated numbers.

Calculator with Quantity and Total

For quantities, Numeric mode with Single selection is usually enough. Show the current value, choose the step based on real business logic, and place the calculated field below the slider. If the user selects the number of seats, a step of 1 is intuitive. If the user selects print quantity or batch size, the step might be 50 or 100. Do not make the step smaller than the calculation actually needs, or the user will get a false sense of precision.

Donation or "Choose an Amount" Without Free Input

If you need a fixed amount scale, a slider can guide the choice effectively. For donation flows that require free-form amounts, it is better to look at related tools, such as Price Range for User Defined Price fields. GP Sliders works best when the values are predetermined and the selection should be visual. If the user must be able to enter any amount, a slider with tiny steps can become frustrating.

Scoring Questionnaire

For multiple point-based questions, use Custom Choices or Numeric mode and then sum the values in a separate calculation field. The important part is consistency across the scales. If one question is rated from 1 to 5 and another from 0 to 10, the total will be skewed. Document the logic in the field names or internal notes so the next form editor understands why those exact values were chosen.

Best Settings for Different Slider Types

There is no single universal "best" configuration for GP Sliders. A good setup depends on what the user is choosing, how precise that choice needs to be, and what the site does with the value after submission. That is why, before publishing a final form, it helps to review not just the interface fields, but the full chain of input -> product logic -> result -> validation -> error symptom -> fix. This approach helps you avoid confusing a visually polished field with a form that actually works well.

Quality or Satisfaction Rating

For rating forms, Custom Choices with short labels is usually the best fit. Do not create too many options. Five points are generally easier to understand than ten because users perceive meaningful levels, not mathematical precision. Enable tick labels, but do not overload the field with a number, text, tooltip, and separate display value all at once if they all repeat the same thing.

Result validation for this kind of form has two parts. First, look at the public-facing form: is it clear what each step means? Then open the saved entry: is the numeric layer preserved so it can be used for reporting, conditional logic, or scoring? If the support team needs the text version of the answer, check how it appears in Entry Detail. If numbers are needed instead of labels, consider gps_use_choice_text, but do not enable it globally without a reason.

Budget Range

For a budget range, use a Slider field with Range selection. This field has two handles, and both should be clear to the user. Add visible value output and a readable range separator. If the budget is expressed in larger intervals, do not use a tiny step. Values like 500, 1000, and 1500 are easier to read than a long scale with dozens of nearly identical options.

In the manager notification, write the range as a human-readable phrase. For example: "Estimated budget: from the starting value to the ending value." Do not assume a single generic merge tag will always be clear to every email recipient. For Range selection, test the start and end separately. If only one boundary appears in the entry, the problem is not slider design. It is a merge tag or notification-template issue.

Pricing Calculator

For calculators, formula predictability matters most. Choose a step that matches real sales units. If a service is sold in 5-hour packages, a step of 1 may create values that the manager will later round manually anyway. If a product is sold by the piece, a step of 1 is perfectly fine. If the total is shown to the user, the result field must sit below the slider and must not be hidden by conditional logic that depends on that same result.

After saving the form, test the minimum, maximum, and several mid-range values. If the formula works in the middle of the scale but breaks at the boundaries, the problem is often unrealistic expectations around the step size or a condition that does not cover edge values. For commercial forms, also test the admin email. The total shown on the page and the total sent in the notification should match.

Slider on an Existing Number Field

When you enable a slider on an older Number field, do not treat the task as complete just because the preview looks good. That field may already be used in calculations, exports, or integrations. Save a copy of the original form, enable the slider, submit a test entry, and compare the data. If an external system expects a plain numeric field, it will usually continue receiving a number, but that should still be confirmed on your own site.

If users start selecting the wrong values after the slider is enabled, the problem may not be technical. It may be editorial. The scale may not explain the boundaries well, the current value may not be visible, or the step may not fit the real task. In cases like that, fix the labels, visible value, and step first instead of immediately hunting for a plugin conflict.

How to Validate the Result Before Publishing a Live Form

Testing GP Sliders should go beyond "the handle moves." The slider is an input interface, but the form continues to live beyond that point: the value is saved, used in conditional logic, inserted into emails, displayed in confirmations, exported, or passed to an integration. If you only test the public-facing form, you may miss a data problem. If you only check the entry, you may miss a confusing user experience.

Checklist for a Single Form

1. Open the form in preview and verify that the Slider field or Number field with a slider displays without errors.
2. Move the handle to the minimum, maximum, and one value in between. For Range selection, test both handles.
3. If tick marks and labels are enabled, make sure they remain readable at your page width.
4. If the value feeds into a calculation, verify that the total field changes with each movement.
5. If conditional logic is used, test every branch: low value, high value, and any empty or default state if applicable.
6. Submit a test entry and open Entries.
7. Check the notification, confirmation, and export if they are part of the workflow.

This sequence may look long, but it takes less time than cleaning up incorrect submissions after launch. It is especially important to test edge values. Problems often appear not in the middle of the scale, but at the first and last step: the formula does not cover the minimum, conditional logic fails at the boundary, the label does not fit, or the result field is placed above the source value.

What Counts as a Successful Result

The form is ready to publish when the user understands the scale without a manager having to explain it, the selected value is saved predictably, the calculations match the expected numbers, conditional blocks appear only in the right cases, and the admin email shows the data in a clear format. If even one of these layers has not been checked, the slider should not be considered fully configured yet.

For internal forms, you can be a little more relaxed about presentation, but not about data. For public forms, the opposite is true: even a technically correct setup is weak if the visitor does not understand what to choose. That is why good GP Sliders configuration always combines two goals: a readable interface and verifiable data.

When It Is Better to Roll the Change Back

Roll the change back if users start submitting incorrect values more often after the slider is enabled, if the mobile version becomes worse, if a calculation starts depending on hidden fields, or if the team can no longer understand the saved entries. Rolling back does not mean the product failed. In many cases, it is enough to go back to a form copy, increase the step size, shorten the labels, remove vertical orientation, or replace the slider with a regular Number field where precise manual input is more appropriate.

A simple decision rule works well here: the slider should reduce cognitive load. If the scale requires a long explanation next to the field, the scale itself may be the wrong choice. In that case, it is better to change the range, labels, or field type before publishing than to compensate for a weak interaction pattern with instructions.

Embedding the Form on a Page and Checking the Public Result

In the form editor, the slider may look correct, but the decisive test happens on the actual page. Gravity Forms supports several ways to embed a form: the Embed Form button, an editor block, the Classic Editor, a shortcode, or theme code. For most sites, the built-in block or embed button is the better option because it reduces the risk of parameter errors.

After embedding the form on a page, test three layers:

• Visual layer. The slider fits inside the container, labels do not overlap, the handle is visible, and vertical orientation does not break the block height.
• Behavior layer. The handle moves, the value updates, the calculation changes, and conditional logic responds.
• Data layer. After submission, the entry contains the correct values, the notification receives the right merge tags, and the confirmation displays the expected text.

If the page uses caching, minification, or deferred script loading, test the form in a clean browser and while logged out. Some issues appear only to visitors, not administrators. If the form is embedded in a modal, tab, accordion, or complex page builder layout, check that the slider initializes after the container becomes visible. Otherwise, it may calculate the wrong width.

Mobile Testing

On mobile, the slider should be wide enough to use comfortably, and the steps should not require overly precise finger movement. If the range is wide and the step is small, it will be difficult for the user to pick an exact value by touch. For mobile forms, it is usually better to reduce the number of points, increase the spacing between important values, or provide a clear display of the current selection.

Do not test only one phone width. A narrow theme column, a sidebar widget, a popup, and a two-column page can all behave differently. If a vertical slider looks impressive on desktop but breaks the mobile layout, do not hesitate to switch back to horizontal. Practical usability matters more than unusual orientation.

Checking Entries and Exports

GP Sliders stores data in a way that remains usable inside Gravity Forms. But exports, CRMs, and custom reports may expect a specific format. After a test submission, export the entry or inspect how the value appears in your integration. If a range stores two parts, make sure the external system receives both. If Custom Choices displays text but your report needs numeric values, go back to the settings and documented filters.

Safe Customization: When Settings Are Enough and When You Need a Hook

Most GP Sliders tasks can be solved through settings alone. Code is rarely necessary, and usually only when you need to change how tick labels are displayed, hide some labels, control text in entry details, or fine-tune behavior for a specific form. The important thing is not to invent internal classes or edit plugin files directly. Gravity Wiz documents two useful filters: gps_snaps and gps_use_choice_text. Use them through a child theme or Code Snippets, not by editing WordPress core, Gravity Forms, or the plugin itself.

Hide Intermediate Labels While Keeping Snap Points

Imagine a scale from 0 to 100 with a step of 10. You need all the tick marks, but labels under every mark make the field too crowded. The official gps_snaps filter example shows the idea: you can keep the first and last labels and hide the ones in between. Below is an adapted version for a specific form and field. Replace 12 with your form ID and 5 with your field ID.

add_filter( 'gps_snaps_12_5', function( $snaps, $config, $field ) {
    $count = count( $snaps );

    foreach ( $snaps as $index => &$snap ) {
        if ( $index !== 0 && $index !== $count - 1 ) {
            $snap['label'] = '';
        }
    }

    return $snaps;
}, 10, 3 );

Validation after adding the snippet is simple: open the form and confirm that the handle still snaps to every step, but the visible labels no longer overload the scale. Then submit a test entry and make sure the saved value has not changed. If anything goes wrong, disable the snippet in Code Snippets or remove the filter from the child theme.

When Not to Add Code

Do not add a snippet if the goal can be achieved with built-in toggles. Options like Show Tick Marks, Show Tick Labels, Show Value Tooltip, prefix, suffix, and range separator already cover a lot of use cases. Code is justified only when you need behavior that the interface does not provide and when you can verify the result on a test form.

It is also not a good idea to add CSS from memory without confirming the actual classes used in your theme. Visual slider tweaks depend on the markup, the theme, and the product version. A safer path is to first configure display options in GP Sliders, then inspect the real output in the browser, and only after that add targeted CSS in a child theme.

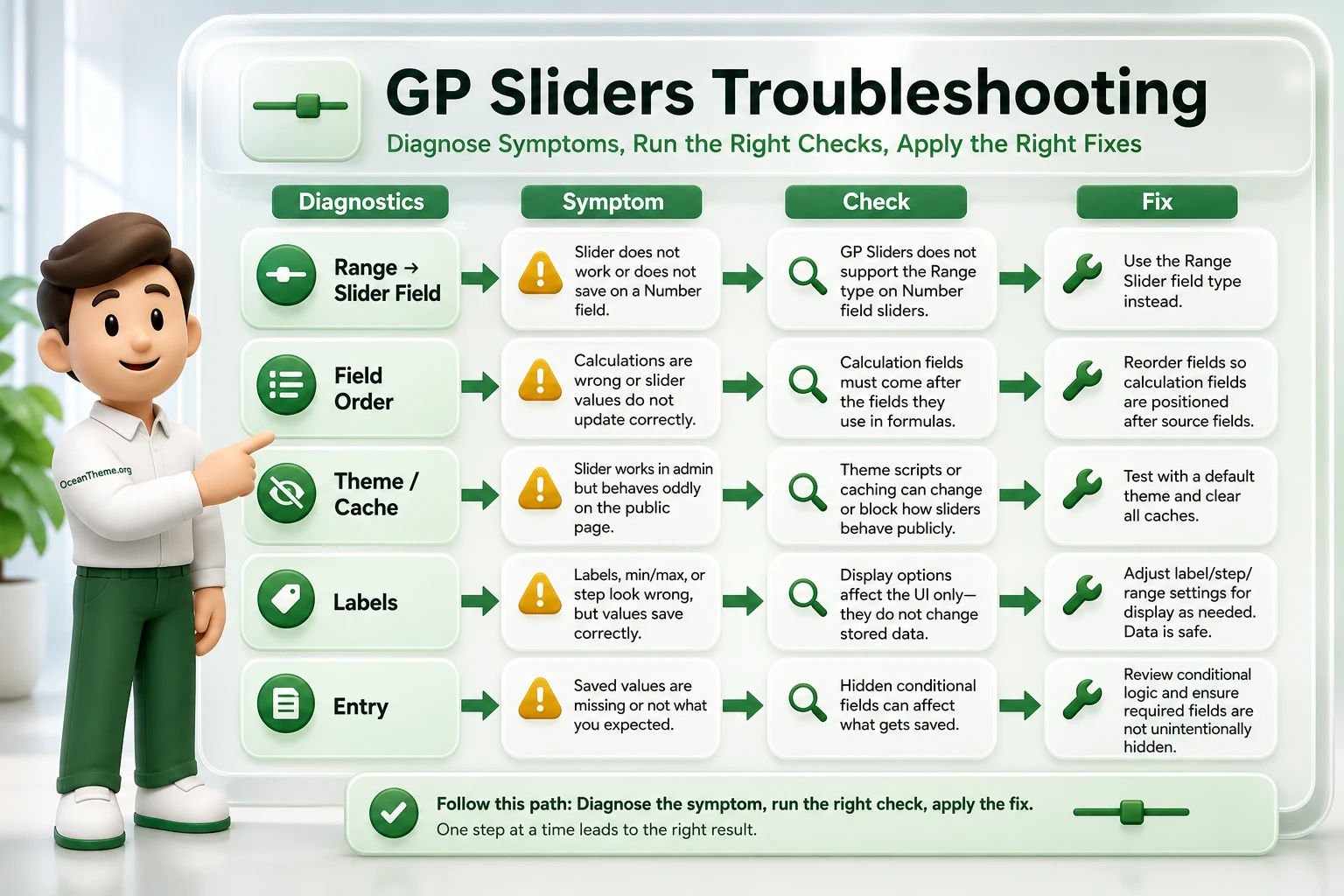

Why the Slider May Behave Incorrectly and How to Diagnose It

Slider problems rarely come from a single cause. They can be tied to product installation, field configuration, field order, conditional logic, the theme, caching, script optimization, or user expectations. The best approach is to troubleshoot from simple to complex: first test the field in a clean form preview, then on the actual page, then in the saved entry, the email, and any dependencies.

The Slider Field Does Not Appear in the Form Editor

Symptom: there is no Slider field in Advanced Fields, and the Perks tab on a Number field does not show the expected options.

Possible cause: the product is not installed, not activated, not available through Spellbook, or the user does not have sufficient permissions. If the site recently moved from the older Gravity Perks setup to Spellbook, part of the product management may have shifted into the new interface.

What to check: open the plugins list, then the Spellbook interface under Forms. Confirm that Gravity Forms is active, Spellbook is active, and GP Sliders is installed. Also check the user role: installation and activation require administrator permissions.

How to fix it: activate the product through the standard method. If the Spellbook interface does not load, the documentation recommends checking permalinks and testing for a theme or plugin conflict. Do not try to fix it by editing product files.

The Handle Moves, but the Value Does Not Feed Into the Calculation

Symptom: the slider is visible and the value changes, but the total field stays blank or shows an outdated result.

Possible cause: the calculated field is placed above the slider, the formula uses the wrong field ID, the field is hidden by conditional logic, or the wrong merge tag index is used for a range.

What to check: open the field settings and review the slider ID and the formula. Confirm that the slider is placed above the calculated field. For a range, make sure the start and end use different indexes.

How to fix it: reorder the fields, update the merge tag using the Gravity Forms selector, save the form, and submit a test entry. If the field is hidden by conditional logic, revisit the scenario because a hidden field may not provide a value for later processing.

You Cannot Enable a Range on a Number Field

Symptom: you want two handles, but the existing Number field only gives you one value.

Possible cause: this is a known limitation: ranges are not supported on sliders attached to Number fields because a Number field captures only one value.

What to check: decide whether you truly need a range or whether a single value is enough. If the manager needs to see both a "from" and a "to" value, you need actual Range selection.

How to fix it: add a dedicated Slider field and move the dependencies over. After that, test calculations, notifications, and exports.

Tick Marks and Labels Look Overcrowded

Symptom: there are too many labels under the slider, they overlap each other, or they break the mobile layout.

Possible cause: the step is too small, the labels are too long, or every visual option has been turned on at once.

What to check: the number of points on the scale, label length, container width, and mobile view. On a scale with dozens of steps, you do not need to show every label.

How to fix it: increase the step, shorten the labels, turn off some visual options, or use gps_snaps to hide intermediate labels. The rollback path is simple: return to the standard settings and disable the snippet.

The Slider Looks Different on the Site Than It Does in Preview

Symptom: everything looks fine in the editor, but on the page the handle is offset, the scale is too narrow, the vertical version stretches the block, or the value does not update.

Possible cause: the theme, a page builder, caching, JavaScript minification, deferred script loading, or a hidden container where the form initializes before it becomes visible.

What to check: open the form on a clean standalone page with a basic template, temporarily disable script optimization for that page, and compare the result. If the problem disappears, investigate the theme or optimization layer.

How to fix it: exclude Gravity Forms and GP Sliders scripts from aggressive optimization, simplify the container, and test the form outside a modal. If the problem is tied to a specific theme, run a conflict test on a site copy or in a safe environment.

The Saved Entry Does Not Match What the User Saw

Symptom: the user sees a label or formatted value, but the saved entry stores only a raw number without the prefix, suffix, or text label.

Possible cause: GP Sliders separates visual presentation from stored data. Prefixes, suffixes, decimal precision, and range separators are not supposed to change the saved value.

What to check: open the entry and the notification. Decide what your team actually needs: a clean number for processing, or more human-readable text for the operator.

How to fix it: add explanatory text around merge tags in emails and confirmations. If Custom Choices should display numbers instead of labels in Entry List and Entry Detail, review the gps_use_choice_text filter and apply it only where needed.

When Gravity Forms GP Sliders Is the Right Choice

Gravity Forms GP Sliders is worth using when numeric input in a form should be visual, constrained, and easy to understand at a glance. The product works especially well for ranges, rating scales, calculators, scoring questionnaires, and forms where the user selects a value from a clear scale while the site continues working with the result as a number. It does not replace every type of survey, it does not solve complex pricing logic on its own, and it should not be used where precise manual input is simply more practical.

Before publishing, follow a short final path: configure the field, test the preview, embed the form on a test page, submit an entry, open the saved entry, check the notification, and only then move the configuration into a live workflow. If the form already plays a role in sales, lead capture, or CRM automation, test on a form copy and document which fields and merge tags were changed.

If the product fits your use case after testing, you can download Gravity Forms GP Sliders and start configuring it on a test form. Begin with one clear scenario, then add value display, calculations, conditional logic, and safe customizations step by step. That way, the slider becomes not a decorative element, but a working selection interface that helps the user submit accurate data.
