CodeCanyon Reading Progress Bar - WordPress Plugin

How to Configure CodeCanyon Reading Progress Bar in WordPress

CodeCanyon Reading Progress Bar is a lightweight WordPress plugin by 42Theme that displays a page progress indicator. On a long article, visitors see more than a decorative bar: they get a clear answer to a practical question - how much they have already read and how far they are from the end. This guide is not a marketing overview. It walks through a working setup: preparing the site, installing the ZIP archive, choosing where the bar appears, adjusting its appearance, limiting it to the article content, testing it on a real post, and diagnosing conflicts.

What makes this plugin useful is that it can measure more than the height of the entire document. The Custom Selector option lets you connect the bar to a specific container. That makes it useful for magazines, knowledge bases, and landing pages that contain a long article within a more complex page, where the header, table of contents, recommendations, and footer should not artificially extend the reading path. The settings also include page assignments, top or bottom placement, offset, height, color, gradient, shadow, and several built-in appearance styles.

It is important to separate two things in this guide. The indicator does not create content, measure article quality, or guarantee better engagement metrics. It simply gives visitors a visual reference point while they scroll. Its value depends not on how bright the bar is, but on how accurately it follows the readable content, whether it avoids conflicts with sticky navigation, and whether it stays out of the way on short pages.

All steps below assume that you already have access to the plugin and a standard WordPress admin dashboard. Before changing a live site, it is sensible to have a recent backup and a long test post ready. That makes it easier to see the relationship between a setting, scrolling behavior, and the final outcome instead of guessing why the bar behaves differently on the homepage, in the editor preview, or for an administrator.

What a Reading Progress Bar Solves and Where It Actually Helps

Long-form content is rarely read from top to bottom without interruptions. Readers scan subheadings, return to a table, open a link, switch tabs, and then come back. Without a point of reference in the interface, page length can feel uncertain. A horizontal bar turns scrolling into a simple continuous state: empty at the beginning, partly filled in the middle, and complete near the end. For a knowledge base, tutorial, in-depth review, service policy, or documentation page, that can be enough to help readers retain their sense of place.

CodeCanyon Reading Progress Bar is specifically a scroll indicator. According to 42Theme's official description, it can appear at the top or bottom of a page, use a solid color or gradient fill, change height, and be assigned to selected pages. The documentation also confirms a mode that measures a selected area through a CSS selector. Its core workflow can therefore be described as follows: the browser loads a page, the visitor scrolls through the reading area, the plugin compares the scroll position with the length of the target document or container, and then updates the bar fill.

This approach works best when reading is the primary purpose of the page. Examples include detailed product instructions, articles with several thousand words, corporate knowledge bases, legal policies, editorial long-form articles, training lessons, recipes with extensive explanations, and help pages. On these pages, the bar does not explain the content for the author, but it can reduce the sense of endless scrolling. On a short news post, a product page with very little copy, a contact form, or a post archive, it usually adds little clarity and may become an unnecessary moving interface element.

It helps to choose one measurable goal in advance. For example: "On selected knowledge base articles, visitors should be able to see how far they are from the FAQ section." That is more useful than a vague desire to "make the site feel more modern." It immediately suggests the setup criteria: the indicator appears only on the right content type, its length follows the article body, its thickness does not compete with the header, and it reaches full completion before recommendations and the footer.

Scroll Progress, Reading Time, and Reading Completion Are Different Things

The product name includes the words Reading Time and Reading Progress, but the settings documentation describes the progress bar itself in detail: style, color, shadow, height, placement, offset, and the content-area CSS selector. Do not promise visitors an accurate minute estimate unless your installed version and its interface include a separate, verifiable reading-time setting. Likewise, a filled bar is not proof that someone has read every sentence. It reflects scroll position, not an attention analytics report.

This distinction also prevents poor implementation decisions. If the editorial goal is to show estimated reading duration beside the title, you need a reading-time feature, not just a bar. If the goal is to help people orient themselves within a single long content block, a progress bar is the better fit. A site owner may use both when the relevant features are confirmed, but this guide does not assign functions to CodeCanyon Reading Progress Bar that cannot be verified in its current settings panel.

Who This Plugin Is For and When Not to Add Another Interface Layer

This plugin is particularly appropriate for an editor who publishes sequential content and wants to give readers a calm, unobtrusive point of reference. That could be an editorial team, instructor, support department, attorney with a help section, marketer publishing long case studies, or blog owner. These sites share one characteristic: visitors spend noticeably more time in the main content than they do looking at navigation or banners. In that case, a thin bar along the top or bottom edge requires no extra action and does not interrupt reading.

It can also work well on a mixed site architecture when page assignments are used. An online store does not need progress on category pages, the cart, account pages, or utility screens. A detailed buying guide, editorial journal article, or help-center post may be different. The official 42Theme documentation confirms that assignments can limit where the plugin appears, while empty assignments display it on all pages. A safe starting point is therefore not global activation, but an explicit list of long-form materials.

Consider postponing installation if the site does not have a stable single-post template, uses a complex smooth-scrolling system, already has several fixed header panels, or relies on a theme that substantially redraws the page after it loads. That does not mean integration is impossible. It simply means you should test on a copy of the page first. The bar itself is small, but its placement at the edge of the viewport makes any conflict with layers, spacing, or caching highly visible.

You should also avoid using the indicator as a substitute for improving the article itself. If readers cannot understand the article structure, are overwhelmed by popups, or cannot find a table of contents, a colored line will not fix navigation. Improve headings, paragraphs, anchor links, and the rhythm of the content first. The progress bar remains an enhancement for a page that is already readable.

A Quick Decision Before You Implement It

What to Check Before Installation: Content, Template, Cache, and Scope

Preparation matters more here than the ZIP archive itself. First, choose one published or draft post that genuinely contains a long main body. A post with several H2 headings, images, a list, and a final section works best. Open it in a standard browser window, not only in the editor preview. Identify where reading logically begins and ends. Some templates include an author block, links to adjacent posts, a comments form, and a large footer. If all of these are included in the calculation, the bar may keep progressing long after the meaningful article content has ended.

Next, inspect the top and bottom edges of the viewport. A sticky header, cookie-consent banner, support chat, Back to Top button, promotional strip, and the WordPress admin bar may occupy the same edge as the indicator. There is no need to change CSS or raise z-index blindly in advance. Make a list of possible overlaps and decide where the bar has room. If the top is already occupied, begin with bottom placement. If the bottom edge is occupied by a floating notification, use the top and then test the offset.

The third check is caching. On sites with a caching plugin, server-side cache, or CDN, visitors may see an older HTML page and previous CSS or JavaScript assets after you save settings. That does not necessarily mean Reading Progress Bar is broken. First make sure you are comparing the same environment: clear the cache using the site's intended tool, open the page in a private window, and refresh it while clearing the browser cache. Only then should you conclude that a setting is not working. The product documentation states that it works with native JavaScript without jQuery, but that does not remove the general need to verify that visitors are receiving a current version of the page.

The fourth check is compatibility. The CodeCanyon listing says the plugin has been tested with several widely used tools, including Yoast SEO, Contact Form 7, W3 Total Cache, WooCommerce, and popular page builders. That is a useful starting point, not a guarantee for every version of a theme, child theme, optimization tool, or custom script. The changelog also includes a Custom Scrollbar compatibility fix. If the site uses another scrolling script, infinite loading, navigation without a full reload, or a nonstandard container, test the actual behavior on your own page.

Finally, define a safe rollback path. The simplest approach is to note the original setting values, take a screenshot of the settings page, and know how to temporarily deactivate the plugin from the Plugins page. Do not edit plugin files or add random snippets to the WordPress core. If the test does not work out, rollback should be one clear action: remove the assignment, disable the plugin, or delete only the CSS you added in the theme's standard custom CSS field.

Minimum Test Setup

• A long test post where the main text can be clearly separated from the header, sidebar, and footer.
• Administrator access that allows you to open Plugins, install an archive, and save settings.
• An understanding of which cache layer the site uses and how to clear it through the intended method after changes.
• A list of fixed elements at the top and bottom edges of the viewport.
• A separate browser window without authentication to check what a regular visitor will see.

A practical starting point: enable the indicator on one long post or a test category first. A global assignment before the first test makes it harder to identify the cause of a problem: you cannot tell whether the issue is the feature, theme, caching, or an unsuitable page.

Installing the ZIP Archive and Running the First Verification

A CodeCanyon plugin usually arrives as a delivery package that may include a separate ZIP file for the plugin itself as well as documentation. Do not upload the outer package if it contains the actual plugin archive inside. The 42Theme Reading Progress documentation refers to a file such as t42-reading-progress-v.x.x.x.zip; the exact suffix depends on the version you received. The point is simple: WordPress must find the plugin structure and header in the archive, not a folder containing a license, documentation, and several nested files.

1. Save the delivered archive locally and extract it only to locate the internal plugin ZIP if the package contains multiple files.
2. In the WordPress admin dashboard, open Plugins and then Add New.
3. Click Upload Plugin, select the plugin ZIP itself, and confirm by clicking Install Now.
4. After the successful installation message appears, click Activate Plugin or activate it from the Plugins page.
5. Open the settings page added by the plugin, but do not change every field at once. First locate the display and assignment settings.

This process follows both the 42Theme documentation and the standard WordPress mechanism for uploading ZIP plugins. Official WordPress documentation also notes that the Upload Plugin form accepts a ZIP archive and requires activation after installation. Manual SFTP upload is a fallback for experienced users facing server limitations, but it should not be your first option: it makes permissions troubleshooting more difficult and can easily lead to confusion between extracted folders.

After activation, do not judge the result from the plugin list. Open the prepared long page as a guest. If the indicator is enabled for that page in the settings, its thin bar should appear along the selected edge of the viewport. If it does not, that is not yet a reason to change the height, gradient, or code. Check the assignment first, then the cache, and only then investigate layer conflicts. This order matters: an appearance setting cannot fix a case where the plugin should not be displayed on the selected page in the first place.

How to Tell an Installation Error From a Normal Configuration Issue

An installation issue appears in the admin area: WordPress rejects the archive, reports an invalid package, does not show the plugin in the list, or does not allow activation. In that case, verify that you uploaded the internal ZIP, that there is enough available hosting space, and that no security solution is blocking archive uploads. Standard WordPress documentation also recommends reviewing information on the plugins page for compatibility and update issues, and keeping a backup before replacing files.

A configuration issue looks different: the plugin is active, but the bar is missing only on some pages, appears in the wrong location, continues after the article ends, or is covered by a theme element. Do not reinstall the archive in that case. Open the relevant settings section and test one variable at a time. If you cannot explain which setting changed the visible outcome, revert that setting and return to the last state you understood.

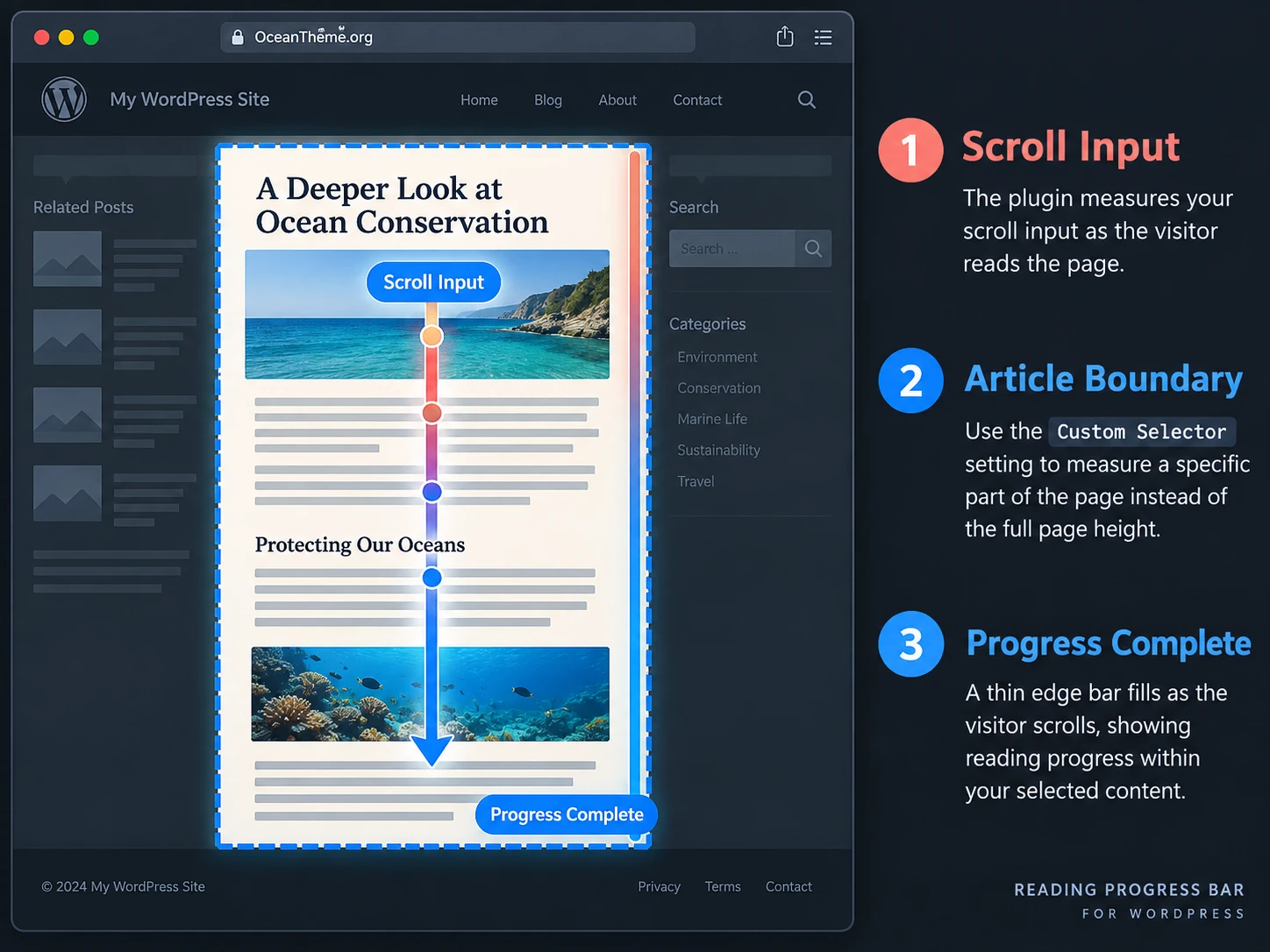

How Progress Works: From Window Scrolling to a Visible Bar

It is more useful to think of the plugin as a small system with five links rather than as a decorative line. The visitor's scrolling is the input. Next, the measurement area is selected: the entire document by default, or an element defined through Custom Selector. The settings then determine where to draw the output, how thick the line should be, what color fills it, and whether it needs a shadow. Finally, the visitor sees the fill change along the edge of the viewport. The most important part is not the animation itself, but the agreement between the measured area and the actual content.

In full-document mode, the calculation follows the entire available scroll path. It is simple and works for a standard post where nearly everything between the header and footer belongs to the content. In selected-container mode, the plugin receives a valid CSS selector. The documentation explicitly says this lets you show progress for a specific part of the page rather than its full height. For example, if a template consistently wraps the text in article or .entry-content, the bar can reflect movement through that block specifically. You cannot infer the correct selector from the theme name alone: you must find it in the markup of the published page itself.

The bar changes with scrolling, so this tool is sensitive to page dynamics. Lazy-loaded images, expandable blocks, comment forms, consent banners, and infinite-loading scripts may change the available height after the initial render. That does not mean the plugin is unsuitable. It means you should test it under real conditions: with the table of contents open, images loaded, a typical viewport width, and the extensions that visitors actually use.

Why Page Assignments Are Part of the Mechanism, Not a Secondary Checkbox

In the 42Theme documentation, the Assignments section is intended to limit where the plugin appears. This affects the outcome more than the shade of a gradient. A site may include utility pages, short posts, archives, a checkout page, search results, and an account screen. Showing the indicator across all of them creates a visual rule that has nothing to do with reading. Visitors may reasonably wonder why a two-field form has a progress bar while an article does not, or why the bar behaves differently there.

Start with a positive selection: decide where the bar should appear. If the assignments interface lets you work with WordPress entities, select single posts or the relevant pages, then review exclusions. The documentation states that no configured assignments result in display on all pages. After testing, do not leave the field in an undefined state if your goal is limited to articles. Record the intended setup in a working note: enabled on individual knowledge base posts, disabled on catalogs and functional screens.

Settings Map: Position, Height, Style, Color, Gradient, and Shadow

Once the initial verification is complete, you can move on to appearance. The Reading Progress documentation lists the Default, Rounded, Plastic, Animated, Shine, and Glow styles. It also describes solid-color or gradient selection, shadow, pixel height, Top or Bottom placement, and Offset. Do not aim for the most noticeable style. The indicator remains in peripheral vision, so its best design is often one readers barely notice but can immediately find when they want to understand their progress through the article.

Choose the Viewport Edge Before Choosing a Color

Position controls top or bottom placement. The top is natural for magazines and documentation when there is no large sticky panel above the content. The bottom edge may be preferable when the top is occupied by navigation, a notification bar, or the admin bar. Neither placement is universally better. Open the test article at a width typical for your audience, scroll slowly, and assess two questions: is the line hidden behind another element, and can it be mistaken for a header boundary?

After choosing the edge, adjust Offset. The documentation describes it as the distance that moves the progress bar upward or downward depending on the selected placement. It is a good tool for fine-tuning around one fixed panel. It is not meant to compensate for a chaotic layout with three overlapping widgets. If you need an extreme value, stop and identify which fixed element occupies that edge of the viewport. It may make more sense for your site to switch Position or disable the indicator on pages with a special header.

Height: Noticeable Without Turning It Into a Banner

The Height value is set in pixels. A low bar feels like a discreet guide, while a tall one starts competing with content and the theme's visual boundaries. Begin with a moderate value, save the settings, scroll normally, and check the page at several browser zoom levels. If the line is visible only when actively searching for it, increase the height by one small step. If it resembles an advertising strip or presses against image edges, reduce it.

Do not try to determine a good thickness from a screenshot alone. A real visitor sees the bar in motion, at different pixel densities, and alongside real navigation. Testing at a narrow viewport width matters even when the source claims mobile support: a specific theme may have its own fixed header that appears only on a small screen. The goal is straightforward: the progress indicator remains distinguishable without taking space away from text or obscuring controls.

Color and Gradient Should Follow the Site's Design System

Color allows either a solid color or a gradient. Choose one primary accent from the site's existing palette: the active-link color, call-to-action button color, or a small navigation marker. This makes the indicator feel like part of the interface rather than an unrelated addition. If the theme already uses rich gradients, you can repeat their direction and two related shades. If the design is restrained and typography-focused, a solid color will almost always look cleaner.

A gradient should not imply a false meaning. Do not use red at the beginning and green at the end unless that genuinely represents an error-to-success state. A reading bar is not a system-health indicator. It only needs to show one continuous path. Before saving, check contrast against both light and dark background areas, especially if the line sits over a header image. When backgrounds vary between pages, it is better to choose a placement with a consistent underlying surface or test every assignment individually.

Style and Shadow: Character Without False Importance

A built-in style can save time on manual styling. However, Animated, Shine, or Glow should be enabled only after you check the rhythm of the page. Moving shine can distract on serious documentation, while a soft shadow on a dark header can improve separation from the background. The Shadow option is useful for precisely that purpose - making the edge distinguishable, not creating a second decorative line.

A good setup sequence is: assignment, position, offset, height, base color, then style and shadow. Save changes after each meaningful group and check the guest view. When every field is changed at once, it becomes impossible to determine what caused a conflict. A stable working configuration is more valuable than an eye-catching configuration whose origin cannot be explained.

Custom Selector: Measure the Article Instead of Everything Around It

Custom Selector is the most concrete feature of CodeCanyon Reading Progress Bar. The official documentation says that you can enter a valid CSS selector in this field to display the progress bar for a specific part of the page rather than the full page height; leaving the field empty returns measurement to the full page. This is useful for sites where the article is visually and structurally separated from the surrounding template. For example, the top of the page may contain a cover, followed by a table of contents, then the main article, and after it an author block, recommendations, comments, and footer.

Without a selected area, the fill accounts for the entire available path. A reader may reach the article conclusion while the line still shows a nominal 70 percent because there are long recommendations after the article. With the correctly selected container, the indicator becomes more honest relative to its purpose: it advances through the post body and reaches the end near the final paragraph. This is not a universal setting for every theme. In some templates the main container is article; in others it may be .entry-content, .post-content, or another class. Choose not the prettiest name, but the element that actually contains the text.

How to Find a Selector Safely

1. Open the published test article in a browser and enable the built-in developer tools.
2. Select a paragraph from the middle of the content, then move up the markup tree to the container that covers all of the text you want.
3. Make sure the selected container does not include the footer, "related posts" section, or comments if they should not be part of the reading path.
4. Record a simple, stable selector. A unique class or semantic container is preferable to a long chain dependent on the accidental order of blocks.
5. Enter it in Custom Selector, save the settings, clear the site's intended cache, and test the beginning, middle, and end of the article.

You can start with article as a candidate only if the inspector confirms that the main text is entirely contained in one semantic article area. If the page contains several article elements, such as recommendation cards, that choice will not be precise enough. The .entry-content selector is suitable only when it is confirmed by your theme's markup. Do not copy that example from someone else's guide and assume it is required for every WordPress installation.

Testing the Boundary States of a Selected Container

After saving, run four checks rather than one. At the start of the article, the bar should be at or close to its starting state. Around the middle of the main text, it should be roughly half filled. At the end of the final meaningful section, it should reach its final state or come very close. Then scroll through recommendations and the footer. If you intentionally excluded them from the container, further movement should not make visitors feel as though "the article is not over yet."

Also check expandable blocks, tabs, lazy-loaded images, and the table of contents if they are inside the selected container. Opening them changes the article's geometry. Your goal is not mathematical perfection in an artificial screenshot, but confidence that the indicator remains understandable during a normal reading path. If opening a large FAQ makes the fill noticeably jump, decide editorially whether that FAQ should count as part of the main article. It may belong inside the container because users genuinely read it, or the container may simply be too broad.

When It Is Better to Leave the Field Empty

An empty Custom Selector is not an error or a sign of incomplete configuration. It is appropriate for a standard page where the entire scroll path is genuinely one reading journey. Do not enter a selector simply for the sake of having one. If you cannot reliably identify the container, if the template changes markup across post types, or if the selected element is sometimes shorter and sometimes longer than the article, it is safer to start with the full document and limit the plugin through assignments. You can return to precise targeting after studying the theme and content types across several pages.

Practical Use Case: A Knowledge Base With Long Instructions

Consider a reproducible help-center setup. The site contains articles with sequential instructions: an introduction, preparation, several actions, result verification, common issues, and answers to questions. The site header is fixed, while related materials and comments appear below the text. The goal is to give visitors an indicator only while they are reading the instruction, avoid showing it in the knowledge base archive, and prevent the bar from treating the footer as part of the reading journey.

Goal and Use-Case Preparation

Choose one substantial instruction, not an archive page. It should contain enough material to make the difference between the beginning, middle, and end visible. Make sure there are genuinely blocks after the article that you do not want included in the progress calculation: cards for other articles, a form, comments, or the footer. Find the main text container in the inspector and record a possible selector. Before changing settings, take a screenshot of the page in a guest window so you can later compare not only the fill but also possible overlaps with the header.

Step-by-Step Configuration

1. Activate CodeCanyon Reading Progress Bar and confirm that its settings panel is available without errors.
2. In the assignments section, select only single instructions or another confirmed long-form content type. Do not leave assignments empty if you do not want the bar on every page.
3. Set Position to the edge that is free from the sticky header. If the top is occupied, begin with Bottom; if the bottom is clear, that choice is easier to verify.
4. Set a moderate Height, choose a base color from the site palette, and use a simple style. Add a shadow only when the line gets lost against the background.
5. Leave Custom Selector empty at first and see how far the end of the progress differs from the end of the article.
6. If the footer and related materials noticeably distort the reading path, enter the verified selector for the main container, save the settings, and repeat the test.
7. If the bar overlaps a fixed element, adjust Offset in a small increment or change the placement instead of arbitrarily raising layers throughout the theme.

Every step here has an observable outcome. The assignment should remove the line from the archive. The placement should separate it from the header. Height and color should be distinguishable without dominating. The selector should bring the end of the bar closer to the end of the instruction. If one of those outcomes does not occur, do not continue down the list. Return to the last saved setting and check the cache, published page, and assignment conditions.

Verifying the Outcome as a Regular Visitor

Open the article in a separate private window. At the beginning, confirm that the line does not cover the menu or run beyond the edge. Scroll to the middle of the second or third meaningful chapter. The bar state should match the feeling that a substantial portion of the instruction has been completed. Then continue to the conclusion, FAQ, or final practical section. If the selected container matches the content, the bar completes its path near the actual end of reading, rather than after another viewport of recommendations and the footer.

After that, open the knowledge base archive and a short utility page. The indicator should not appear there when assignments are selective. Finally, test a second long article written by another author or using another template. If its container differs, do not try to support every variation with one complex CSS selector without testing. You may need a shared template for both content types, separate assignments, or a more general container that actually exists in both cases.

Practical Uses That Keep the Bar From Becoming Decoration

After the basic implementation, avoid expanding coverage automatically. Instead, choose situations where the scroll indicator genuinely answers a visitor's question. The plugin displays the same bar in every case, but the meaning of the setup changes with the content. The examples below are not new features, but different ways to use the confirmed assignment, placement, and container-targeting options.

An Editorial Long-Form Article With Media and Callouts

For a substantial article, an editorial team may leave the progress bar attached to the entire document if photographs, quotations, and illustrations are part of the narrative. In that case, the beginning and end of the path include the media, not just bare paragraphs. It is important to test lazy-loaded images in a standard guest view. If the line behaves predictably after they load, that is a normal configuration. If the end moves far beyond the last paragraph, inspect the article container and decide whether cards displayed after it are part of the long-form piece.

A Documentation Article With a Sticky Table of Contents

A documentation page often includes a sticky table of contents, anchor links, and long instructions. Here the bar is especially useful as a second, unobtrusive reference point: the table of contents answers "where is this section," while the line answers "how far through the entire article am I?" Place the indicator along a free viewport edge and test an anchor jump. After jumping to the middle of the article, the fill should update to reflect the new position. If the sticky table of contents is at the top, you will usually need to check Position and Offset carefully.

An Article Embedded in a Marketing Page

Sometimes a long guide is embedded in a page with a hero section, benefit blocks, a form, and a footer. You should not automatically measure the whole document in that case. First decide whether the guide is an independent reading object. If it is, Custom Selector can connect the progress bar to its container. If it is not and visitors are simply scanning a landing page, the bar may be misleading: it creates an expectation of linear reading on a page designed for selective navigation. In that case, it is more sensible to skip the plugin for that template and reserve it for articles.

Post-Publication Review: Making Sure the Indicator Helps People Read

Saving the settings is not the end of implementation. The value of such a small interface element depends on how it behaves during real reading. After publishing, set up a short review path. It does not require third-party analytics, special scripts, or changes to the plugin code. Choose several pages, open them without authentication, and check the same observable points. This gives the editor more than a subjective impression of a nice-looking line; it provides a repeatable answer: does it appear on the intended materials, match the content boundaries, and stay out of the way of navigation?

A Five-Point Review Path

1. Open the start of a long article and make sure the bar is not covered by the header, notification panel, or a theme element.
2. Scroll to the first major subheading and assess whether the fill reflects the content already covered rather than the height of the cover section.
3. Move to the middle of the article using normal scrolling and an anchor link if the page has a table of contents.
4. Reach the final meaningful section and compare the indicator position with the end of the container selected for measurement.
5. Continue through related materials and the footer to understand what happens after the formal end of the article.

The final point is especially important for Custom Selector. If the intention was to measure the article, the bar should appear complete near the final content. If you left measurement set to the full document, it is expected to continue moving to the very bottom. Both behaviors are possible, but only one matches your editorial decision. Record that decision in a template note so the next author does not "fix" a deliberate configuration simply because they do not know its purpose.

Test More Than Your Own Account

An administrator often sees a page differently from a visitor. The top admin bar changes available space, cache may be bypassed for authenticated users, and some themes display editor-specific utility elements. The main test should therefore be done in a private window or another browser without signing in to WordPress. If the line disappears for guests but remains visible for an administrator, do not immediately change CSS. First check whether the assignment was saved, whether the public page meets its condition, and whether the cache is serving old HTML.

It is also useful to repeat the same review path on a second article with a different length, images, and, when applicable, a different template. One successful example proves that the plugin can work in this configuration, but it does not prove that every content type receives the same markup. If the second article behaves differently, compare not its color or paragraph count, but the container boundaries, outside blocks, and applied assignments.

Narrow Viewports Without Artificial "Mobile" Styling

The product listing claims responsive and mobile support. That is a good reason to test the indicator at a narrow width, but not a reason to assume that every theme interface will automatically avoid conflicts. Reduce the browser width, wait for the article to load fully, and repeat the review path. The header may switch modes, the menu button may become fixed, and the consent panel may take up much of the lower edge. Your test should answer three questions: is the bar visible, does it remain thin, and does it interfere with an element needed for navigation?

If the issue occurs only on a narrow screen, do not immediately edit the global height. Start by choosing the opposite edge and using the smallest possible Offset, then check whether the bar is enabled on an unsuitable template. Custom CSS makes sense only after the built-in settings have been exhausted and the conflict is consistently reproducible. Preserving a clear rollback path matters more than achieving perfect placement at one test size through a fragile, complicated formula.

What to Watch After Updating the Theme or Plugin

An update can affect more than CodeCanyon Reading Progress Bar itself. A theme may rename the article container, add a sticky block, change spacing, or rearrange recommendations. A caching plugin may start combining styles and scripts differently. After a significant update, you do not need to redo every setting, but you should repeat the short review path on one control article. Pay particular attention to Custom Selector, Position, Offset, and any custom CSS that was added.

The product itself also has a changelog. Version 2.0.3 notes a Custom Scrollbar compatibility fix, while earlier entries mention a fixed Live Preview, an Offset fix, and the addition of calculation for a specific part of the page. These details are useful diagnostic context: if you are updating an existing installation, check the areas where the product changed. However, do not turn one compatibility fix into a promise of support for every third-party script. Testing on your own page remains the primary evidence.

A Mini Configuration Record for Your Team

For a site with several editors, a short entry in internal documentation is enough. Include: which page types have the indicator enabled, where it is positioned, which Offset value is used, whether Custom Selector is empty or which container is selected, whether additional CSS exists, and where to remove it. Add the URL of one control article. This configuration card takes only a few lines, but it makes it possible to distinguish a deliberate choice from an accidental theme side effect safely.

Do not store license information, server credentials, or the contents of someone else's configurations there. The purpose of the record is to make support repeatable. When an editor reports that "the line stops in the wrong place," a specialist can open the control URL, repeat the review path, and compare the current state with the recorded assignment and container. That is faster and safer than changing site code from memory.

A Small CSS Adjustment: Change the Look Safely Without Editing Plugin Files

42Theme documentation publishes two CSS selectors: #t42-reading-progress-wrapper for the container and #t42-reading-progress for the bar itself. You can use them for a very small adjustment when the built-in color, height, shadow, and style fields are not enough. That is not a reason to edit plugin files. WordPress recommends using the standard additional CSS area in the styles interface or a child theme instead of directly changing theme files that may be replaced during an update.

For example, if the selected color needs slightly softer separation from a white site header, add only a rule for the confirmed selector to the theme's standard additional CSS field. For block themes, Additional CSS is available in the styles interface; for classic themes, the path may differ. Before pasting anything, consult your theme documentation and confirm that you are adding code in a location preserved through updates.

/* Gently separate the line from a light site header.
   Use only after checking the plugin's built-in settings. */
#t42-reading-progress-wrapper {
  box-shadow: 0 1px 8px rgba(0, 0, 0, 0.14);
}

#t42-reading-progress {
  border-radius: 0 999px 999px 0;
}

This adjustment relies on the plugin's published selectors and WordPress's standard custom CSS mechanism. Save the changes, clear the cache through the site's intended method, and test at normal and narrow viewport widths. If the line starts looking like a rounded capsule in the wrong context or the theme already provides the needed shadow, remove the entire added snippet. Rollback does not require deactivating the plugin or changing its internal files. Do not add scripts to force percentage calculations until you have identified the actual cause of a container or cache mismatch.

Troubleshooting: Why the Bar Is Missing, Covered, or Ends in the Wrong Place

A progress bar has few visible parts, so its symptoms can look the same: "it does not work." In practice, different causes can produce similar outcomes. To avoid breaking a working configuration, troubleshoot from simple to specific: activation and assignments, page freshness, placement and overlap, the measurement area, and then conflicts with dynamic scripts. Change one setting and repeat the same test on the prepared long post.

The Bar Does Not Appear on the Page

Symptom: the plugin appears in the Plugins list and is active, but there is no line on the test article. Likely cause: the selected page does not match Assignments, settings were not saved, the visitor is receiving a cached version, or the line is behind another fixed element. A less common but important cause is testing the editor preview instead of the page's normal public URL.

What to check: open the assignments section and temporarily make the rule clearly apply to one test page, or, if the documentation and interface allow it, enable broader display briefly for testing. Save the settings. Then open the published URL in a private window and clear the cache using the method your site uses. Switch Position from the top edge to the bottom edge to rule out hiding behind the header.

Fix: return to a precise assignment for the intended content type, keep the working placement, and check the guest view again. When to roll back: if temporarily broadening display puts the line on forms, catalogs, or utility pages, immediately return to the restricted assignment. Do not leave a test-wide rule active on a live site.

The Line Is Visible but Hidden Under a Header or Notification

Symptom: only part of the colored line is visible during scrolling, it is covered by a sticky menu, or it appears over the wrong element. Likely cause: that edge of the viewport is already occupied by fixed interface elements. The plugin changelog includes fixes related to z-index and offset, while the current documentation includes a dedicated Offset setting. This confirms that placement must be tested in the context of the theme rather than treated as an abstract option.

What to check: temporarily choose the opposite edge of the viewport. If the line is fully visible there, the problem is not installation or the selector. Return to the intended edge and adjust Offset in small increments, opening the page as a guest each time. Separately check the state with and without the WordPress admin bar: visitors usually do not see the top admin bar, so their experience matters more.

Fix: keep bottom placement if it feels natural for the design, or use the smallest sufficient offset. Only if the built-in settings are insufficient should you apply a small CSS adjustment to the published selector and keep it in the theme's additional CSS. When to roll back: if the changed line begins covering navigation on narrow screens, undo the last offset change and choose another edge instead of increasing layers across the entire site.

Progress Reaches the End After the Footer or Does Not Reach the Article Conclusion

Symptom: the reader reaches the end of the text while the bar is still far from complete, or the bar finishes too early. Likely cause: the wrong area is being measured. By default, the path may include every document element. On another site, the selected CSS selector may point to a block that is too short, multiple elements, or a container that excludes part of the content.

What to check: temporarily clear Custom Selector and compare behavior against the full document. Then use developer tools to select the actual article container, including exactly the elements you want to count as reading. Check the beginning, middle, final section, and the area after it. Do not test only by making one abrupt jump to the bottom.

Fix: enter a valid, stable selector for the confirmed container, or leave the field empty if the structure varies too much across materials. When to roll back: if the new selector begins producing incorrect behavior on another post, return to the last stable option and do not try to fix it with color, shadow, or height. This is a measurement-boundary problem, not an appearance problem.

Nothing Changes After You Modify Settings

Symptom: you save a color, placement, or height change, but the site still shows the old appearance. Likely cause: browser cache, an optimization plugin cache, a cached server page, or a CDN. It is also possible that theme CSS is overriding the expected appearance more strongly. Since the plugin uses CSS and JavaScript, visitors need to receive updated assets and updated page HTML.

What to check: first confirm that the setting was saved in the panel, then use the site's standard cache-clearing process. Open the URL in a private window and perform a forced refresh. If the guest page still shows the old result, temporarily remove any additional CSS you have added and compare it with the plugin settings. In developer tools, you can check whether the #t42-reading-progress-wrapper element exists; this helps distinguish missing output from a purely visual override.

Fix: establish a process: save - clear the relevant cache - check as a guest. If a custom CSS adjustment is responsible, roll it back and then add a narrower rule. When to roll back: if several conflicting rules were added while trying to "fix" the appearance, remove the latest experimental snippets and return to the built-in palette and height.

Conflict With Nonstandard Scrolling or a Dynamic Page

Symptom: the line moves in jumps, freezes after moving between blocks, or behaves differently when a smooth-scrolling script is enabled. Likely cause: another tool changes the standard scroll path, container height, or page lifecycle. The Reading Progress changelog specifically mentions a Custom Scrollbar compatibility fix, but that is not a promise of conflict-free operation with every third-party script.

What to check: reproduce the issue on one article. In a test environment, temporarily disable only the suspected feature, such as smooth scrolling or infinite loading, and repeat the same path. Do not disable every plugin on a live site without a plan. If the problem disappears, compare the placement, selector, and behavior with the feature enabled. Record the exact symptom: no fill at all, a jump after an image loads, or no update after navigation.

Fix: begin by updating the product from a verified source and clearing the cache, then limit the indicator to a more stable page type or container. If the built-in settings cannot provide reliable behavior, it is safer not to show the bar on the conflicting template than to hide the problem behind heavy custom JavaScript. When to roll back: undo the experiment if it affects navigation, reading accessibility, or the performance of the whole page.

When CodeCanyon Reading Progress Bar Is a Good Choice

This plugin is worth using when a site needs more than another bright widget: it needs a lightweight guide for extended reading. Its strength is the combination of assignments, placement, offset, height, styles, gradients, and the dedicated Custom Selector mode. As a result, you can do more than enable a line site-wide; you can align it with the content visitors are actually reading.

A safe approach looks like this: install the internal plugin ZIP through standard WordPress tools, test it on one long article, configure the assignment and a free viewport edge first, then adjust color and height, and, if needed, connect the calculation to a confirmed container. After every step, check the guest view, cache, and the end of the real text. If that approach fits your site, you can download CodeCanyon Reading Progress Bar and begin with a test article rather than global activation.
